GROVE GEAR GRL8210546.16 GRL-HMQ821-60-H1-56-16 Worm Reducer, 60:1 Ratio, 0.625 Inch I.D, 1 Inch O.D, Right Angle Cast Iron
Item: AY6ZBD
Model: GRL8210546.16
In Stock
Get it by Friday, Apr 17
£1482.23/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | HMQ-H1 |
|---|---|
| Bore Code | 16 |
| Center Distance | 2.06" |
| Frame | 56C |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Bore Size | 5/8" |
| Input Dia. | 5/8" |
| Input Hp @ 1750 Rpm | 0.674 hp |
| Input Keyway Size (c Face) | 3/16" x 3/32" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Material | Cast Iron |
| Max. Input Hp | 0.674 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
|---|---|
| Output Hp | 87/200 hp |
| Output Key Size | 1/4" x 2.5" |
| Output Rpm | 29 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Shaft Thrust Rating | 1144 |
| Output Shaft Type | Hollow Shaft |
| Output Style | H1 |
| Output Torque | 940 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GRL-HMQ-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Product Details
Shipping Information
| Height | 26.67 |
|---|---|
| Length | 27.15 |
| Width | 23.01 |
|---|---|
| Weight | 13.500000 |
Related Products
| Style | Model | max. input hp | mounting type | output torque | gear ratio | output rpm | output diameter | series | gear type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GRL8210551.23 | 2 58/125 hp | Shaft Mount | 805 lbs.-in. | - | 175 RPM | 1.438" | GR Series | Worm | 1,483.56 | |
| A | GRL8210552.23 | 1.887 hp | Shaft Mount | 897 lbs.-in. | - | 116 RPM | 1.438" | GR Series | Worm | 1,504.45 | |

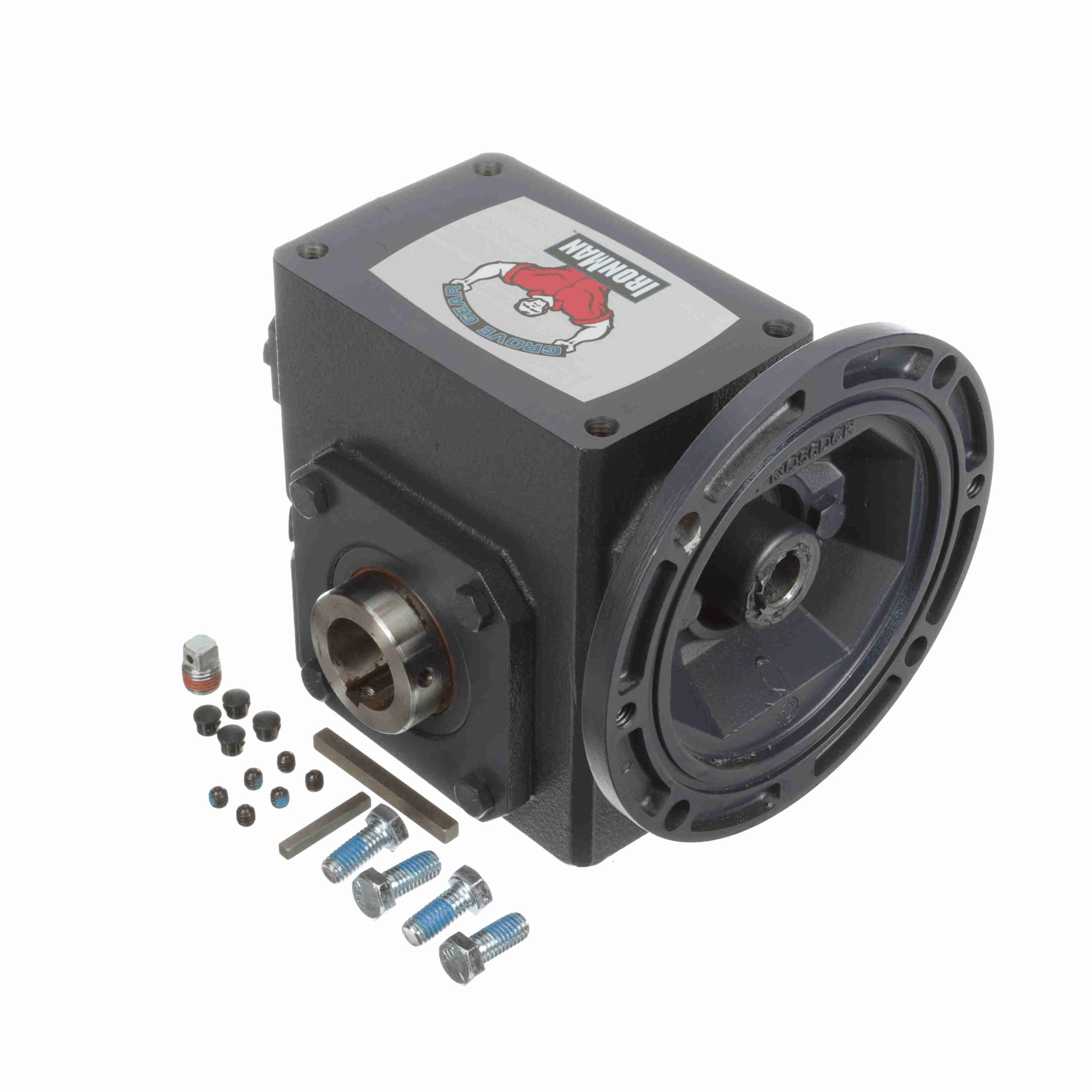

| B | GRL8210539.23 | 2.464 hp | Shaft | - | 10:1 | 175 RPM | - | - | - | 1,235.19 | |
| A | GRL8210555.19 | 1.129 hp | Shaft Mount | 968 lbs.-in. | - | 58 RPM | 1.188" | GR Series | Worm | 1,504.45 | |
| A | GRL8210540.23 | 1.887 hp | Shaft | - | 15:1 | 116 RPM | - | - | - | 1,504.45 | |
| A | GRL8210550.23 | 2.793 hp | Shaft Mount | 692 lbs.-in. | - | 233 RPM | 1.438" | GR Series | Worm | 1,504.45 | |
| A | GRL8210557.23 | 0.769 hp | Shaft Mount | 970 lbs.-in. | - | 35 RPM | 1.438" | GR Series | Worm | 1,504.45 |
