| Item | Reducer |
| Assembly | WU-R |
| Center Distance | 2.06" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 5/8" |
| Input Keyway Size | 3/16" x 1.38" |
| Input Rpm | 1750 RPM |
| Input Style | Shaft |
| Max. Input Hp | 0.674 hp |
| Mounting Type | Horizontal Base, Worm Under |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1" |
| Output Hp | 87/200 hp |
| Output Key Size | 1/4" x 1.44" |
| Output Rpm | 29 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Style | R |
| Output Torque | 940 lbs.-in. |
| Overhung Load | 1415 lbs. |

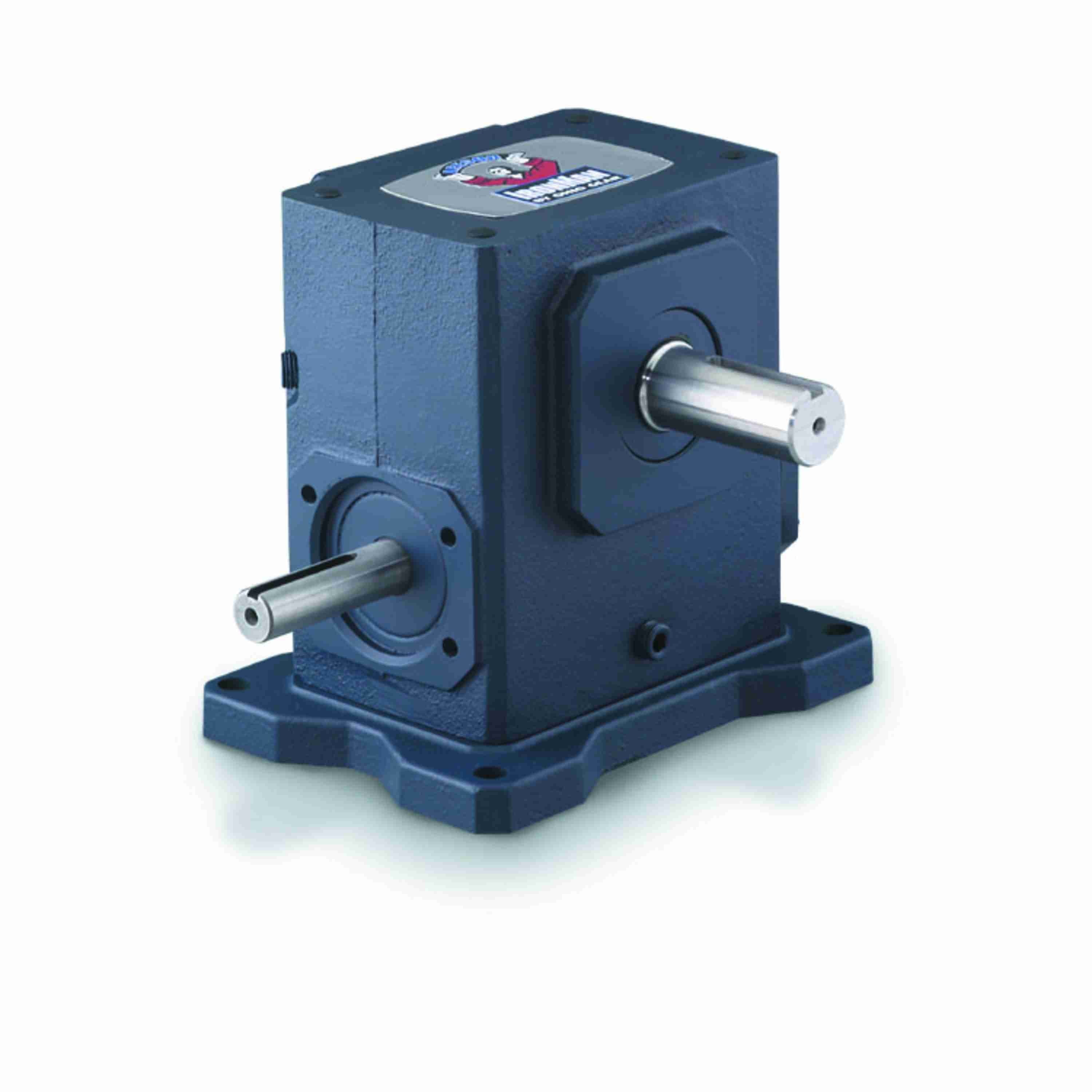

| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GRG-WU-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 26 lbs. |
| Ship weight (kg) | 11.7 |
| Model | Price | |
|---|---|---|
| GRG8215654.00 | £1,278.98 | |
| GRG8210125.00 | £895.25 | |
| GRG8210118.00 | £895.25 | |
| GRG8210113.00 | £895.25 | |
| GRG8210175.00 | £1,127.10 | |
| GRG8210117.00 | £895.25 | |
| GRG8210115.00 | £895.25 |
