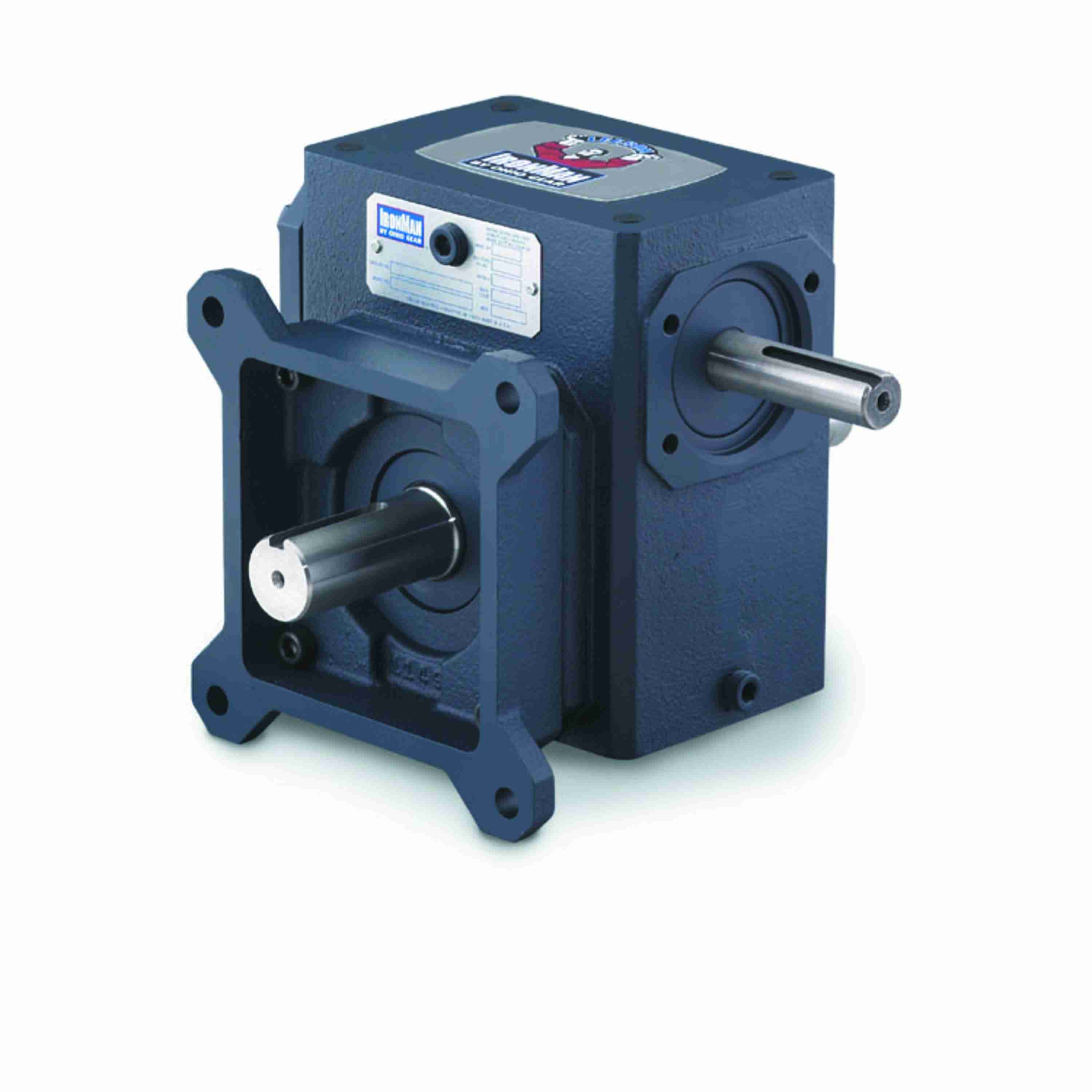

| Item | Reducer |
| Assembly | F-LL |
| Center Distance | 6" |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Dia. | 1 1/2" |
| Input Keyway Size | 3/8" x 3" |
| Input Rpm | 1750 RPM |
| Input Style | Shaft |
| Max. Input Hp | 13 3/50 hp |
| No. Of Gear Reductions | 1 |
| Output Diameter | 2 1/2" |
| Output Hp | 11.378 hp |
| Output Key Size | 5/8" x 4" |
| Output Rpm | 70 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | LL |
| Output Shaft Orientation | LL |
| Output Style | LL |
| Output Torque | 10245 lbs.-in. |
| Overhung Load | 3723 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-F-LL |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Weight | 359 lbs. |
| Ship weight (kg) | 161.55 |
| Model | Price | |
|---|---|---|
| GR8602352.00 | £5,233.24 | RFQ
|
| GR8600263.00 | £5,710.33 | |
| GR8602257.00 | £9,264.14 | RFQ
|
| GR8600582.39 | £7,486.84 | |
| GR8602309.00 | £9,264.14 | RFQ
|
| GR8600572.55 | £10,988.90 | |
| GR8600601.40 | £7,486.84 |
