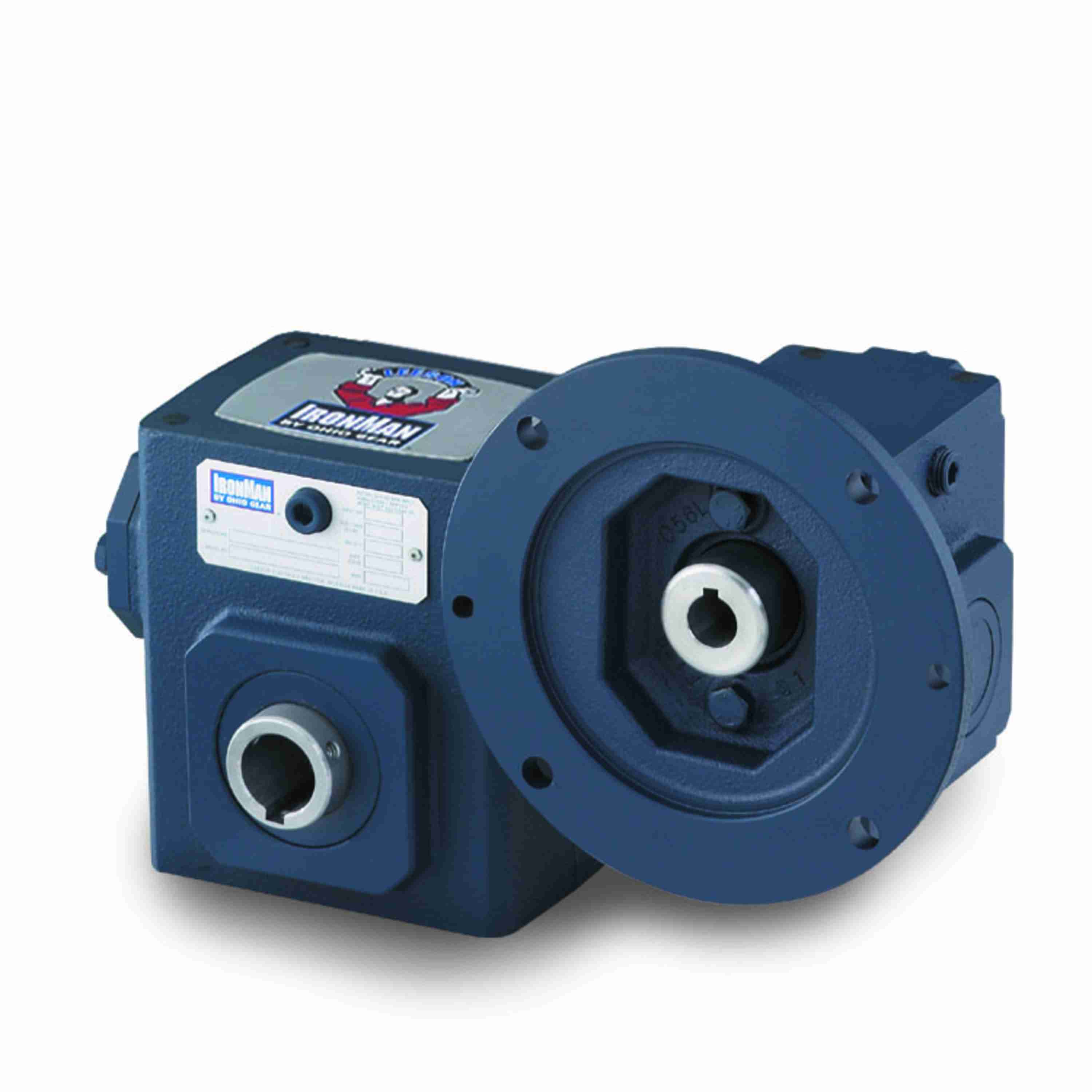

| Item | Reducer |
| Bore Code | 23 |
| Center Distance | 2.63" |
| Frame | 56C |
| Gear Type | Double Worm |
| Housing Material | Cast Iron |
| Input Quill Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Quill |
| Keyway Size | 3/16" x 3/32" |
| Max. Input Hp | 0.602 hp |
| Mounting Assembly | 1 |
| Mounting Type | Base |
| No. Of Gear Reductions | 2 |
| Output Diameter | 1.438" |
| Output Hp | 0.387 hp |
| Output Key Size | 0.375" x 0.312" x 3" |
| Output Rpm | 8.75 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | DHMQ-H11 |
| Output Torque | 2787 lbs.-in. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Double |
| Series | GR Series |
| Series Style | GR-DHMQ |
| Weight | 72 lbs. |
| Ship weight (kg) | 32.4 |
| Product | Model | Price | |
|---|---|---|---|
 |
GR8262535.23 | £1,830.52 |
