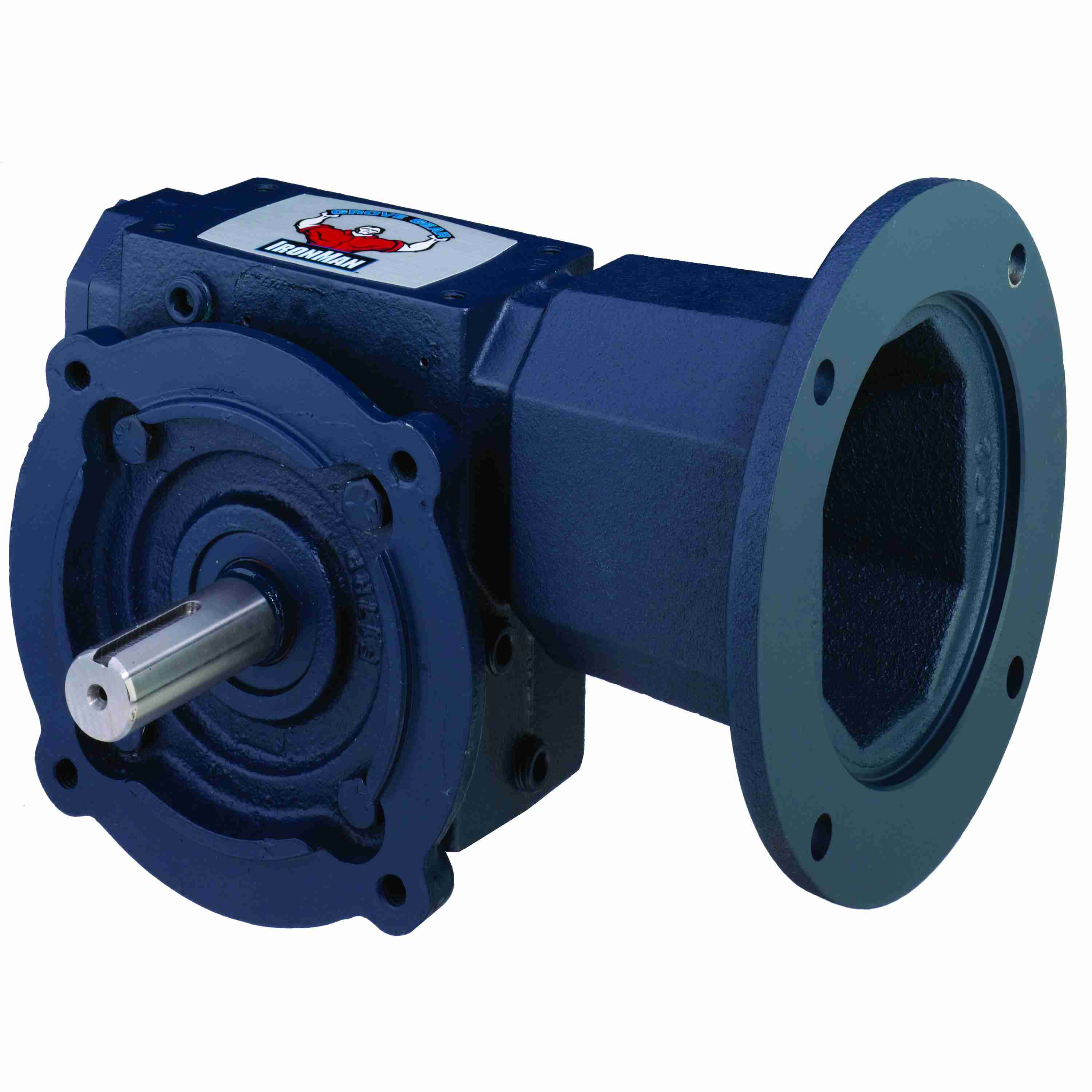

GROVE GEAR GR8131039.00 GR-CM813-10-L-56 Worm Reducer, 10:1 Ratio, 0.625 Inch I.D, 0.625 Inch O.D, Cast Iron
Item: AY8HVH
Model: GR8131039.00
In Stock
Get it by Wednesday, Apr 15
£667.04/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | CM-R |
|---|---|
| Center Distance | 1.33" |
| Frame | 56C |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Input Bore (c Face) | 5/8" |
| Input Dia. | 5/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Max. Input Hp | 0.823 hp |
| No. Of Gear Reductions | 1 |
| Output Diameter | 5/8" |
| Output Hp | 0.729 hp |
| Output Rpm | 175 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | L |
|---|---|
| Output Shaft Direction | Left |
| Output Shaft Orientation | L |
| Output Style | L |
| Output Torque | 263 lbs.-in. |
| Overhung Load | 700 lbs. |
| Product Line | GR Series - Ironman Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | GR Series |
| Series Style | GR-CM-L |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Thread Type | Coarse |
Product Details
Reducer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 10.800000 |
Related Products
| Style | Model | max. input hp | output torque | output rpm | assembly | series | gear type | center distance | input style | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GR8131037.00 | 1 31/125 hp | 209 lbs.-in. | 350 RPM | CM-L | GR Series | Worm | 1.33" | C Face Coupled | 555.87 |
