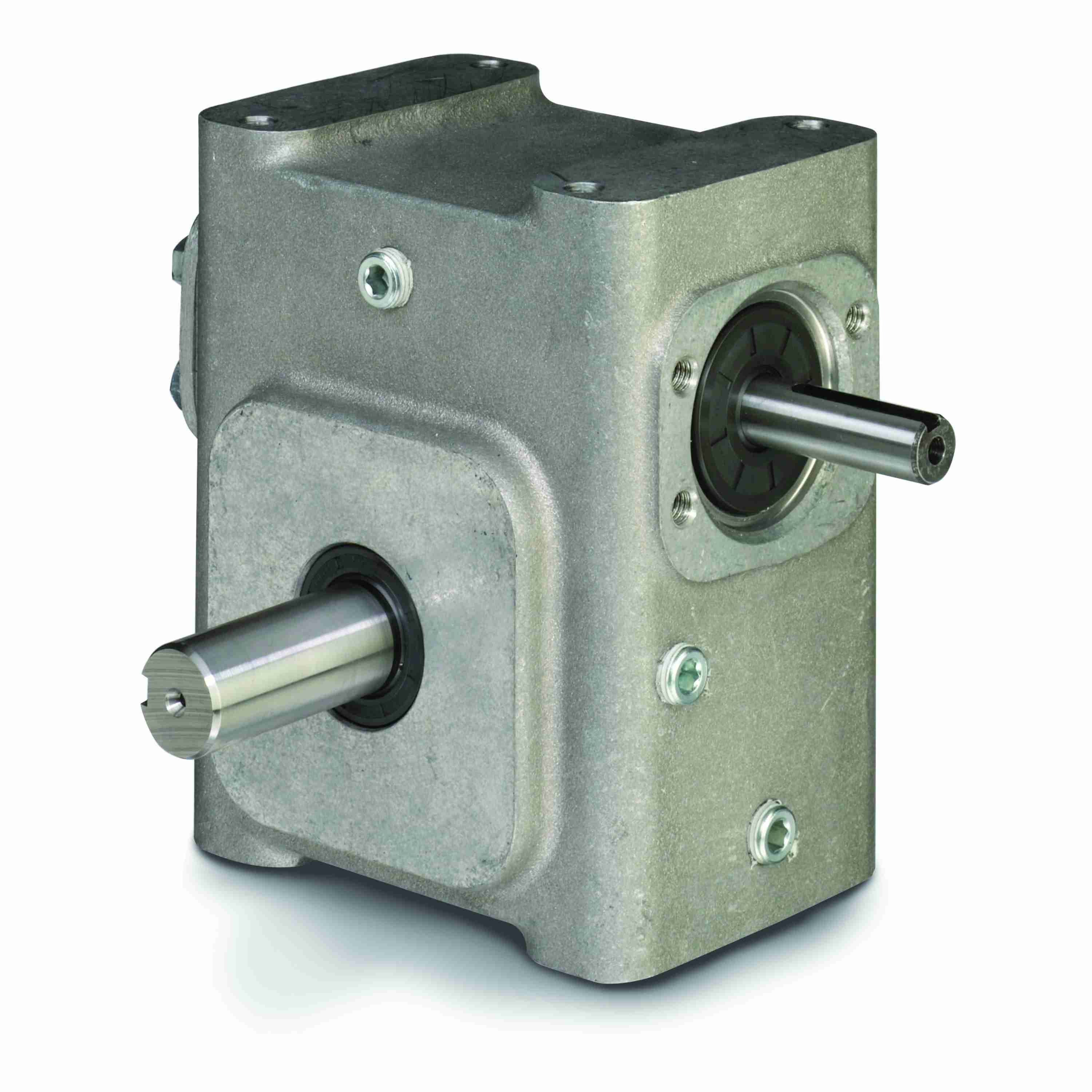

| Item | Reducer |
| Assembly | B-R |
| Center Distance | 3 1/4" |
| Gear Type | Worm |
| Gearbox Type | Worm |
| Housing Material | Aluminum |
| Input Bore Size | 7/8" |
| Input Dia. | 7/8" |
| Input Hp @ 1750 Rpm | 1 3/100 hp |
| Input Keyway Size | 3/16" x 1.63" |
| Input Rpm | 1750 RPM |
| Input Style | Solid Shaft |
| Input Type | Solid Shaft |
| Material | Aluminum |
| Max Input Hp | 1 3/100 hp |
| Max. Input Hp | 1 3/100 hp |
| Mounting Type | Base |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1 5/8" |
| Output Hp | 0.695 hp |
| Output Key Size | 3/8" x 2 1/4" |
| Output Rpm | 21 RPM |
| Output Shaft | Shaft |
| Output Shaft Assembly Code | R |
| Output Shaft Dia. | 1 5/8" |
| Output Shaft Direction | Right |
| Output Shaft Orientation | R |
| Output Shaft Thrust Rating | 2574 |
| Output Shaft Type | Right Handed Shaft |
| Output Style | R |
| Output Torque | 2000 lbs.-in. |
| Overhung Load | 2275 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-B-R |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
| Ships Factory Direct | No |
| Tap Depth | 1" |
| Tap Size | 1/2"-13 |
| Weight | 47 lbs. |
| Ship weight (kg) | 21.15 |
| Ship height (cm) | 38.1 |
| Ship length (cm) | 49.23 |
| Ship width (cm) | 38.43 |
| Model | Price | |
|---|---|---|
| EL8320009.00 | £2,565.72 | |
| EL8320104.00 | £2,565.72 | |
| EL8320014.00 | £2,565.72 | |
| EL8320015.00 | £2,565.72 |
