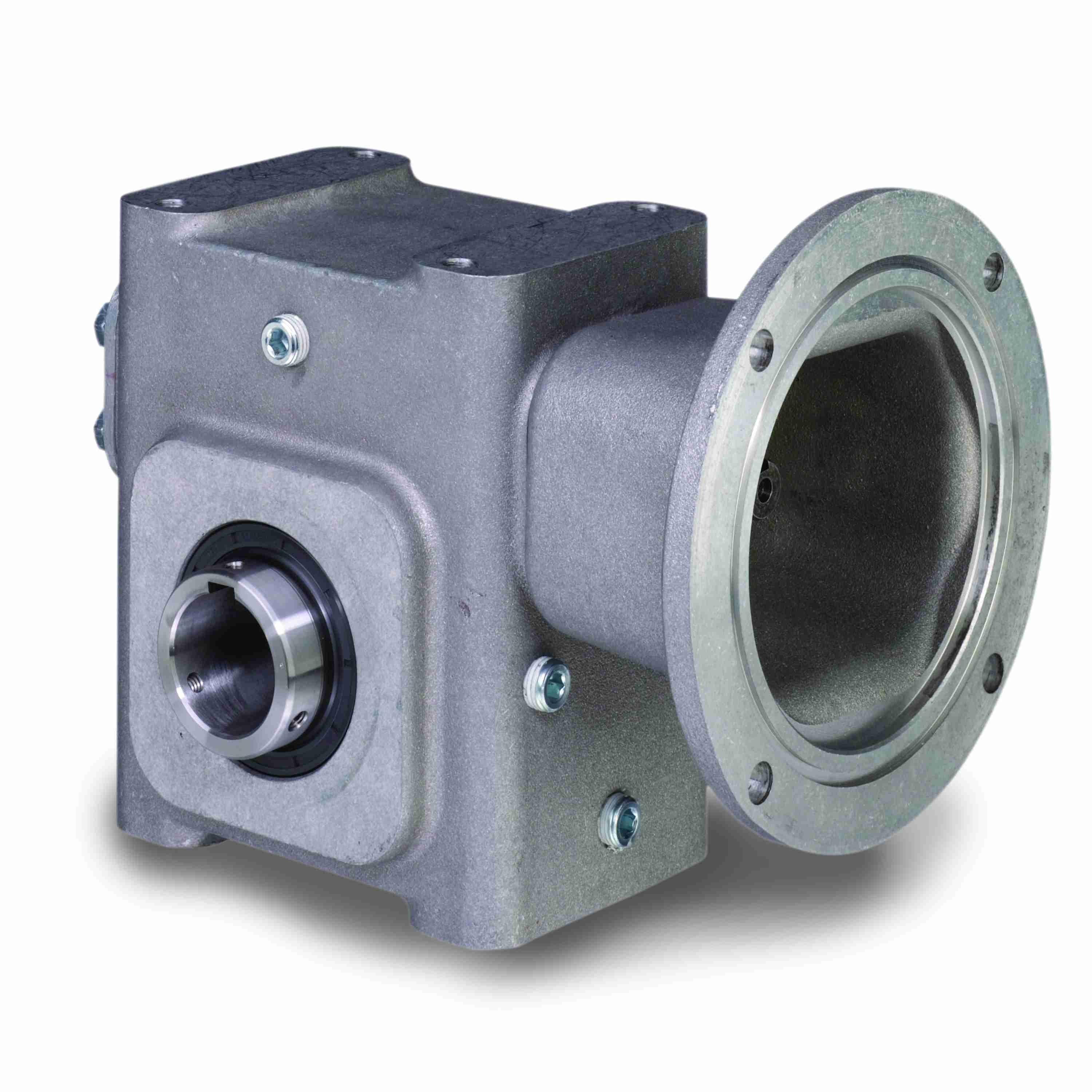

GROVE GEAR EL8260528.23 EL-HM826-15-H1-140-23 Worm Reducer, 15:1 Ratio, 0.875 Inch I.D, 1.438 Inch O.D, Aluminum
Item: AX9JYY
Model: EL8260528.23
In Stock
Get it by Thursday, Apr 16
£1569.41/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | HM-H1 |
|---|---|
| Bore Code | 23 |
| Center Distance | 2.63" |
| Frame | 140TC |
| Gear Type | Worm |
| Housing Material | Aluminum |
| Input Bore (c Face) | 7/8" |
| Input Dia. | 7/8" |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Max. Input Hp | 3.614 hp |
| Mounting Type | Shaft Mount |
| No. Of Gear Reductions | 1 |
| Output Diameter | 1.438" |
| Output Hp | 3 27/125 hp |
|---|---|
| Output Rpm | 116 RPM |
| Output Shaft | Hollow Bore |
| Output Shaft Assembly Code | H1 |
| Output Shaft Orientation | H1 |
| Output Style | H1 |
| Output Torque | 1737 lbs.-in. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reduction Type | Single |
| Series | EL Series |
| Series Style | EL-HM-H1 |
| Service Factor | 1 |
| Shaft Seal Material | Viton |
Product Details
Reducer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 10.800000 |
