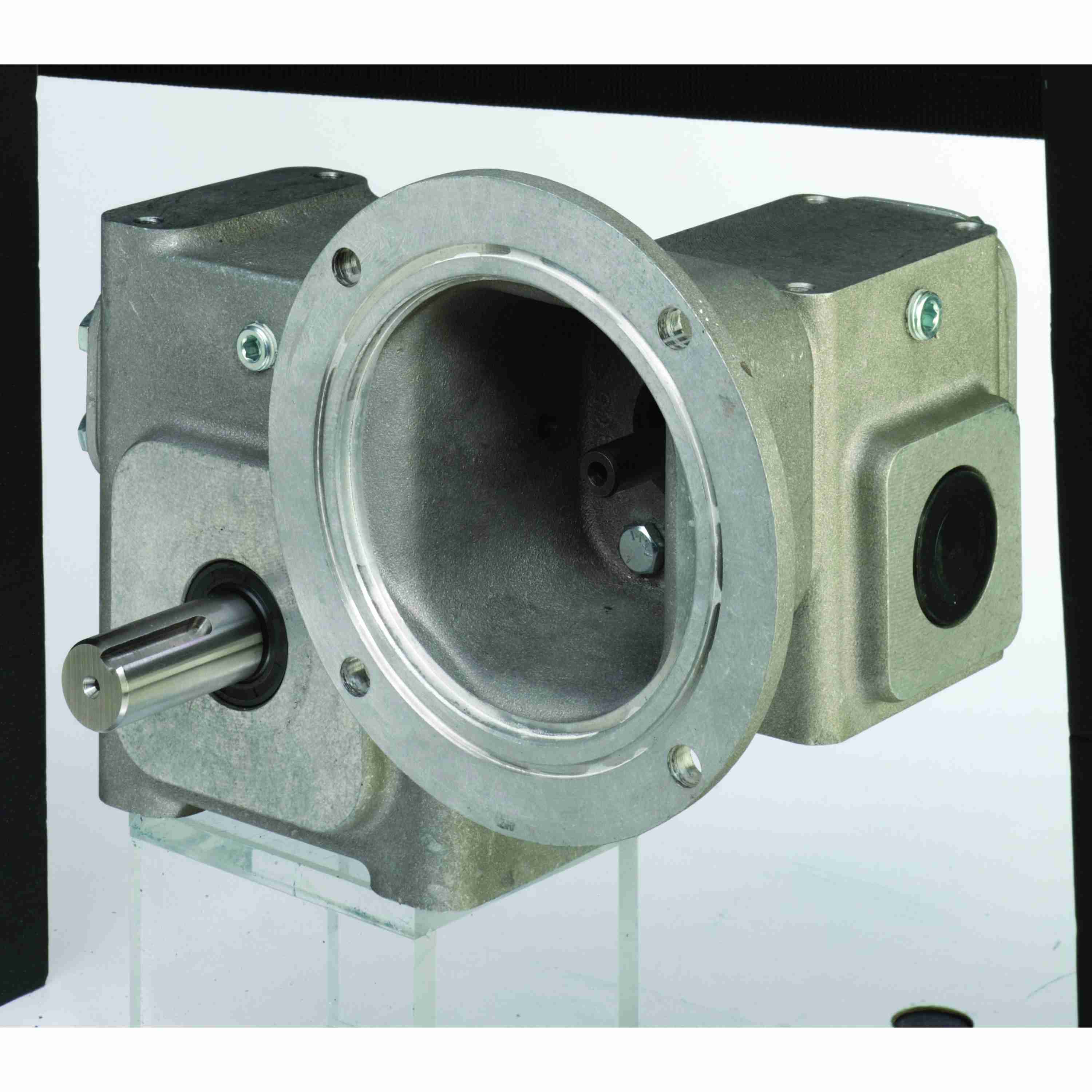

GROVE GEAR EL8212056.00 EL-DM821-300-R1-56 Double Reduction Reducer, 300:1 Ratio, 1 Inch Output Diameter, Aluminum
Item: AX8ZCH
Model: EL8212056.00
In Stock
Get it by Wednesday, Apr 15
£2602.91/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Assembly | DM |
|---|---|
| Center Distance | 2.06" |
| Frame | 56C |
| Gear Type | Double Worm |
| Housing Material | Aluminum |
| Input Rpm | 1750 RPM |
| Input Style | C Face Coupled |
| Max. Input Hp | 0.222 hp |
| No. Of Gear Reductions | 2 |
| Output Diameter | 1" |
| Output Hp | 16/125 hp |
| Output Rpm | 5.83 RPM |
|---|---|
| Output Shaft | Shaft |
| Output Shaft Orientation | R1 |
| Output Torque | 1392 lbs.-in. |
| Overhung Load | 1175 lbs. |
| Product Line | EL Series - Aluminum Worm Gear Reducers |
| Reducer | Worm - Right Angle |
| Reducer Style | DM |
| Reduction Type | Double |
| Series | EL Series |
| Tap Depth | 0.87" |
Product Details
Reducer
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 15.300000 |
