FINISH THOMPSON

See our 858 reviews on trustpilot

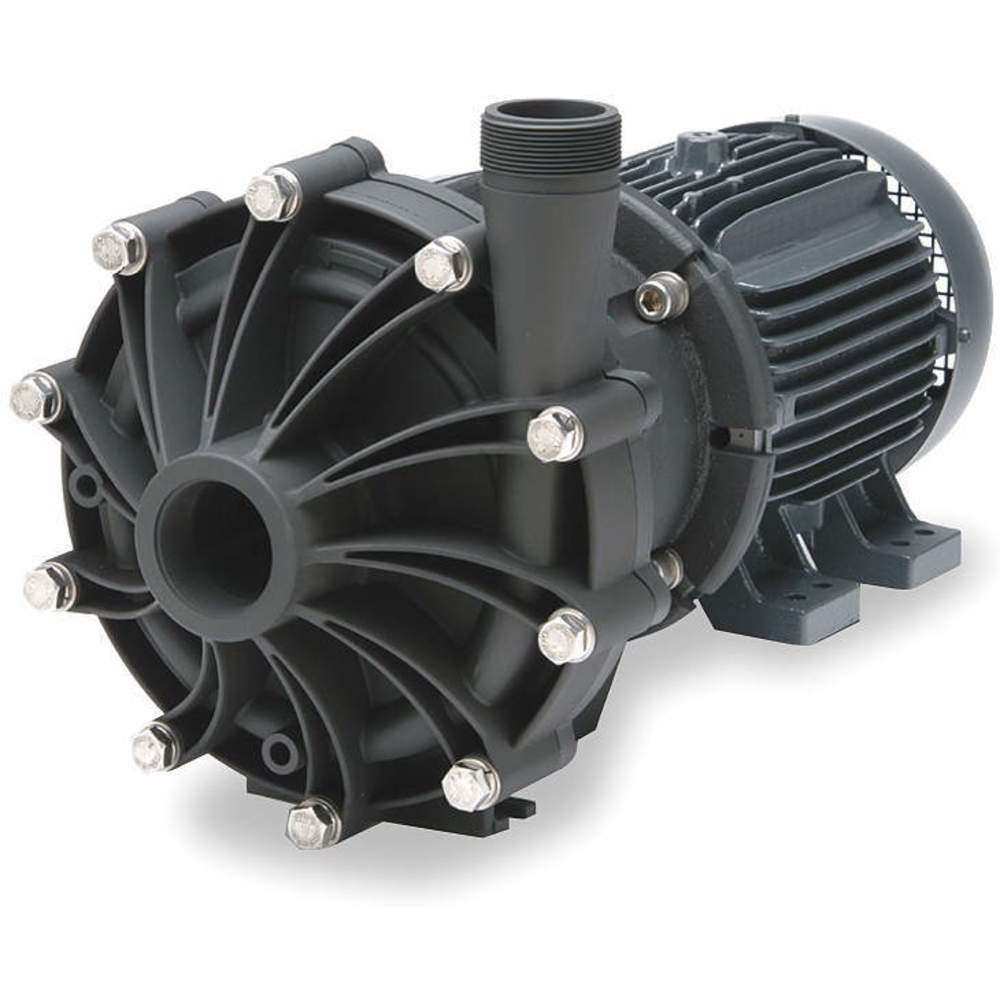

FINISH THOMPSON DB22V-3-T-21-M239 Pump Magnetic Drive 10 Hp 208-230/460v

Item: AC8KWW
Model: DB22V-3-T-21-M239
In Stock

Get it by Thursday, Apr 16

£9426.74
5.00% off
£8955.41/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amps 11.7/23.4-25.9A
Application Acids, Di Water, Plating Solutions, Sodium Hypochlorite
Bearing Type Thrust, Radial
Bushing Material PTFE
Chemical Compatibility Deionized Water
Compatible Chemicals Deionized Water
Design Centrifugal
Discharge Pipe Size 2"
Discharge Pipe Type MNPT
Discharge Port Size 2"
Discharge Port Type MNPT
Feet Of Head (maximum) 201 ft.
Flow Rate @ 1 Ft. 202 GPM
Flow Rate @ 15 Ft Of Head (maximum) 202 GPM
Flow Rate @ 18 Ft Of Head (maximum) 202 GPM
Flow Rate @ 18 Ft. 202 GPM
Flow Rate @ 24 Ft Of Head (maximum) 202 GPM
Flow Rate @ 24 Ft. 202 GPM
Flow Rate @ 3 Ft Of Head (maximum) 202 GPM
Flow Rate @ 3 Ft. 202 GPM
Flow Rate @ 40 Ft Of Head (maximum) 202 GPM
Flow Rate @ 40 Ft. 202 GPM
Flow Rate @ 50 Ft Of Head (maximum) 202 GPM
Flow Rate @ 50 Ft. 202 GPM
Flow Rate @ 6 Ft Of Head (maximum) 202 GPM
Flow Rate @ 6 Ft. 202 GPM
Flow Rate @ 9 Ft Of Head (maximum) 202 GPM
Flow Rate @ 9 Ft. 202 GPM
Full Load Current 25.9-23.4/11.7A
Gasket Material Viton
Height 13 2/5"
Horsepower (maximum) 10 hp
Housing Material PVDF
Hp 10 hp
Impeller Material PVDF
Inlet Size 2"
Inlet Type FNPT
Intake Pipe Size 2"
Intake Pipe Type FNPT
Length 28 1/2"
Manufacturers Warranty Length 5 yrs.
Max. Discharge Pressure 68 psi
Max. Flow Rate @ 15 Ft. 202 GPM
Max. Flow Rate @ 50 Ft Of Head 202 GPM
Max. Fluid Temp. 220°F
Max. Head 158 ft.
Max. Operating Pressure 90 psi
Max. Outlet Pressure 68 psi
Max. Specific Gravity 1.8
Max. Viscosity 100 cPS
Motor Enclosure Design Totally Enclosed Fan Cooled
Motor Mounting Type Horizontal
Motor Speed (maximum) 3450 RPM
Motor Type Induction
Mounting Horizontal
Mounting Location Open Air
Mounting Orientation Horizontal
Operating Pressure 68 psi
Operating Pressure (maximum) 68 psi
Outlet Size 2"
Outlet Type MNPT
Overall Height 13 2/5"
Overall Length 28 1/2"
Overall Width 14.3"
Phase 3
Priming Manual
Product Datasheet finish-thompson-db10p-m218.pdf
Rpm 3450 RPM
Self Priming Manual
Series DB22 Series
Specific Gravity 1.8
Suction Port 2" FNPT
Temp (f) @ 0 Psig 220°F
Temp (f) @ 10 Psig 220°F
Temp (f) @ 20 Psig 220°F
Temp (f) @ 30 Psig 220°F
Type Straight
Viscosity (maximum) 100 cPS
Voltage 208-230/460V AC
Warranty 5 yrs.
Width 14.3"

Product Details

Shipping Information

Height 43.18
Length 78.74
Width 50.8
HS Code 8413810040
Country Of Origin US
Weight 114.750000
