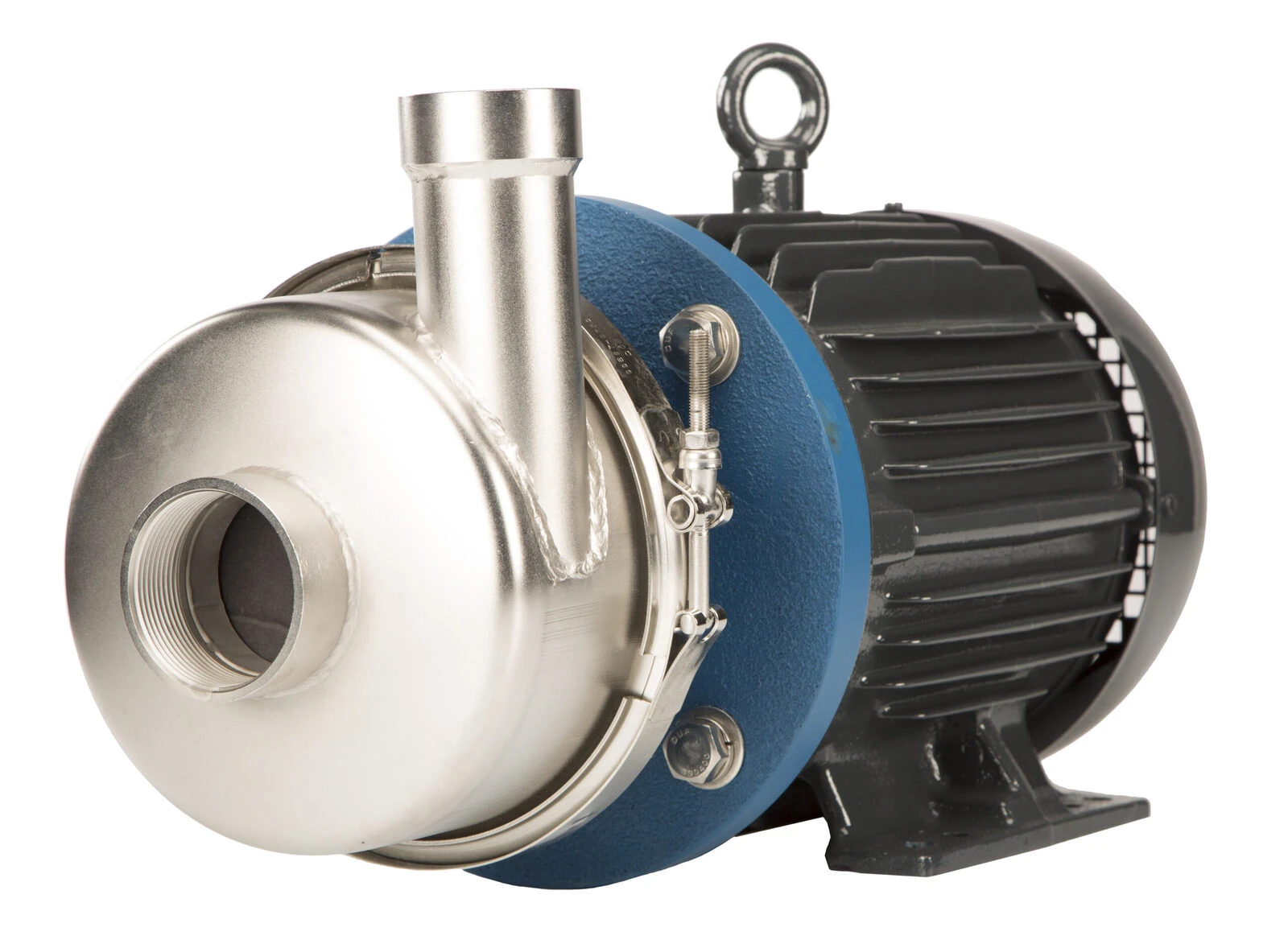

FINISH THOMPSON AC6H AC Sealed Pumps Sealed Pump, 3 to 100 gpm Flow Range, 100 psi Maximum Working Pressure

Item: DZ2LJL
Model: AC6H
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Configuration Horizontal
Connection Type NPT, BSP, Tri-Clamp
Construction Materials Stainless Steel
Flow Range 3-100 GPM
Grade Grade 316
Maximum Head 144.1 ft.
Maximum Specific Gravity 0 to 1.8
Maximum Temperature 300°F
Maximum Working Pressure 100 psi
O-ring Material FKM, EPDM, Buna, PTFE Encapsulated Silicone
Port Size(suction X Discharge) 1 1/4" x 3/4", 1 1/4" x 3/4", 1 1/2" x 1"
Power Range 2/1 hp to 14/5 hp
Product Datasheet finish-thompson-ac4.pdf
Seal Materials Carbon, Ceramic, SIC, FKM, EPDM, Buna, Kalrez
Seal Type Bellows Type 21
Type Stainless Steel Mechanically Sealed High Head

Product Details

Shipping Information

Country Of Origin US
