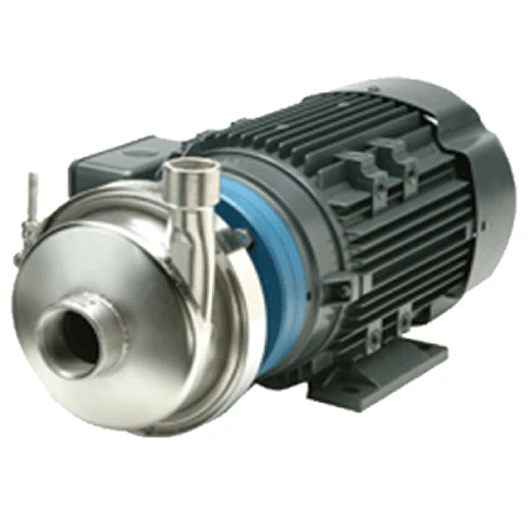

FINISH THOMPSON AC5H AC Sealed Pumps Sealed Pump, 2 to 16.9 gpm Flow Range, 100 psi Maximum Working Pressure

Item: DZ2LJH
Model: AC5H
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Configuration Horizontal
Connection Type NPT Threaded Connections, BSP Threaded Connections, NPT Electropolished Threaded Connections, Ansi #150 Flanges Electropolished Tri-Clamps
Construction Materials Stainless Steel
Flow Range 2-16.9 GPM
Grade Grade 316
Maximum Head 96 ft.
Maximum Specific Gravity 0 to 1.8
Maximum Temperature 300°F
Maximum Working Pressure 100 psi
O-ring Material FKM, EPDM, Buna, PTFE Encapsulated Silicone
Port Size(suction X Discharge) 1/2" x 1/4", 1/2" x 1/4", 1/2 x 1/4, 1" x 1", 1 1/2" x 3/4"
Power Range 41/100 hp to 57/100 hp
Product Datasheet finish-thompson-ac4.pdf
Seal Materials Carbon, Ceramic, SIC, FKM, EPDM, Buna, Kalrez
Seal Type Bellows Type 21
Type Stainless Steel Mechanically Sealed High Head

Product Details

Shipping Information

Country Of Origin US
