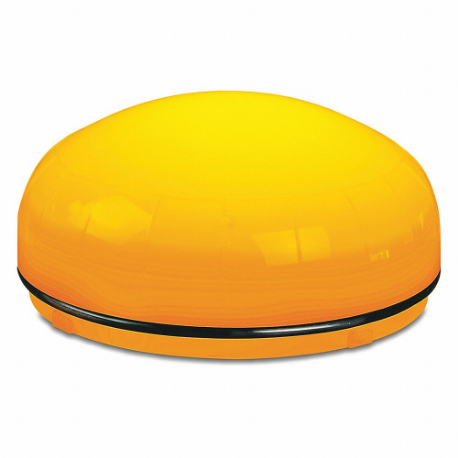

FEDERAL SIGNAL SLM300A Beacon Warning Light, Amber, LED, 12 to 24VAC/DC or 120 to 240VAC, Varies, Opaque
Item: CP4YMG
Model: SLM300A
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹249.370000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Drawn | 55-300 mA |
|---|---|
| Color | Amber |
| Control Protocol | Direct Wire |
| Depth | 3.906" |
| Dia. | 3 29/32" |
| Diameter | 3 29/32" , 3.906" |
| Enclosure Rating | Type 4X, IP66, IP69K |
| Environmental Rating | Ordinary Location |
| Flashes Per Minute | 85/120 FPM |
| Footprint Diameter | 3 7/8" |
| Footprint Shape | Circle |
| For Location | Outdoor |
| Height | 1.672" |
| Housing Color | Gray Red |
| Housing Material | Polycarbonate |
| Includes | Slm Top Module |
| Includes Mounting Hardware | Mounting Hardware Included |
| Ip Rating | IP66, IP69K |
| Lamp Life | 50000 hrs. |
| Lamp Life Hours | 100000 hrs. |
| Lens Color | Amber |
| Lens Design | Opaque |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 100000 hrs. |
| Light Operating Mode | Strobe, Flashing, Steady |
|---|---|
| Light Output | Varies |
| Light Source | LED |
| Mounting Location | Pole Mount, Wall Mount |
| Mounting Style | Surface Mount |
| Mounting Type | Deep, Dual, Pipe, Shallow, Twin |
| Nema Rating | NEMA 4X |
| Operating Current | 0.075A @ 240V AC, 0.1A @ 120V AC, 0.155A @ 24V AC, 0.155A @ 24V DC, 0.25A @ 12V AC, 0.25A @ 12V DC |
| Operating Current (amps) | 250 @ 12V DC, 155 @ 24V DC, 250 @12V AC, 155 @ 24V AC, 100 @ 120V AC, 75 @ 240V AC |
| Operating Temp. | -22°F to +122°F |
| Operating Temperature - Maximum | 131°F |
| Operating Temperature - Minimum | -40°F |
| Operating Voltage | 12-24V AC/DC/120-240V AC |
| Overall Diameter | 3 29/32" |
| Overall Height | 1 21/32" |
| Power Source | Wire |
| Product Type | Warning Light |
| Rating | IP66, NEMA 4X |
| Requires Base | Base Required |
| Standard Logo | ce.png,cul.png,rohs.png,ul.png |
| Voltage | 12-24V AC/DC/120-240V AC |
| Warranty | 5 yrs. |
| Width | 3.906" |
| standard | CE, CUL LISTED, UKCA, UL LISTED |
Product Details
Warning Light
Shipping Information
| height | 4.25 |
|---|---|
| length | 9.92 |
| width | 9.92 |
| country of origin | IT |
|---|---|
| weight | 0.067500 |
Related Products
| Style | Model | Lens Color | Diameter | Light Source | Voltage | Height | Flashes Per Minute | Power Source | Operating Temp. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

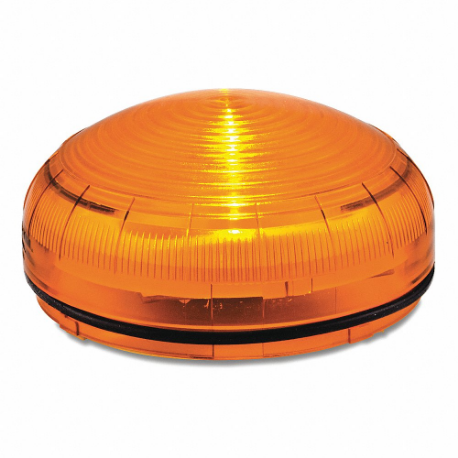

| A | SLM350A | Amber | 3.906" | LED | 12-24V AC/DC/120-240V AC | 1.672" | 85/120 FPM | Wire | -22°F to +122°F | 263.96 | |
| B | SLM350B | Blue | 3.906" | LED | 12-24V AC/DC/120-240V AC | 1.672" | 85/120 FPM | Wire | -22°F to +122°F | 263.96 | |

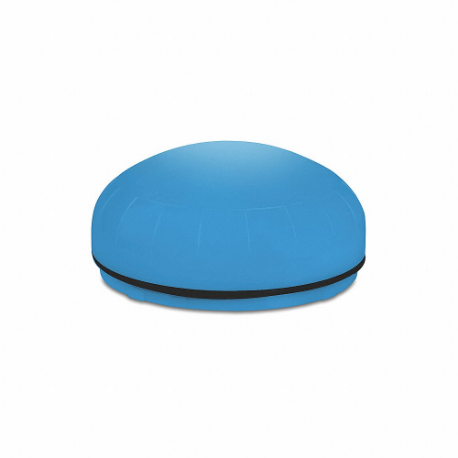

| C | SLM300B | Blue | 3.906" | LED | 12-24V AC/DC/120-240V AC | 1.672" | 85/120 FPM | Wire | -22°F to +122°F | 249.37 | |

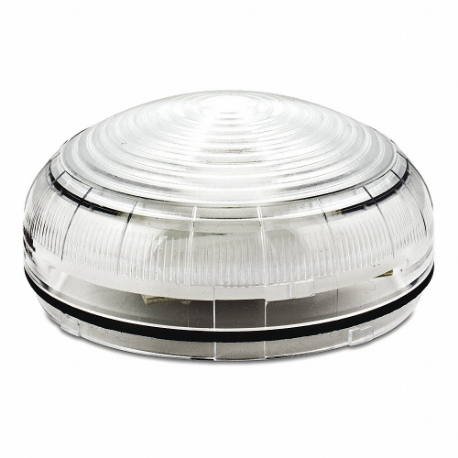

| D | SLM350C | Clear | 3.906" | LED | 12-24V AC/DC/120-240V AC | 1.672" | 85/120 FPM | Wire | -22°F to +122°F | 263.96 | |

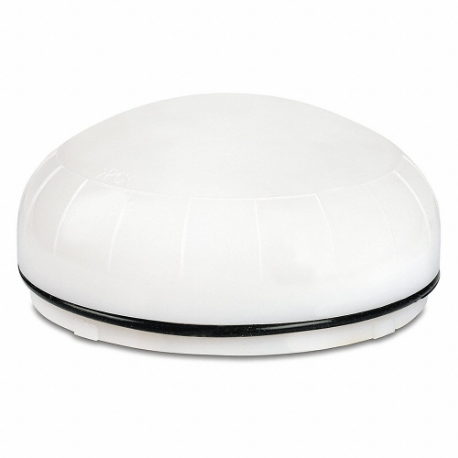

| E | SLM300C | Clear | 3.906" | LED | 12-24V AC/DC/120-240V AC | 1.672" | 85/120 FPM | Wire | -22°F to +122°F | 249.37 | |

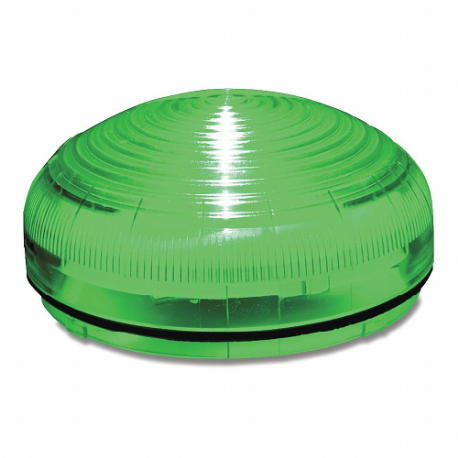

| F | SLM350G | Green | 3.906" | LED | 12-24V AC/DC/120-240V AC | 1.672" | 85/120 FPM | Wire | -22°F to +122°F | 263.96 | |

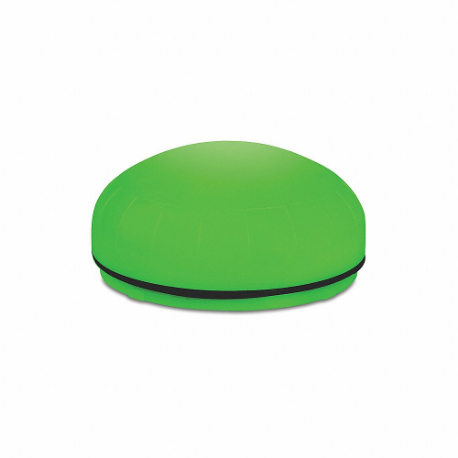

| G | SLM300G | Green | 3.906" | LED | 12-24V AC/DC/120-240V AC | 1.672" | 85/120 FPM | Wire | -22°F to +122°F | 249.37 |
