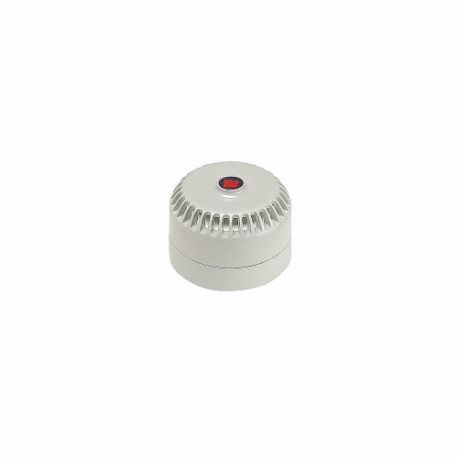

FEDERAL SIGNAL LP4-09-028 Low Profile Mini Sounder, 9 to 28V DC, Indoor/Outdoor, Surface, 3 Inch Height
Item: CP4YEG
Model: LP4-09-028
26 In Stock
Ships within 2 days via
5.00% off
£155.39/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Alarm Volume @ 1 M - Maximum | 110 dBA |
|---|---|
| Alarm Volume @ 1 M - Minimum | 92 dB |
| Alarm Volume @ 10 Ft - Maximum | 100 dB |
| Alarm Volume @ 10 Ft - Minimum | 82 dB |
| Amps | 4-33 mA |
| Audible Alarm Type | Siren |
| Color | White |
| Connection Type | Terminal Block |
| Depth | 1 7/8" |
| Diameter | 3 5/8" |
| Enclosure Rating | IP54, IP65 |
| Environmental Rating | Ordinary Location |
| Features | Plc Compatible, Remote Activation Upto Two Tones |
| For Location | Indoor/Outdoor |
| Height | 3" |
| Housing Material | ABS |
| Indoor/outdoor | Indoor/Outdoor |
| Ip Rating | IP54, IP65 |
| Material | ABS |
| Mounting | Surface |
| Mounting Location | Wall Mount |
| Mounting Style | Surface Mount |
| Nema Rating | NEMA 4X |
| Number Of Sound Patterns | 32 |
|---|---|
| Operating Current | 0.004-0.033A |
| Operating Current (amps) | 0.004-0.033A |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operating Voltage | 9-28V DC |
| Overall Depth | 3" |
| Overall Diameter | 3 11/16" |
| Power Source | Wire |
| Product Type | Horn |
| Rating | NEMA 4X |
| Sound Continuity | Continuous |
| Sound Pattern | Continuous |
| Sound Style | Siren |
| Vibrating | No |
| Vibration | No Vibration |
| Visual Indicator Type | No Visual Indicator |
| Voltage | 9-28V DC |
| Volume Selection | Selectable Volume |
| Warranty | 5 yrs. |
| Width | 3 5/8" |
| standard | CE, UKCA |
Product Details
Shipping Information
| Height | 7.62 |
|---|---|
| Length | 4.76 |
| Width | 9.21 |
| Country Of Origin | UK |
|---|---|
| Weight | 0.270000 |
