FEDERAL SIGNAL LP3M-120B Low Profile Warning Light, Blue, Strobe Tube, 120V AC, 2.2 Joules, 7000 hr Lamp Life
Item: CP4YKL
Model: LP3M-120B
12 In Stock
Ships within 2 days via
Blue
1/2" NPT Male Pipe
120VAC
5.00% off
£206/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Amps Drawn | 0.1A |
|---|---|
| Brightness Selection | Fixed Brightness |
| Color | Blue |
| Connection Type | Wire Leads |
| Control Protocol | Direct Wire |
| Diameter | 3 1/8" |
| Enclosure Rating | Type 4X, IP66, IP69K |
| Environmental Rating | Ordinary Location |
| Flashes Per Minute | 80 FPM |
| Footprint Diameter | 3 1/8" |
| Footprint Shape | Circle |
| Height | 5.812" |
| Housing Color | Black |
| Housing Material | Polycarbonate |
| Includes Mounting Hardware | Mounting Hardware Included |
| Ip Rating | IP66, IP69K |
| Lamp Life | 7000 hrs. |
| Lamp Type | Strobe Tube |
| Lens Color | Blue |
| Lens Design | Screw On Dome |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Lifespan | 4000 hrs. |
| Light Intensity | 175000 cd |
| Light Operating Mode | Strobe |
|---|---|
| Light Source | Strobe |
| Mounting Location | Threaded Mount |
| Mounting Mechanism | 1/2" MNPT |
| Mounting Size | 1/2" |
| Mounting Style | Flush Mount |
| Mounting Thread Size | 1/2" MNPT |
| Mounting Type | MNPT |
| Nema Rating | NEMA 4X |
| Operating Current | 0.100A @ 120V AC |
| Operating Temp. | -31°F to +150°F |
| Operating Temperature - Maximum | 150°F |
| Operating Temperature - Minimum | -31°F |
| Operating Voltage | 120V AC |
| Overall Height | 5 13/16" |
| Power Source | Wire |
| Product Type | Strobe Light |
| Rating | IP66, NEMA 4X |
| Requires Base | Base Required |
| Standard Logo | csa.png,cul.png,ul.png |
| Voltage | 120V AC |
| Warranty | 5 yrs. |
| standard | CE, CSA CERTIFIED, CUL LISTED, UKCA, UL LISTED |
Product Details
Warning Light
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.310500 |
Related Products
| Style | Model | Lens Color | Height | Voltage | Rating | Amps Drawn | Mounting Type | Diameter | Flashes Per Minute | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | LP3S-120G | Green | 5" | - | 4X, IP66 | 0.1A | Surface | 3 1/8" | 80 FPM | 189.75 | |
| A | LP3S-120R | Red | 5" | - | 4X, IP66 | 0.1A | Surface | 3 1/8" | 80 FPM | 175.11 | |
| A | LP3P-012-048A | Amber | 5 3/4" | - | IP66, NEMA 4X | 0.1-0.44A | FNPT | 3 1/8" | 80 FPM | 184.48 | |

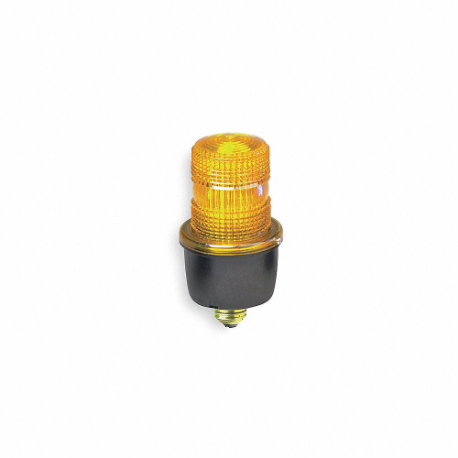

| B | LP3E-120A | Amber | 6 1/8" | 120V AC | NEMA 3R | 0.1A | Screw In | 3 1/8" | 80 FPM | 206.41 | |

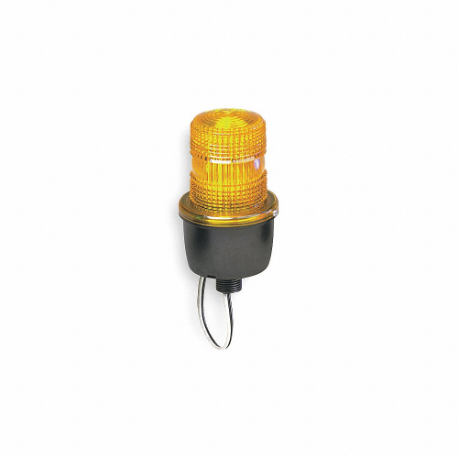

| C | LP3M-120A | Amber | 5.812" | 120V AC | IP66, NEMA 4X | 0.1A | MNPT | 3 1/8" | 80 FPM | 169.21 | |
| A | LP3P-120B | Blue | 5 3/4" | 120V AC | IP66, NEMA 4X | 0.1A | FNPT | 3 1/8" | 80 FPM | 179.40 | |
| D | LP3M-120G | Green | 5.812" | 120V AC | IP66, NEMA 4X | 0.1A | MNPT | 3 1/8" | 80 FPM | 169.21 |
