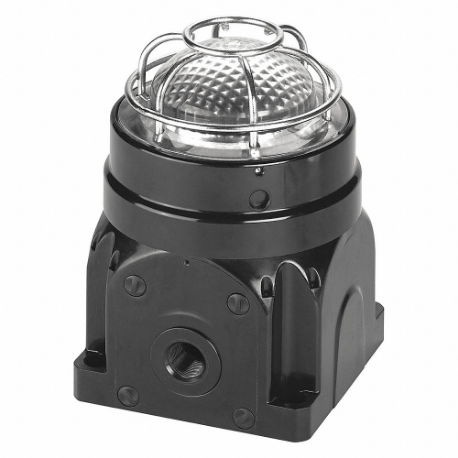

FEDERAL SIGNAL G-LED-AC-D-C Beacon Warning Light, Clear, LED, 120 to 240VAC, 400 Lumens, 50000 hr Lamp Life

Item: CP4YMZ
Model: G-LED-AC-D-C
10 In Stock

Ships within 2 days via

Clear
120-240VAC
Surface
£1395.16
5.00% off
£1325.4/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amps Drawn 0.12-0.07A
Atex/iecex Certification Marking Atex Baseefa15Atex0153X,Ex Tb Iiic dB Ip66. T6 @ 58°C, T5 @ 70ºc,Iecex Iecex Bas 15.0102X,Ii 2Gd Ex dB E Op Is Iic Gb,Ii 2Gd Ex De Iic Gb
Brightness Selection Fixed Brightness
Cable Entries Ex D 2 Entries-M20 x 1.5, Ex De 3 Entries-M20 x 1.5
Color Clear
Connection Type Termin, Al Block
Control Protocol User Operated
Depth 5.234"
Enclosure Rating Type 4A, IP66, IP67, IP69K
Environmental Rating Hazardous Location
Flashes Per Minute 60/75/90 FPM
Footprint Length 5 1/4"
Footprint Shape Square
Footprint Width 5 1/4"
For Hazardous Location Class I, Division 2, Class Il, Division 2
Guard & External Fasteners Grade Grade 316
Guard & External Fasteners Material Stainless Steel
Height 7 1/2"
Housing Color Black
Housing Material Glass Reinforced Polyester
Includes Dome Guard
Includes Mounting Hardware Mounting Hardware Included
Ip Rating IP66, IP69K
Lamp Life 50000 hrs.
Length 5 7/32"
Lens Color Clear
Lens Design Fresnel
Lens Material Polycarbonate
Lens Shape Dome
Lifespan 50000 hrs.
Light Intensity 175 cd
Light Operating Mode Strobe, Flashing, Rotating
Light Output 400 lm
Light Source LED
Mounting Location Ceiling Mount, Wall Mount
Mounting Mechanism Screw
Mounting Style Surface Mount
Mounting Type Surface
Nema Rating NEMA 4X
Operating Current 0.07-0.12A @ 120-240V AC
Operating Temp. -58°F to +158°F
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -67°F
Operating Voltage 120-240V AC
Overall Height 7 1/2"
Overall Length 5 7/32"
Overall Width 5 7/32"
Power Source Wire
Product Type Warning Light
Rating IP66
Requires Base Base Not Required
Standard Logo ul.png
Terminals EX D 6 Way Block (3", 3 Out), EX DE 3-Pole, 4 Position Quad Pole Terminal Blocks
Ul/cul Certification Marking B, C, Class I, Class II, Class III T6 @ 70°C, D T4 @ 70°C, Division 2, G T6 @ 70°C, Groups A, Groups F, UL and cUL E207119
Warranty 5 yrs.
Width 5 7/32"
standard ABS, ATEX, CE, CSFM APPROVED, CUL LISTED, CULUS LISTED, GOST, IECEX, INMETRO, UKCA, UL LISTED

Product Details

Warning Light

Shipping Information

height 19.05
length 13.3
width 13.3
country of origin US
weight 3.307500
