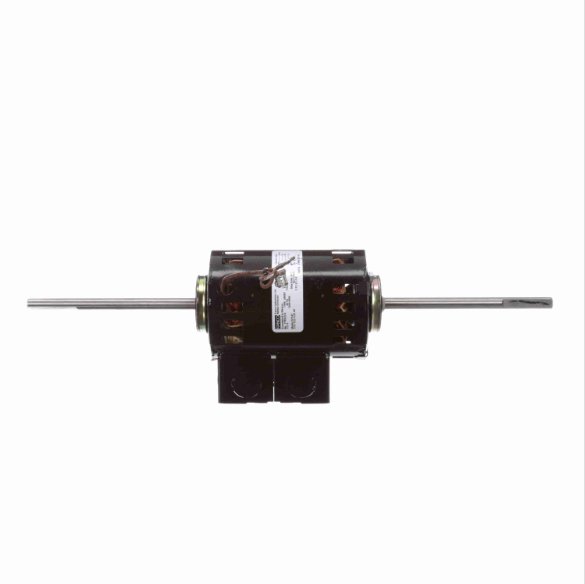

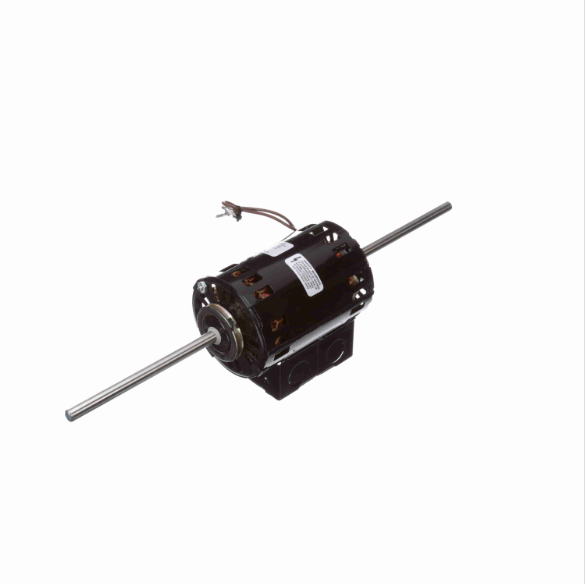

FASCO D1141 Condenser Fan Motor, 1/15, 1/25 And 1/35 HP, 1000 RPM, 115V AC

Item: CH9XEB
Model: D1141
In Stock

Get it by Wednesday, Apr 15

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£551.388
5.00% off
£523.824/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Amps 1.7/1.3/1A
Bearing Type Sleeve
Body Dia. 3.4"
Capacitor Required 2MDV3
Dia. 3 2/5"
Diameter 3 2/5"
Drive End Bearing Sleeve
Duty Air Over
Electrical Type Permanent Split Capacitor
Enclosure Type Open Air Over
Frame 3.3
Frame Length 4.51"
Frame Material Steel
Frequency 60 Hz
Full Load Amps 1.7/1.3/1A
Hp 1/15 hp, 1/25 hp, 1/35 hp
Includes Capacitor No
Ins. Class Class B
Insulation Class Class B
Length 16.05"
Length Less Shaft 10 7/16"
Max. Ambient Temp. 104°F
Motor Application OEM Replacement
Motor Bearings Sleeve
Motor Design Permanent Split Capacitor
Motor Enclosure Design OAO
Motor Frame Material Steel
Motor Mounting Type Ring
Motor Service Factor 1
Motor Shaft Design Flat
Motor Shaft Rotation CCWLE
Motor Sub Application Condenser Fan
Motor Thermal Protection Automatic
Motor Type Permanent Split Capacitor
Mounting Type Resilient Rings
Nameplate Rpm 1000 RPM
No. Of Poles 6
No. Of Shafts 2
No. Of Speeds 3
Number Of Shafts 2
Number Of Speeds 3
Oem Replacement Brand Mcquay
Opp Drive End Bearing Sleeve
Output Hp 1/15 hp to 1/35 hp
Output Kw 0.05 kW
Overall Length 16 1/16"
Permanent Split Capacitor Required 4 µf, 370V
Phase 1
Replacement For 879-382563B-00
Rpm 1000 RPM
Service Factor 1
Shaft Dia. 0.375"
Shaft Extension Size 5.62"
Shaft Length 5 5/8"
Shaft Type Flat
Standard Logo csa.png,ul.png
Starting Method Across The Line
Thermal Protection Automatic , Yes
Usable @ 200v No
Usable @ 208v No
Voltage 115V
standard CSA CERTIFIED, UL RECOGNIZED

Product Details

Condenser Fan Motor

Shipping Information

height 8.41
length 43.18
width 11.43
country of origin MX
weight 2.790000
