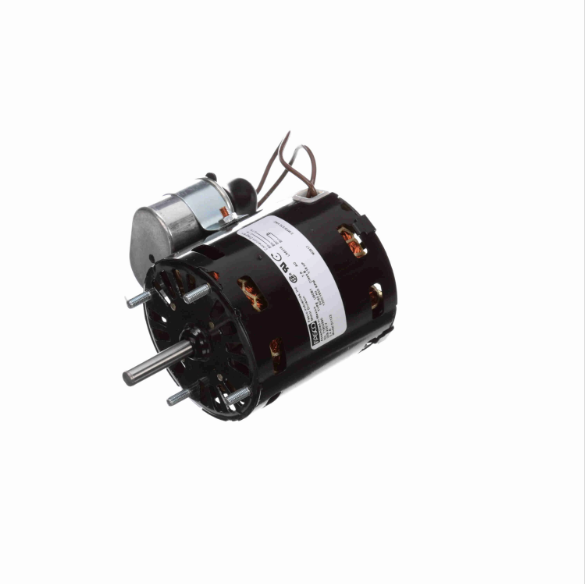

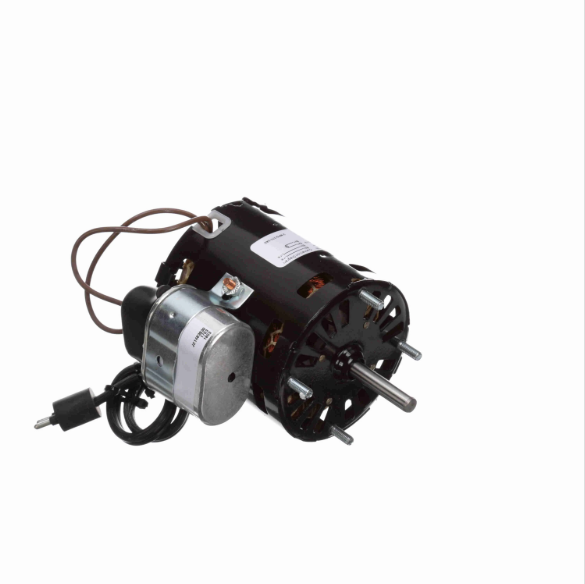

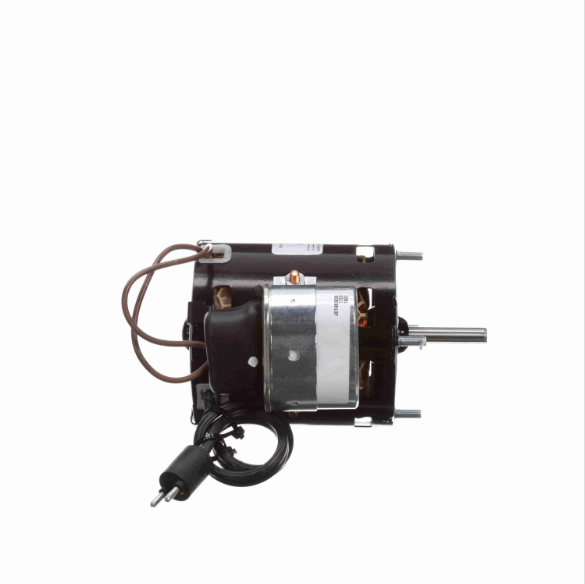

FASCO D1122 Condenser Fan Motor, 1/16 HP, 1300 RPM, 208 To 230V AC

Item: CH9XAR
Model: D1122
19 In Stock

Ships within 2 days via

£367.73
5.00% off
£349.34/unit
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ambient Temp. 40°C
Amps 0.4A
Bearing Type Sleeve
Body Dia. 3.4"
Bolt Circle Dia. 2 13/16"
Capacitor Required Included
Dia. 3 2/5"
Diameter 3 2/5"
Drive End Bearing Sleeve
Duty Air Over
Electrical Type Permanent Split Capacitor
Enclosure Type Open Air Over
Frame 3.3
Frame Length 3.4"
Frame Material Steel
Frequency 50 Hz
Full Load Amps 0.4A
Hp 1/16 hp
Includes Capacitor Yes
Ins. Class Class B
Insulation Class Class B
Length 5.57"
Length Less Shaft 3 7/8"
Max. Ambient Temp. 104°F
Motor Application OEM Replacement
Motor Bearings Sleeve
Motor Design Permanent Split Capacitor
Motor Enclosure Design OAO
Motor Frame Material Steel
Motor Mounting Type Stud
Motor Service Factor 1
Motor Shaft Design Flat
Motor Shaft Rotation CWSE
Motor Sub Application Condenser Fan
Motor Thermal Protection Automatic
Motor Type Permanent Split Capacitor
Mounting Stud Length 1/2"
Mounting Type Extended Studs
Nameplate Rpm 1300 RPM
No. Of Poles 4
No. Of Shafts 1
No. Of Speeds 1
Number Of Shafts 1
Number Of Speeds 1
Oem Replacement Brand Heatcraft
Opp Drive End Bearing Sleeve
Output Hp 1/16 hp
Output Kw 0.04 kW
Overall Length 5 9/16"
Permanent Split Capacitor Required 2 µf, 370V
Phase 1
Replacement For 25308601
Rpm 1300/1650 RPM
Service Factor 1
Shaft Dia. 0.313"
Shaft Extension Size 1.69"
Shaft Length 1 5/8"
Shaft Type Flat
Standard Logo csa.png,ul.png
Starting Method Across The Line
Stud Length 1/2"
Stud Size #10-32
Thermal Protection Automatic , Yes
Usable @ 200v No
Usable @ 208v Yes
Voltage 208-230V
standard CSA CERTIFIED, UL RECOGNIZED

Product Details

Condenser Fan Motor

Shipping Information

height 12.7
length 20.32
width 14.3
country of origin MX
weight 1.800000
