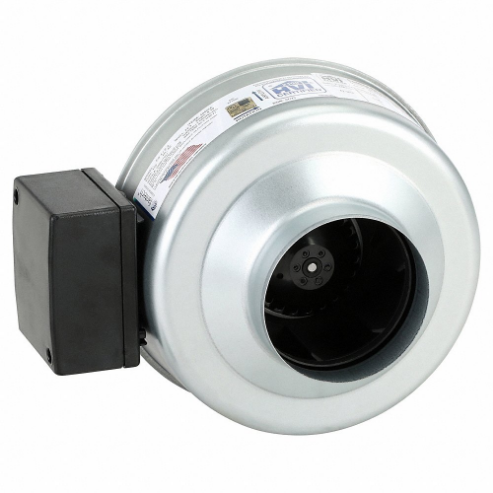

Item | Centrifugal Inline Duct Fan |
Bearing Type | Ball |
CFM @ 0.000-In. SP | 135 |
CFM @ 0.125-In. SP | 123 |
CFM @ 0.200-In. SP | 110 |
CFM @ 0.250-In. SP | 106 |
CFM @ 0.375-In. SP | 89 |
CFM @ 0.400-In. SP | 83 |
CFM @ 0.500-In. SP | 69 |
CFM @ 0.600-In. SP | 55 |
CFM @ 0.750-In. SP | 33 |
CFM @ 0.800-In. SP | 25 |
CFM @ Duct | 135 |
Fits Duct Dia. | 4" |
Green Certification or Other Recognition | ENERGY STAR Rated |
Housing Dia. | 8-3/4" |
Housing Material | Galvanized Steel |
Hz | 60 |
Inlet and Outlet Dia. | 3-7/8" |
Length | 8.5" |
Max. Amps | 0.19 |
Max. Inlet Temp. | 140 Degrees F |
Max. Wattage | 20 |
Motor Enclosure | Totally Enclosed |
Motor HP | 1/50 |
Motor RPM | 2950 |
Mounting Position | Horizontal or Vertical |
Number of Speeds | 1 |
Phase | 1 |
Speed Control | Mfr. No. 1DGV1 |
Voltage | 115 |
Ship weight (kg) | 2.65 |
Ship height (cm) | 27.9 |
Ship length (cm) | 30.5 |
Ship width (cm) | 27.9 |
HS code | 8414596060 |
Country of Origin | DE |
Product | Model | CFM @ 0.750-In. SP | CFM @ 0.000-In. SP | CFM @ 0.100-In. SP | CFM @ 1.000-In. SP | CFM @ 1.500-In. SP | Fits Duct Dia. | Flange Width | Height | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
FG 4XL | 90 | 170 | 160 | 86 | 40 | 4" | - | 8.5" | £325.81 | ||
FG 6M | 195 | 418 | 394 | 186 | 101 | 6" | - | 8.625" | £429.64 | ||
FG 6XL | 299 | 483 | 466 | 289 | 201 | 6" | - | 8.625" | £580.91 | ||
FG 8 | 204 | 461 | 435 | 191 | 97 | 8" | - | 8.25" | £537.71 | ||
FG 10 | 334 | 513 | 497 | 324 | 216 | 10" | - | 6 13/16" | £566.94 | ||
FG 12 | 380 | 741 | 711 | 363 | 236 | 12" | - | 10.5" | £735.71 | ||
FG 6M EC | 247 | 363 | - | 206 | 113 | 6" | 1" | - | £609.91 |
