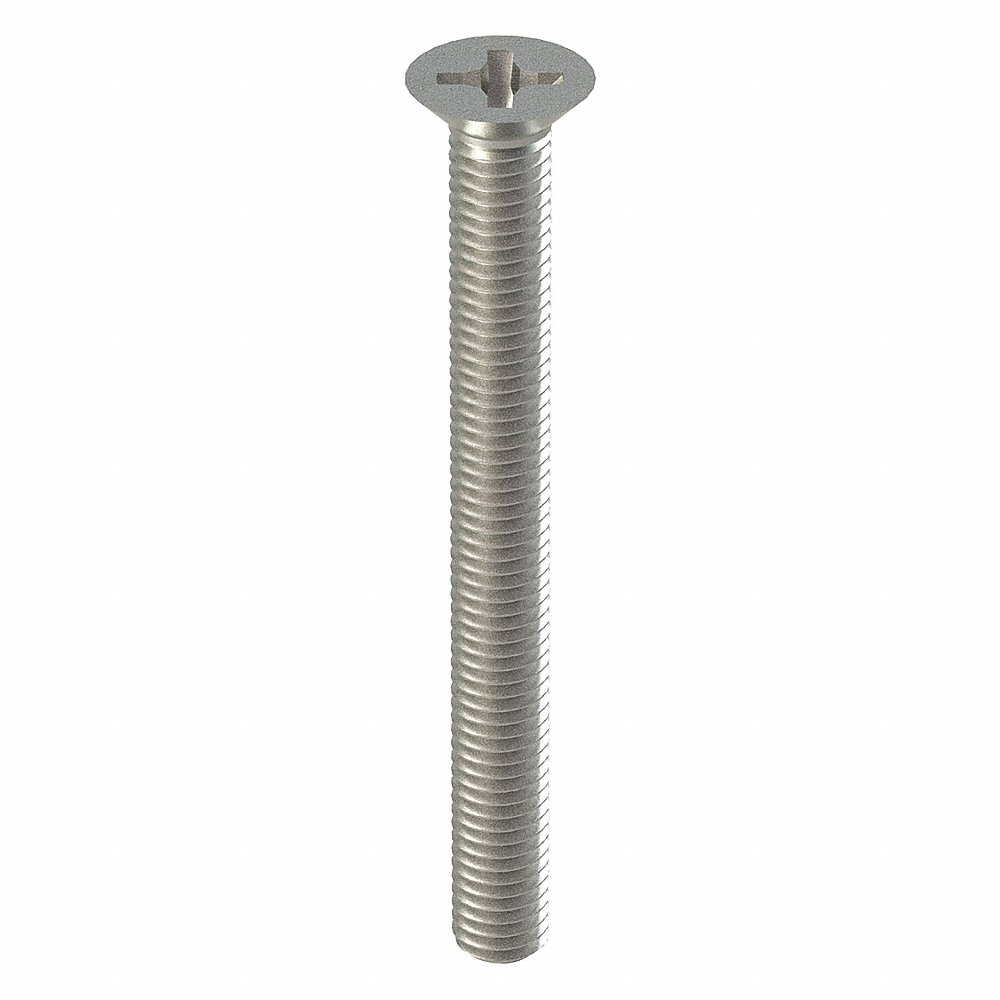

FABORY M51300.050.0050 Machine Screw, M5x0.8 Thread Size, SS, 50 mm Lg., Flat, Phillips, Plain, 50PK
Item: CG8HCT
Model: M51300.050.0050
16 In Stock
Ships within 2 days via
50 mm
M5
5.00% off
£19.18/pkg. of 50
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Class | Class 6G |
|---|---|
| Dimensional Standards | Din 965H, Din En Iso 7046 |
| Drive | Phillips |
| Drive Size | #2 |
| Drive Type | Phillips |
| Fastener Length | 50 mm |
| Finish | Plain |
| Grade | Grade A2 |
| Head Dia. | 9.3 mm |
| Head Height | 2.5 mm |
| Head Type | Flat |
| Length | 50 mm |
| Machine Screw Type | Standard Machine Screw |
| Material | Stainless Steel |
| Maximum Temperature | 302°F |
| Minimum Head Height | 2.5 mm |
| Minimum Temperature | 58°F |
|---|---|
| Minimum Thread Length | 50 mm |
| Screw Size | M5 |
| Standard Logo | din.png |
| System Of Measurement | Metric |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 150000 psi |
| Thread Direction | Right Hand |
| Thread Fit | 6G |
| Thread Length | 50 mm |
| Thread Pitch | 0.8 mm |
| Thread Size | M5 |
| Thread Style | Fully Threaded |
| Thread Type | Coarse |
| Type | Standard Machine Screw |
Product Details
Machine Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | Varies |
|---|---|
| weight | 0.329800 |
