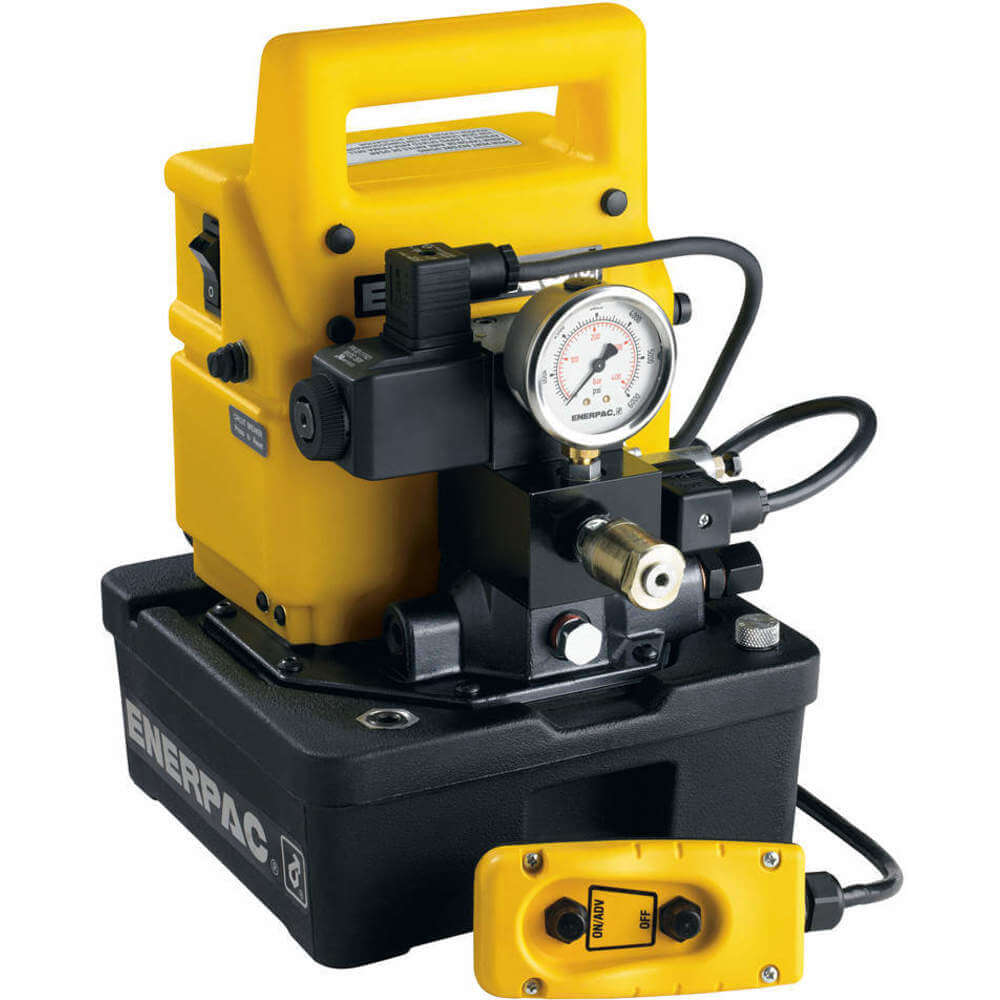

Item | Hydraulic Electric Pump |
Application | Dump and Hold |
Current Drawn | 9.5A |
Cylinder Compatibility | Single Acting |
Dimension A | 9.62" |
Dimension B | 9.62" |
Dimension C | 14.25" |
Dimension D | 4" |
Dimension E | 4.72" |
Dimension F | 8" |
Dimension H | 0.4" |
Dimension J | 5.25" |
Frequency | 50/ 60 Hz |
Max. Flow at Rated Pressure | 25 cu. in./min. |
Max. Operating Pressure | 5000 psi |
Motor HP | 0.5 hp |
Oil Flow Rate 1st Stage | 200 cu. in./min. |
Oil Flow Rate 2nd Stage | 25 cu. in./min. |
Phase | 1 |
Power Source | Electric |
Pressure Rating 1st Stage | 200 psi |
Pressure Rating 2nd Stage | 5000 psi |
Reservoir Capacity | 116 cu. in. |
Sound Level | 85 dBA |
Usable Oil Capacity | 0.5 gal. |
Valve Function | Advance/ Hold/ Retract |
Voltage | 115V |
Ship weight (kg) | 16.01 |
Ship height (cm) | 48.01 |
Ship length (cm) | 42.42 |
Ship width (cm) | 33.27 |
HS code | 8413500080 |
Country of Origin | US |
A.
A. Hydraulic fluid is a non-compressible oil or liquid used in hydraulic machinery and equipment to transfer power. Although numerous substances can be used to create this hydraulic fluid, it is typically made of mineral, petroleum, water or synthetic materials.
A.
A.
A. A single-acting hydraulic cylinder has a single port. The hydraulic fluid enters at this point and drives the plunger outward in one direction. There are two ports in a double-acting cylinder. One for the cylinder to be retracted and the other for the hydraulic fluid to enter and extend the plunger.
Product | Model | Application | Valve Function | Price | |
---|---|---|---|---|---|
WUD1100B | Dump | Advance/ Retract | £6,353.66 |
