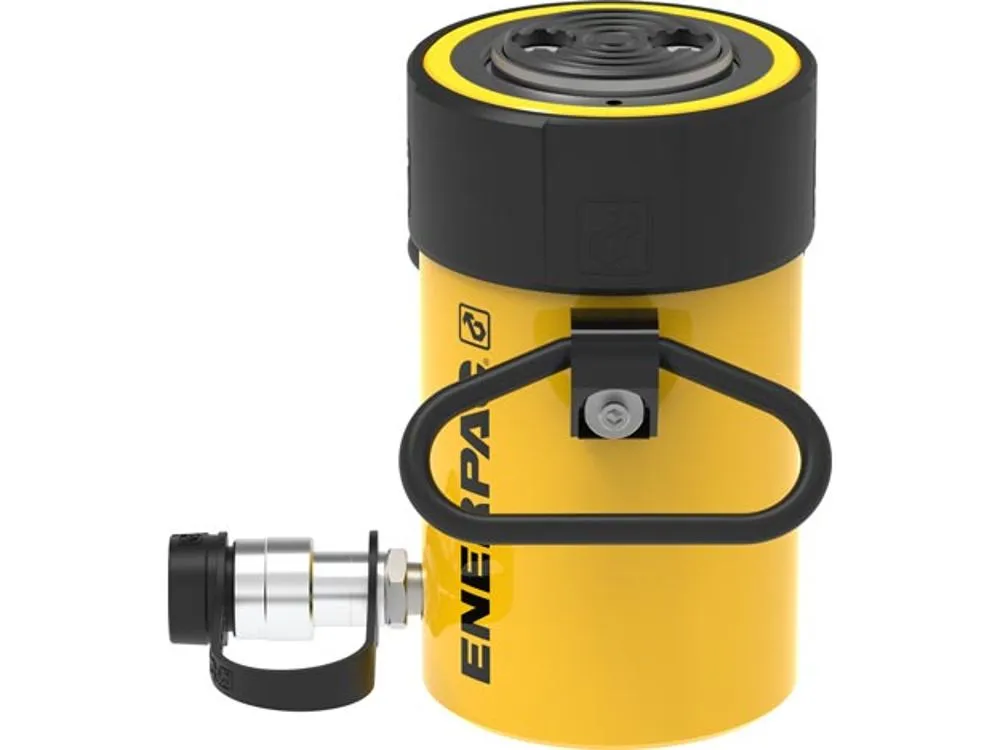

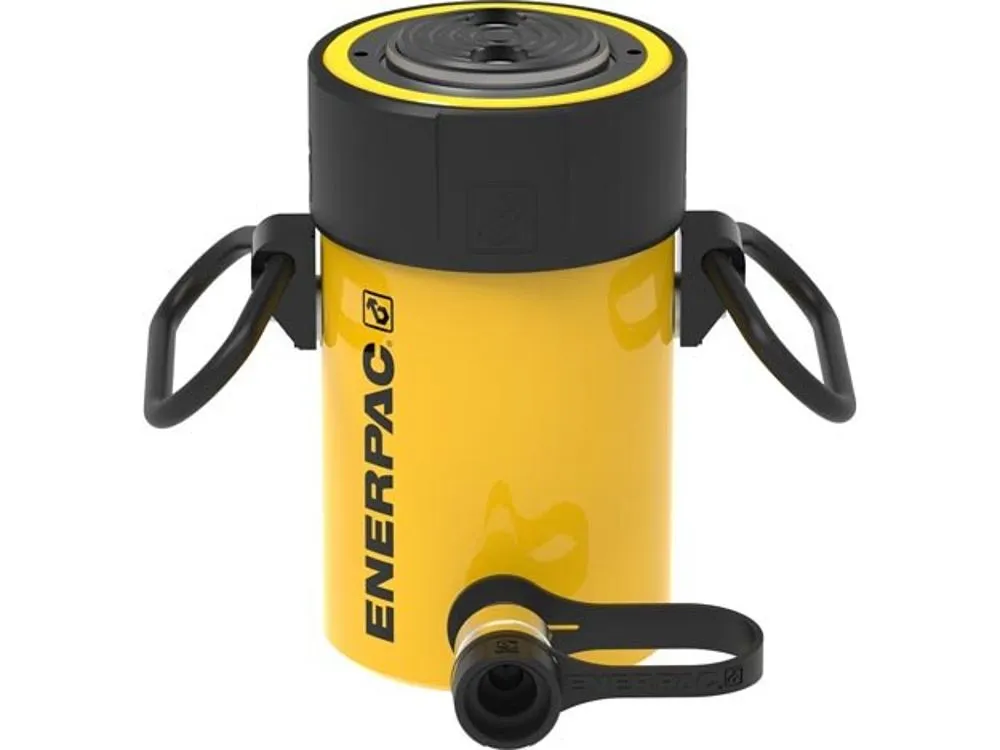

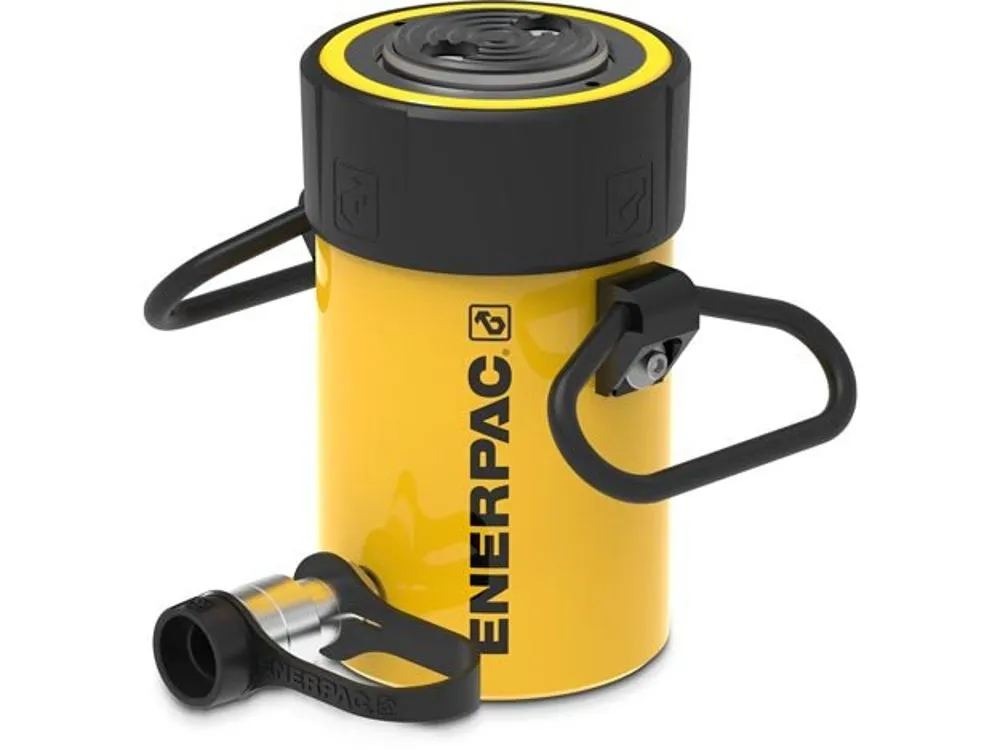

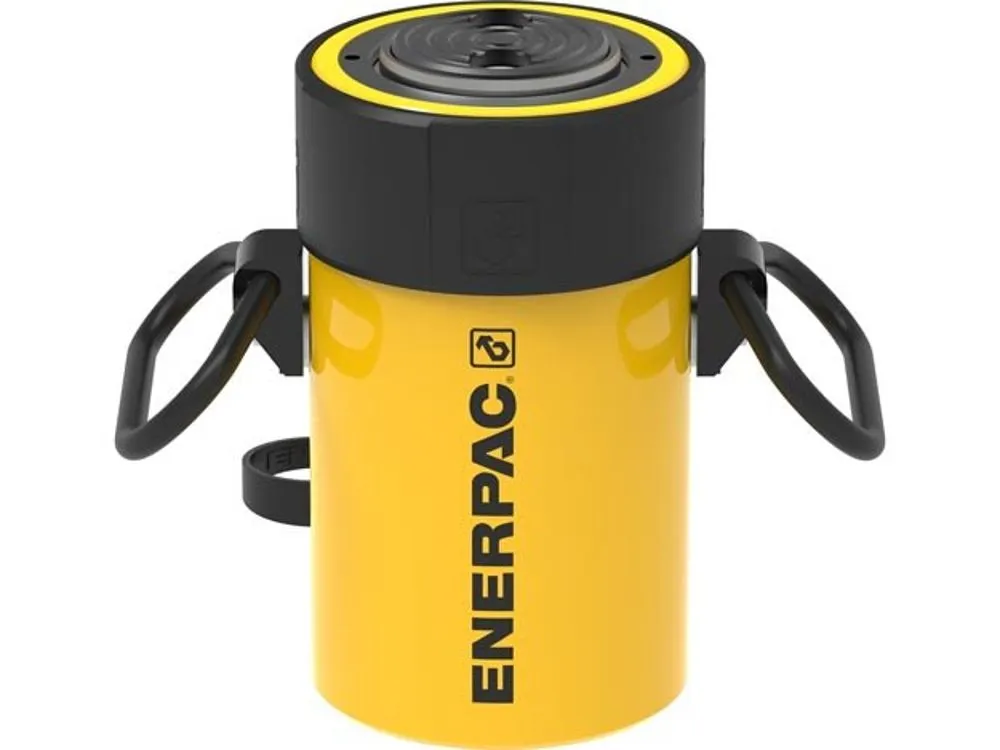

Item | Hydraulic Cylinder |
Base Mounting Holes Bolt Circle | 3.75" |
Base Mounting Holes Thread Depth | 0.75" |
Base Mounting Holes Thread Size | 1/2"-13 UN |
Base to Advance Port | 1.31" |
Capacity | 50 ton. |
Collapsed Height | 8.94" |
Collar Thread Length | 2.19" |
Collar Thread Size | 5"-12 UN |
Couplers | CR400 Coupler |
Cylinder Bore | 3.75" |
Cylinder Effective Area Advance | 11.04 sq. in. |
Cylinder Return Type | Single-Acting, Spring Return |
Extended Height | 12.94" |
Finish | Painted |
Material | Steel |
Max. Cylinder Capacity Advance | 55.2 short ton. |
Max. Operating Pressure | 10000 psi |
Oil Capacity Advance | 44.18 cu. in. |
Optional Tilt Saddle Addition To Collapsed Height | 0.59" |
Optional Tilt Saddle Dia. | 2.81" |
Outside Dia. | 5" |
Plunger Dia. | 3.13" |
Plunger Type | Solid |
Saddle Diameter | 2.8" |
Saddle Max. Tilt Angle | 5 Deg. |
Saddle Protrusion from Plunger | 0.11" |
Stroke | 4" |
UPC | 662005301621 |
Ship weight (kg) | 19.05 |
Ship height (cm) | 33.53 |
Ship length (cm) | 17.02 |
Ship width (cm) | 23.11 |
HS code | 8412210075 |
Country of Origin | CN |
A. This hydraulic cylinder has a maximum capacity of 50-tons.
A. Enerpac RC504 cylinder is a single-acting cylinder. It applies force in one direction only and relies on the external forces of the spring for retraction.
A. To extend or retract the brand's RC504 cylinder, you will need to control the flow of hydraulic fluid into or out of the cylinder, which is achieved by connecting the cylinder to a compatible hydraulic pump or valve that allows you to regulate the hydraulic pressure.
A.
Product | Model | Cylinder Effective Area Advance | Base Mounting Holes Bolt Circle | Base Mounting Holes Thread Depth | Max. Cylinder Capacity Advance | Oil Capacity Advance | Optional Tilt Saddle Addition To Collapsed Height | Optional Tilt Saddle Dia. | Outside Dia. | Price | |
---|---|---|---|---|---|---|---|---|---|---|---|
RC10010 | 20.63 sq. in. | 5.5" | 1" | 103.1 short ton. | 211.45 cu. in. | 0.59" | 2.8" | 7" | £8,932.32 | ||
RC1512 | 3.14 sq. in. | 1.88" | 0.5" | 15.7 short ton. | 37.7 cu. in. | 0.43" | 1.38" | 2.75" | £2,741.72 | ||
RC7513 | 15.9 sq. in. | 4.5" | 0.63" | 79.5 short ton. | 208.74 cu. in. | 0.59" | 2.81" | 5.75" | £7,656.20 | ||
RC756 | 15.9 sq. in. | 4.5" | 0.63" | 79.5 short ton. | 97.41 cu. in. | 0.59" | 2.81" | 5.75" | £5,874.59 | ||
RC-1006 | 20.63 sq. in. | 5.5" | 1" | 103.1 short ton. | 136.67 cu. in. | 0.59" | 2.8" | 7" | £6,058.70 | ||
RC-1012 | 2.24 sq. in. | 1.56" | 0.5" | 11.2 short ton. | 26.84 cu. in. | 0.55" | 1.38" | 2.25" | £1,596.23 | ||
RC-1014 | 2.24 sq. in. | 1.56" | 0.5" | 11.2 short ton. | 31.31 cu. in. | 0.55" | 1.38" | 2.25" | £1,555.57 |
