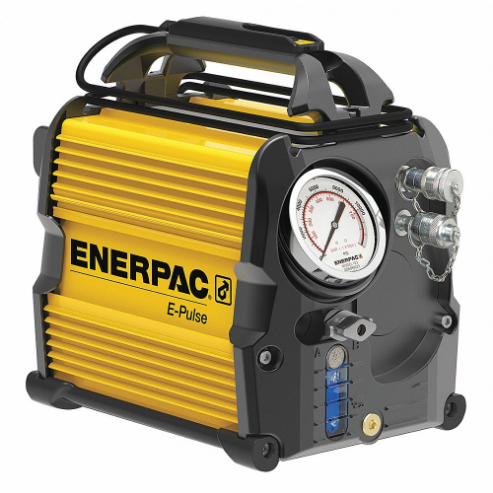

Item | Hydraulic Electric Pump |
Current Drawn | 12A |
Dimension A | 10.2" |
Dimension B | 14.2" |
Dimension C | 15.8" |
Duty Cycle | Extended |
Max. Flow at Rated Pressure | 32 cu. in./min. |
Max. Operating Pressure | 10000 psi |
Motor HP | 0.85 hp |
Number of Wrenches Pump can Operate | 1 |
Output Flow Rate @ 14.5 psi | 220 cu. in./min. |
Output Flow Rate @ 2538 psi | 130 cu. in./min. |
Output Flow Rate @ 5075 psi | 58 cu. in./min. |
Output Flow Rate at 14.5 psi | 220 cu. in./min. |
Output Flow Rate Load | 32 cu. in./min. |
Output Flow Rate No Load | 220 cu. in./min. |
Power Source | Electric |
Reservoir Capacity | 185 cu. in. |
Sound Level | 70 to 85 dBA |
Usable Oil Capacity | 0.8 gal. |
Valve Operation | Solenoid |
Valve Type | 4-Way, 2-Position |
Voltage | 100 to 120V |
Ship weight (kg) | 22.48 |
Country of Origin | USA |
Model | Cylinder Compatibility | Dimension C | Valve Operation | Valve Type | Price | |
---|---|---|---|---|---|---|
EP3104DB-G | Single Acting | 14" | Solenoid | 3-Way, 2-Position | £8,528.90 | |
EP3204JB-G | Single Acting | 15.2" | Manual | 3-Way, 2-Position | £7,577.72 | |
EP3404JB-G | Double Acting | 15.2" | Manual | 4-Way, 3-Position | £8,354.22 | |
EP3504TBM | - | - | - | - | £17,384.72 |
