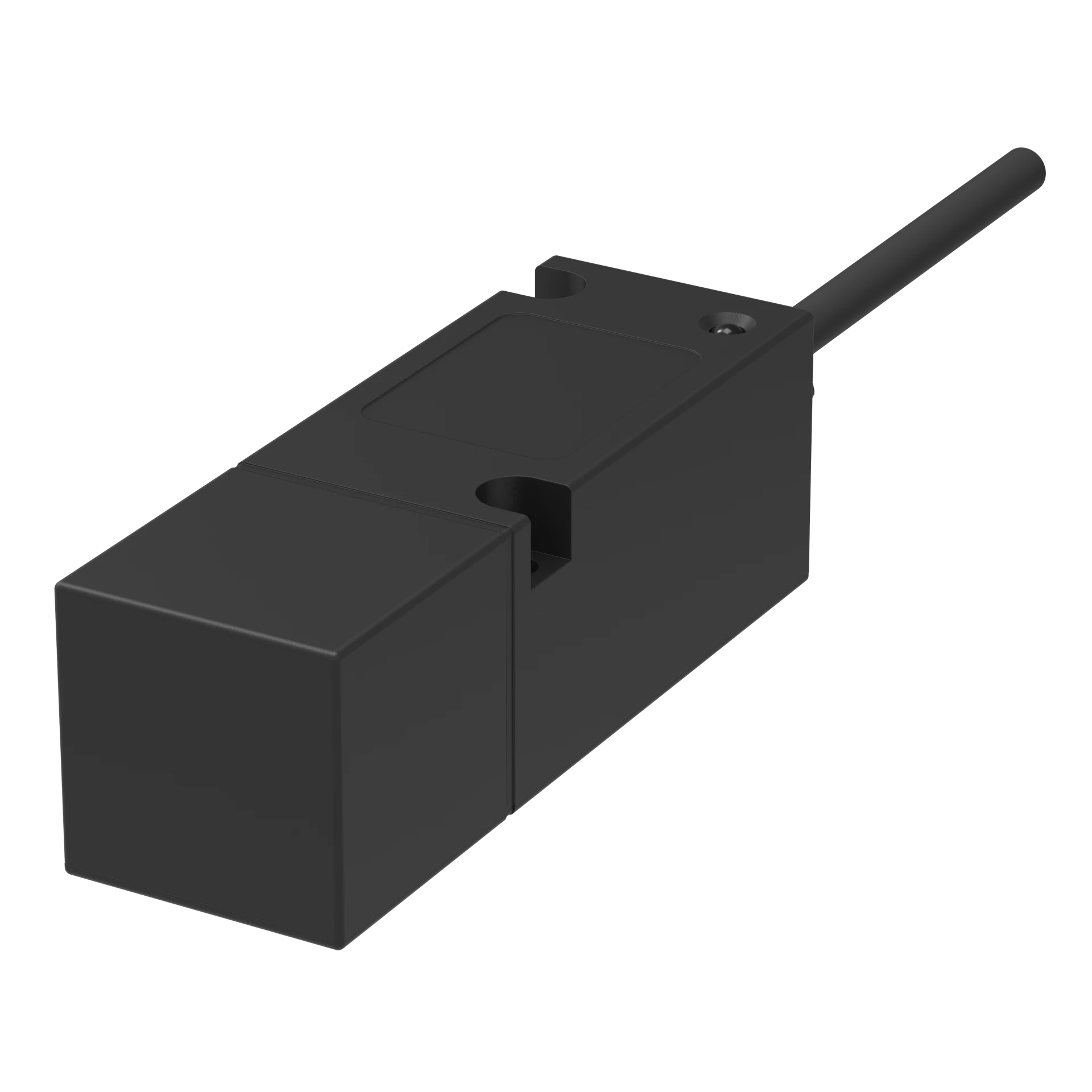

ELOBAU 117611E1-3 Safety Sensor, With Built In Relay

Item: CL7MUV Model: 117611E1-3
Call for Availability

Get it by May 17, Friday

£500.75 /unit (Inc. VAT)
Trade Prices Available
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemSensor
Actuation Frequency18000/1 h
Actuation TypeFront
Air Pressure860 to 1060 hPa
Assured Switch Off Distance21 mm
Assured Switching Distance3 mm
Cable ColorSilver Grey
Cable Length1 m
Cable MaterialTPE
Continuous Shock Resistance10 g/ 16 ms
Current Consumption60 mA
Degree Of Pollution2
Delta Tmax0.5 Deg. C/min.
Free Zone25 mm
Fuse Control Output3A
Fuse Operating Current0.5A
Fuse Safety Output3A
Housing ColorSilver
Housing DesignRectangular
Housing MaterialPBT
IP RatingIP67
Led DisplaySingle Coloured
Max. Cable Temp. Range, Fixed Installation55 Deg. C
Max. Cable Temp. Range, Moving55 Deg. C
Max. No. Operating Cycles At 0.5A Switching Current (Ohmic Load)1000000
Max. No. Operating Cycles At 2.5A Switching Current (Ohmic Load)230000
Max. Operating Speed0.1 m/min.
Max. Operating Temp.55 Deg. C
Max. Operating Voltage26.4V DC
Max. Storage Temp.55 Deg. C
Max. Switching Current At Control Output3A
Max. Switching Power At Control Output90W
Max. Switching Power At Safety Output90W
Max. Switching Voltage At Control Output250V AC/ 30V DC
Max. Switching Voltage At Safety Output250V AC/ 30V DC
Min. Cable Temp. Range, Moving-25 Deg. C
Min. Cable Temperature Range, Fixed Installation-25 Deg. C
Min. Operating Temp.-25 Deg. C
Min. Operating Voltage21.6V AC/DC
Min. Storage Temp.-25 Deg. C
Min. Switching Current At Control Output0.01A, 3A
Min. Switching Current At Safety Output0.1A
Min. Switching Power At Control Output0.12W
Min. Switching Power At Safety Output0.5W
Min. Switching Voltage At Control Output12V AC/DC
Min. Switching Voltage At Safety Output5V DC
Minimum Installation Distance (Between Two Sensors)50 mm
Minimum Switching Distance0.5 mm
Mounting TypeScrew
Number Of Relay Control Output1
Number Of Relay Safety Output1
Number of Strands5
OvervoltageCategory III
Power Consumption1.5W
Protection ClassClass III
Readiness Delay350 ms
Relative Humidity5% to 85 %
Shock Resistance30 g/ 11 ms
Size120 mm x 40 mm x 40 mm
Switching PrincipleMagnetic
TechnologyReed
Utilization Category15-AC/-13-DC
Vibration Resistance10 Hz to 55 Hz
Wire Cross Section0.75 Sq. mm

Product Variants

ProductModelCannot Be Mounted FlushActuation FrequencyActuation TypeConnection SizeConnector SizeConnector TypeContact FormContinuous Shock ResistancePrice
ELOBAU 171V62AY Safety Sensor, Magnetically Actuated, N.O./N.O., Built In Connector, M12 Size | CL7MND
171V62AYYes-Front-M12 x 14 PinNO/ NO-£127.40
RFQ
ELOBAU 114270A0D Safety Sensor, Magnetically Actuated, N.O./N.C, Built In Connector, M8 Size | CL7MNX
114270A0D--Front-M8 x 14 PinNO/ NC-£126.46
RFQ
ELOBAU 171V62VY Safety Sensor, Magnetically Actuated, N.O./N.O., Built In Connector, M12 Size | CL7MPA
171V62VYYes-Front-M12 x 14 PinNO/ NO-£317.00
RFQ
ELOBAU 114270-5 Safety Sensor, Magnetically Actuated, N.O./N.C. 5m Cable | CL7MPC
114270-5--Front---NO/ NC-£151.31
RFQ
ELOBAU 153V62-10 Safety Sensor, Magnetically Actuated, N.O./N.O., 10m Cable | CL7MPF
153V62-10--------£183.68
RFQ
ELOBAU 165270-5 Safety Sensor, Magnetically Actuated, N.O/N.C., 5m Cable | CL7MPH
165270-5--------£137.78
RFQ
ELOBAU 120272-5 Safety Sensor, Magnetically Actuated, N.O/N.C., 5m Cable | CL7MPJ
120272-5--Front---NO/ NC-£143.42
RFQ
