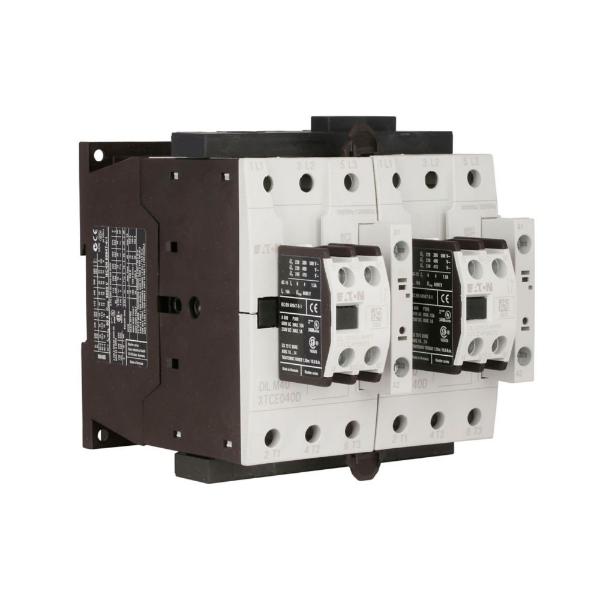

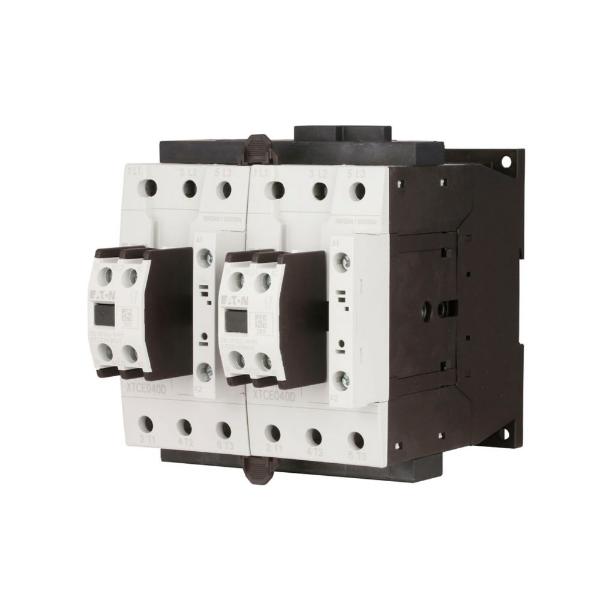

EATON XTCR050D11TD IEC Magnetic Contactor, Reversing, 3 Poles, 50 A, 24 VDC Coil, D Frame Size
Item: BH8ZFF
Model: XTCR050D11TD
14 In Stock
Ships within 2 days via
5.00% off
£2056.84/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Amps Rating | 50A |
|---|---|
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 24V DC |
| Contact Configuration | 1 NC, 1 NO |
| Contactor Style | IEC |
| Continuous Amps Rating | 50A |
| Frame Size | D |
| Frequency | 50/60 Hz |
| Full Load Current - Inductive | 50A |
| Full Load Current - Resistive | 80A |
| Height | 6" |
| Horsepower @ Single Phase - 120v Ac | 3 hp |
| Horsepower @ Single Phase - 240v Ac | 10 hp |
| Horsepower @ Three Phase - 208v Ac | 15 hp |
| Horsepower @ Three Phase - 240v Ac | 20 hp |
| Horsepower @ Three Phase - 480v Ac | 40 hp |
| Horsepower @ Three Phase - 600v Ac | 50 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | Yes |
| Ip Rating | IP20 |
| Length | 6 1/2" |
| Main Power Pole Contact Form | 3NO |
| Max. Hp Rating | 3, 10/ 15, 20, 40, 50 hp (1/3 Phase @ 115, 230/200, 230, 460, 575V) |
|---|---|
| Maximum Operating Temperature | 122°F |
| Mfr. Series | XT IEC Series |
| Minimum Operating Temperature | -13°F |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Notes | Screw Terminals (6-65A), 5 mm (80-150A), No Lugs (185-2000A) |
| Number Of Poles | 3 |
| Operation | Reversing |
| Overall Depth | 6.5" |
| Overall Height | 6" |
| Overall Width | 9 1/2" |
| Product Name | Eaton XT IEC contactor |
| Reversing Capability | Reversing |
| Series | Xt Series Series |
| Terminals | Screw Terminals |
| Type | Full Voltage Reversing Contactor |
| Warranty | 1 yr. |
| Width | 9 1/2" |
| Wire Termination Type | Screw |
| standard | CE, CSA, EN 60947, IEC 60947, ROHS, UL LISTED |
Product Details
Shipping Information
| Height | 15.24 |
|---|---|
| Length | 16.51 |
| Width | 24.13 |
| Country Of Origin | US |
|---|---|
| Weight | 2.115000 |
