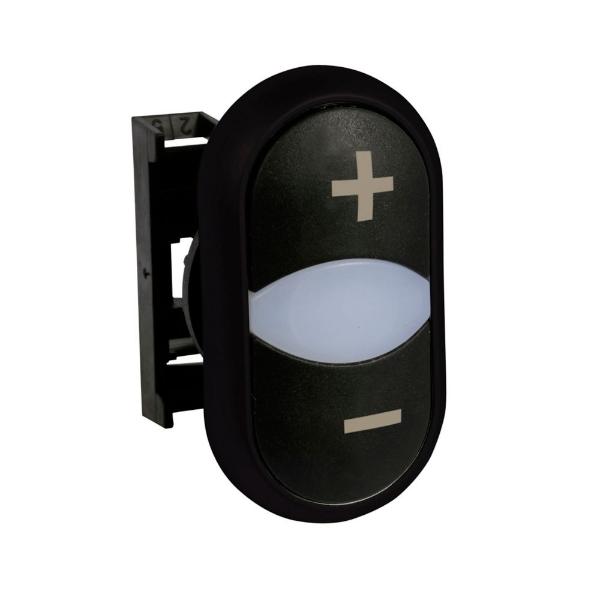

EATON M22S-DDL-S-X4-X5 2

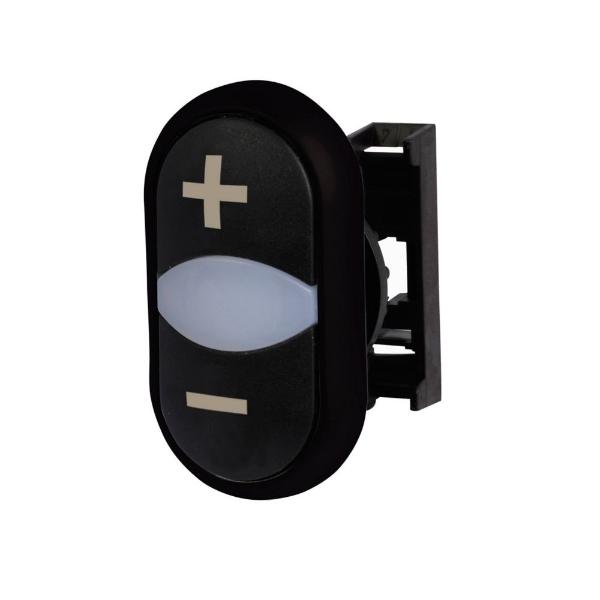

EATON M22S-DDL-S-X4-X5 3

EATON M22S-DDL-S-X4-X5 Double Pushbutton Operator, 22.5 mm, Illuminated, Top Black, Bottom Black, IP66

Item: BH4TWM

Model: M22S-DDL-S-X4-X5

In Stock

Get it by Friday, Apr 17

£99.66/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Delivery

Specifications
Shipping Information
See Variants

Specifications

Actuator Function	Momentary
Actuator Type	Extended, dual button
Bezel	Black
Button Color	Black
Etching Code	X4, X5
Height	1 1/4"
Illumination	Illuminated
Inscription	Top +, Bottom -

Ip Rating	IP66
Length	8"
Nema Enclosure Rating	IP66, NEMA 4X, NEMA 13
Notes	Includes Contact Block Mounting Adapter.
Type	Double Pushbutton With Center Light
Warranty	Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width	4 1/2"

Shipping Information

Height	3.18
Length	20.32
Width	11.43

Country Of Origin	US
Weight	0.019800
