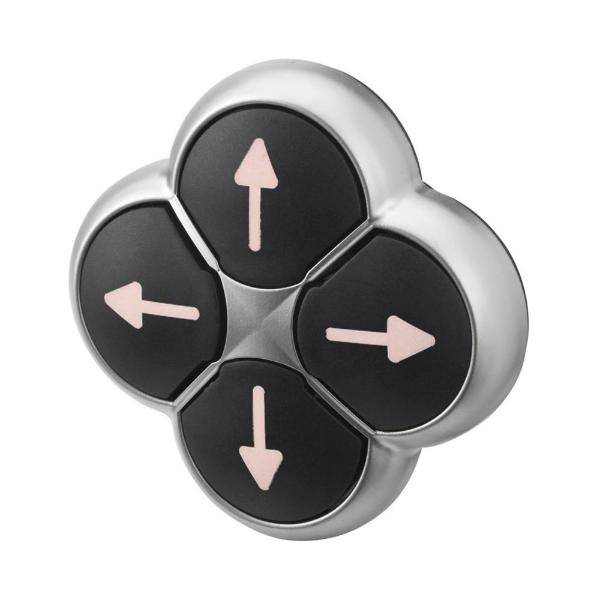

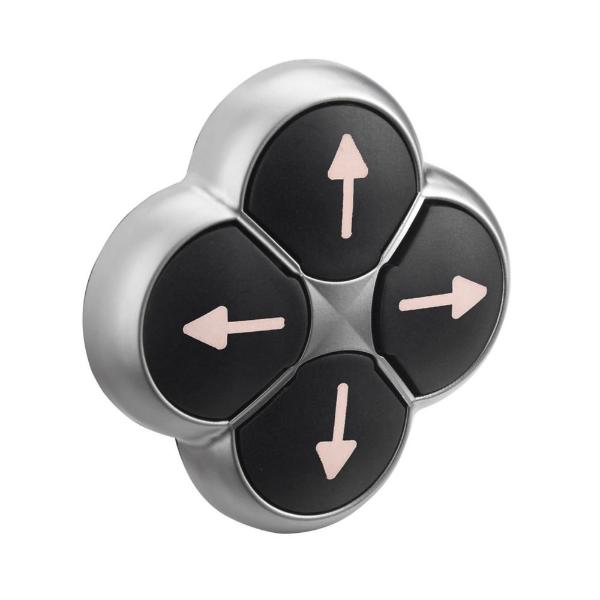

EATON M22-D4-S-X7 Non-Illuminated Multihead Operator, 4 Heads, White/Black, Oval, Flush Buttons
Item: BH4RCX
Model: M22-D4-S-X7
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Action | Momentary |
|---|---|
| Actuator Function | Momentary |
| Actuator Type | Non-interlocked, four-way button |
| Bezel | Silver |
| Bezel Material | Silver |
| Button Color | Black |
| Etching Code | X7 |
| Features | Includes Contact Block Mounting Adapter |
| Head Material | Metal |
| Head/lens Color | Black |
| Height | 2" |
| Illumination | Non-illuminated |
| Inscription | Up arrow, left arrow, down arrow, right arrow |
| Ip Rating | IP67, IP69K |
| Legend | Down Arrow, Left Arrow, Right Arrow |
| Legend Background Color | Green |
| Legend Color | White |
| Length | 1 1/2" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 0 |
|---|---|
| Number Of Operators | 4 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 1.5" |
| Overall Height | 2" |
| Overall Width | 3" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Material Type | Non Metallic |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Standard Logo | ccc.png,csa.png |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 3" |
| standard | BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
Product Details
Push Button Operator
Shipping Information
| height | 5.08 |
|---|---|
| length | 3.81 |
| width | 7.62 |
| country of origin | US |
|---|---|
| weight | 0.009000 |
