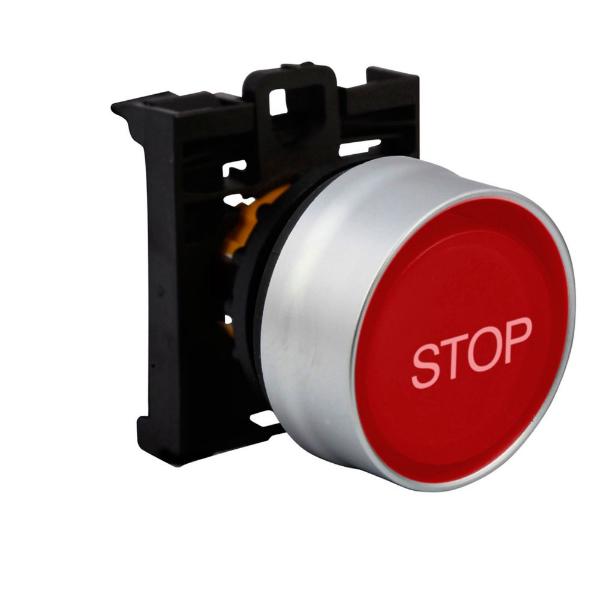

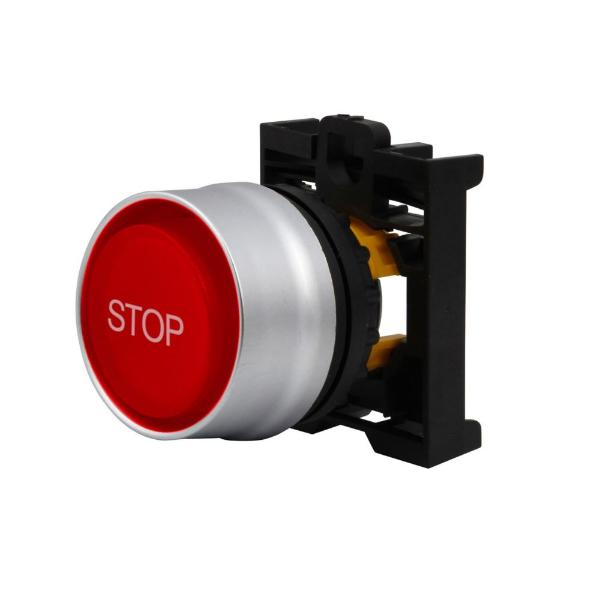

EATON M22-DGH-R-GB0 Pushbutton Operator, 22.5 mm, Red Actuator, Silver Bezel, Non-Illuminated
Item: BH4REL
Model: M22-DGH-R-GB0
24 In Stock
Ships within 2 days via
5.00% off
£42.73/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Action | Momentary |
|---|---|
| Actuator Function | Momentary |
| Actuator Type | Extended with guard, button |
| Bezel | Silver Guarded |
| Bezel Material | Silver |
| Button Color | Red |
| Etching Code | GB0 |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 1 1/2" |
| Illumination | Non-illuminated |
| Inscription | STOP |
| Ip Rating | IP67, IP69K |
| Legend | Stop |
| Length | 7" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
|---|---|
| Operating Cycles | 5 million |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 2.26" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 5" |
| standard | BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
Shipping Information
| Height | 3.81 |
|---|---|
| Length | 17.78 |
| Width | 12.7 |
| Country Of Origin | US |
|---|---|
| Weight | 0.013500 |
