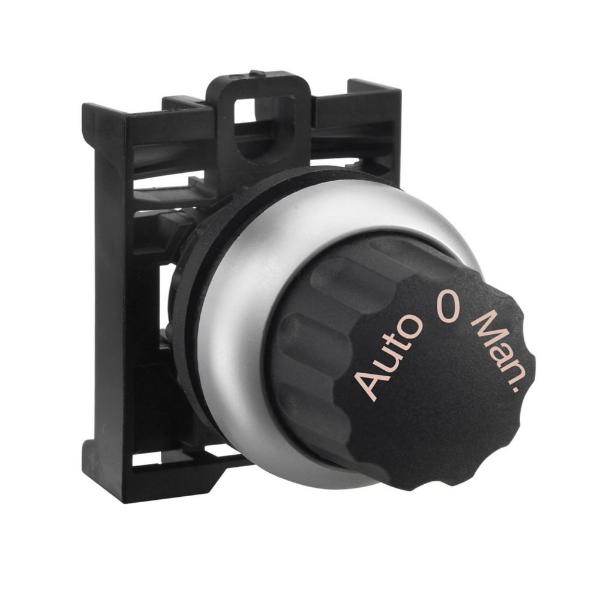

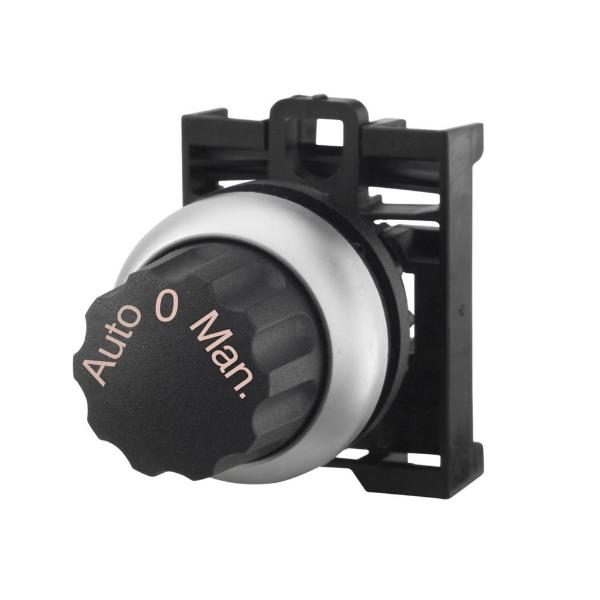

EATON M22-WR3-X94 Short-Handled Selector Switch, 22 mm Panel Mount Size, 3 Positions, No Cam Needed Cam

Item: BH4UTJ
Model: M22-WR3-X94
29 In Stock

Ships within 2 days via

£39.67
5.00% off
£37.69/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Action Maintained/Maintained/Maintained
Actuator Function Maintained
Actuator Type Rotary
Bezel Silver
Bezel Material Silver
Button Color Black
Cam No Cam Needed
Etching Code X94
Hazardous Location Specification Not Rated
Height 1 1/2"
Illumination Non-illuminated
Inscription AUTO 0 MAN
Ip Rating IP66, IP67, IP69K
Length 7"
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Notes Includes Contact Block Mounting Adapter.
Number Of Positions 3
Operating Cycles 100000
Operator Head Material Polycarbonate
Operator Illumination Non Illuminated
Overall Depth 2.78"
Overall Height 1"
Overall Width 1"
Panel Mounting Hole Diameter 22 mm
Series M22 Series
Switch Function @ 1st Position On
Switch Function @ 2nd Position Off
Switch Function @ 3rd Position On
Switch Function @ 4th Position No Fourth Position
Switch Head Color Black
Switch Head Type Short Lever
Type Selector Switch
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width 5"

Product Details

Shipping Information

Height 3.81
Length 17.78
Width 12.7
Country Of Origin US
Weight 0.445500
