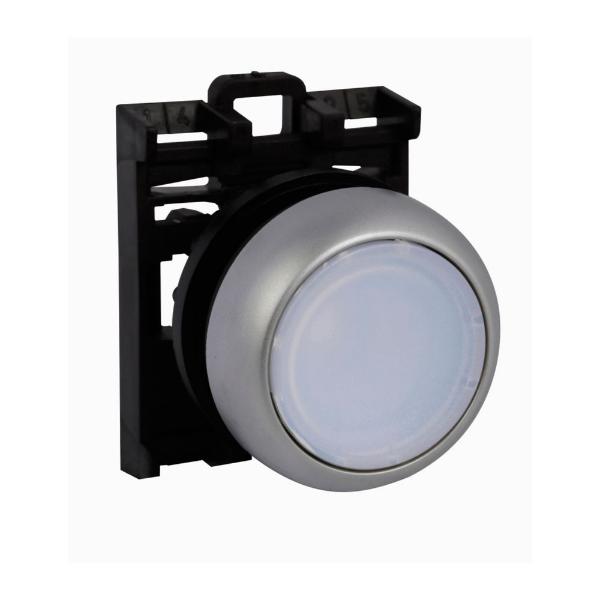

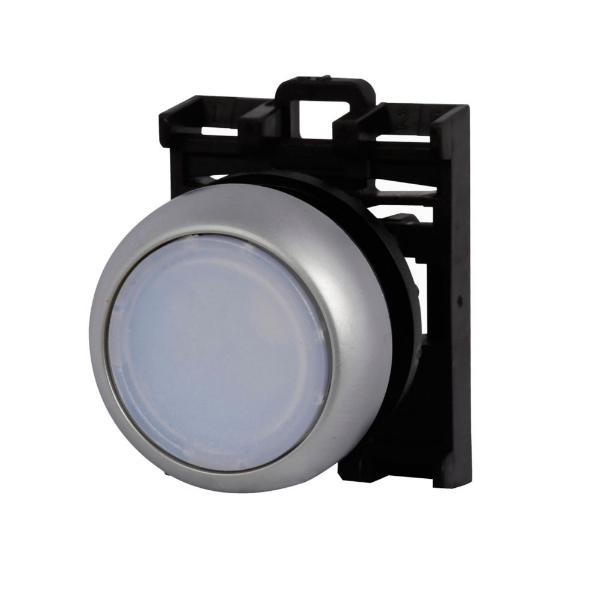

EATON M22-DL-W-X1 Illuminated Push Button Operator, Flash Green, 22.5mm Size, Momentary, White, Flush Button
Item: BH4RKC
Model: M22-DL-W-X1
20 In Stock
Ships within 2 days via
5.00% off
£29.98/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Action | Momentary |
|---|---|
| Application | Pushbutton |
| Bezel | Silver |
| Bezel Material | Silver |
| Color | White |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | White |
| Height | 1.17" |
| Illumination | Illuminated |
| Ip Rating | IP67, IP69K |
| Lamp Bulb Type | LED |
| Lamp Module Type | No Lamp Module Included |
| Legend | X1 |
| Length | 1.17" |
| Lens Color | White |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | When Ordering, Specify Inscription Per Catalog Number Suffix From The Symbols Library (See Pages V7-T1-129 To V7-T1-136) Into The Order Notes. |
| Number Of Indicator Lights | 1 |
| Number Of Operators | 1 |
|---|---|
| Operating Mode | Flush Momentary |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 1.17" |
| Overall Height | 1.17" |
| Overall Width | 0.39" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Special Features | M22 Series |
| Terminal Connection | Screw Clamp |
| Type | 22.5 mm Modular |
| Width | 0.39" |
| standard | BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
Product Details
Shipping Information
| Height | 2.97 |
|---|---|
| Length | 2.97 |
| Width | 0.99 |
| Country Of Origin | US |
|---|---|
| Weight | 0.004500 |
