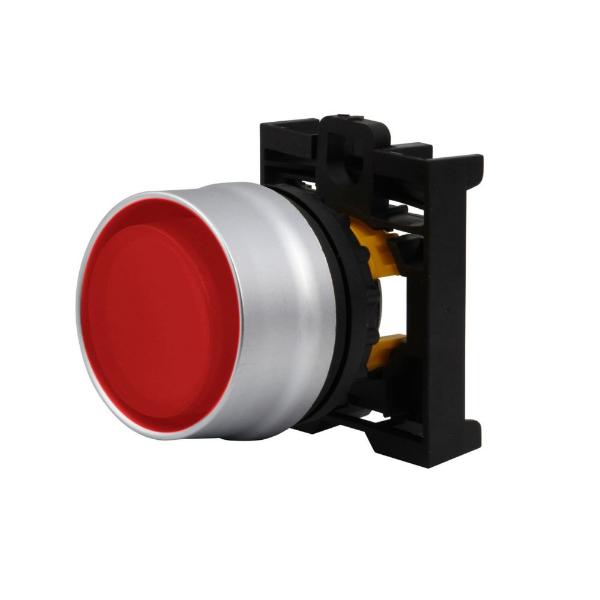

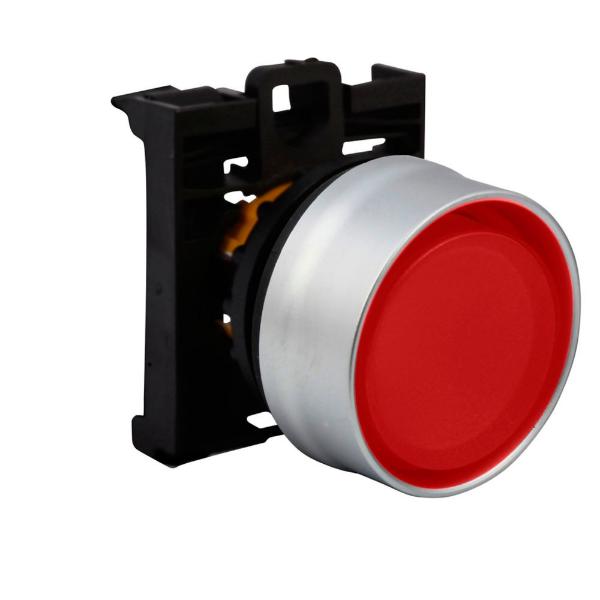

EATON M22-DGLH-R Extended Push Button, 22 mm Mounting Size, Non-Metallic, Momentary
Item: BH4RFG
Model: M22-DGLH-R
15 In Stock
Ships within 2 days via
5.00% off
£49.85/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Action | Momentary |
|---|---|
| Actuator Type | Extended, Button |
| Bezel | Silver Guarded |
| Bezel Material | Silver |
| Button Color | Red |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 1 1/2" |
| Illumination | Illuminated |
| Ip Rating | IP67, IP69K |
| Lamp Bulb Type | LED |
| Lamp Module Type | No Lamp Module Included |
| Length | 7" |
| Manufacturer Warranty Length | 1 yr. |
| Nema Enclosure Rating | NEMA 13, NEMA 4X |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 1 |
| Number Of Operators | 1 |
| Operating Cycles | 5 Million |
| Operating Mode | Momentary With Guard |
|---|---|
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 7" |
| Overall Height | 1 1/2" |
| Overall Width | 5" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Standard Logo | ccc.png,csa.png |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 5" |
| standard | BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
Product Details
Push Button Operator
Shipping Information
| height | 3.81 |
|---|---|
| length | 17.78 |
| width | 12.7 |
| country of origin | US |
|---|---|
| weight | 0.018000 |
Related Products
| Style | Model | Type | Height | Bezel | Ip Rating | Head Material | Bezel Material | Lamp Module Type | Contact Form | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M22-DGLH-G | Pushbutton | 4" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | 38.20 | |
| B | M22-DGLH-Y | Pushbutton | 1 1/2" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | 42.59 | |
| C | M22-DGLH-B | Pushbutton | 1 1/2" | Silver Guarded | IP67, IP69K | - | - | - | - | 41.98 | |
| D | M22-DGL-X | Pushbutton | 5" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | 28.98 | |
| E | M22-DGLH-W | Pushbutton | 1" | Silver Guarded | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | 39.30 | |
| F | M22-DL-G | 22.5 mm Modular | 0.39" | Silver | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | 18.19 | |
| G | M22-DLH-G | 22.5 mm Modular | 0.65" | Silver | IP67, IP69K | Plastic | Silver | No Lamp Module Included | - | 24.28 |
