EATON M22-DH-W M22 Modular Pushbutton M22 Modular Pushbutton Operator, 22.5 Mm, Extended, Momentary | BH4RHE

EATON M22-DH-W M22 Modular Pushbutton M22 Modular Pushbutton Operator, 22.5 Mm, Extended, Momentary | BH4RHE

EATON Datasheet

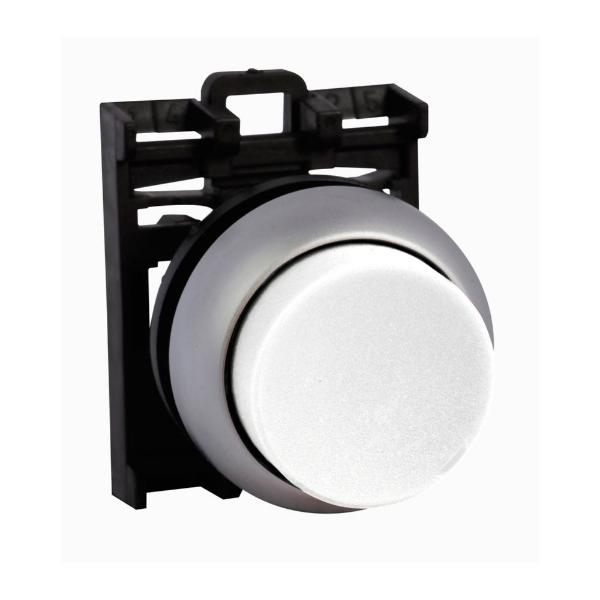

EATON M22-DH-W 2

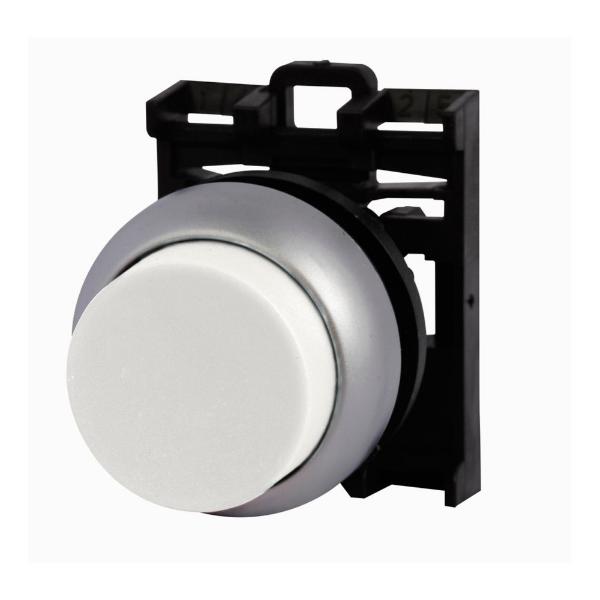

EATON M22-DH-W 3

EATON M22-DH-W Pushbutton Operator, 22.5 mm, Non-Illuminated, Silver, White, IP67, IP69K

Item: BH4RHE

Model: M22-DH-W

22 In Stock

Ships within 2 days via

~~£25.74~~

5.00% off

£24.46/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Specifications
Shipping Information
See Variants

Specifications

Action	Momentary
Actuator Function	Momentary
Actuator Type	Extended, button
Bezel	Silver
Bezel Material	Silver
Button Color	White
Features	Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter
Head Material	Plastic
Head/lens Color	White
Height	1 1/2"
Illumination	Non-illuminated
Ip Rating	IP67, IP69K
Length	7"
Manufacturer Warranty Length	1 yr.
Nema Enclosure Rating	NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Number Of Indicator Lights	0
Number Of Operators	1
Operating Cycles	5 million

Operating Temperature - Maximum	158°F
Operating Temperature - Minimum	-13°F
Operator Illumination	Non Illuminated
Operator Material	Polycarbonate
Overall Depth	2.26"
Overall Height	1"
Overall Width	1"
Panel Mounting Hole Diameter	22 mm
Product Type	Push Button Operators
Push Button Style	Extended
Resistance Properties	Corrosion Resistant
Series	M22 Series
Terminal Connection	Screw Clamp
Type	Pushbutton
Warranty	Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width	5"
standard	BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED

Shipping Information

Height	3.81
Length	17.78
Width	12.7

Country Of Origin	US
Weight	0.018000
