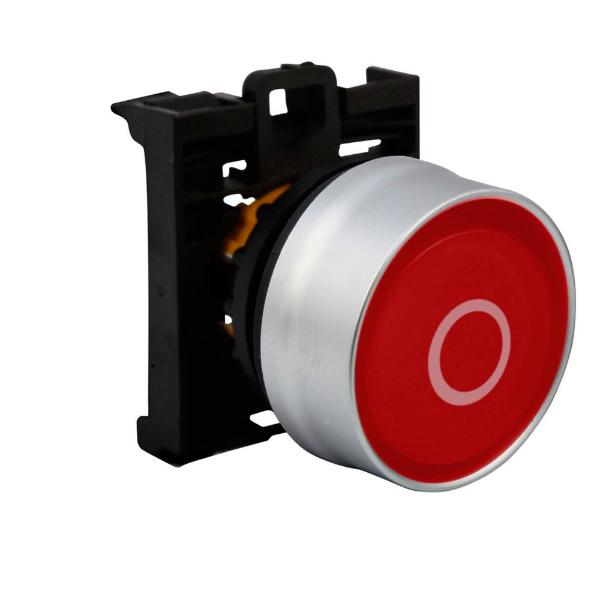

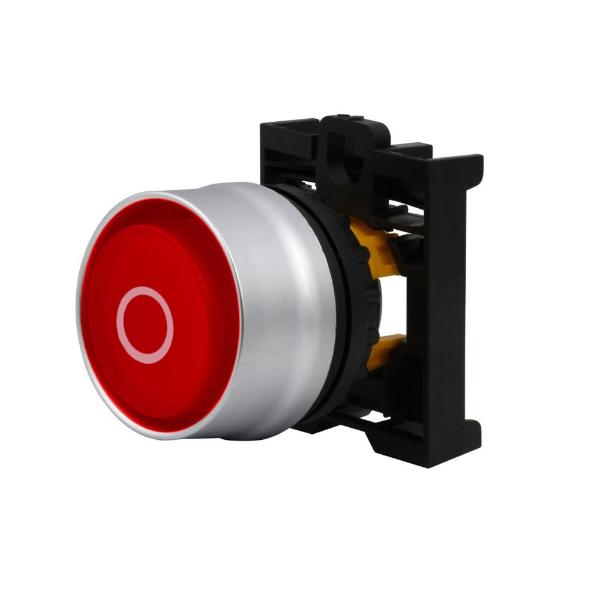

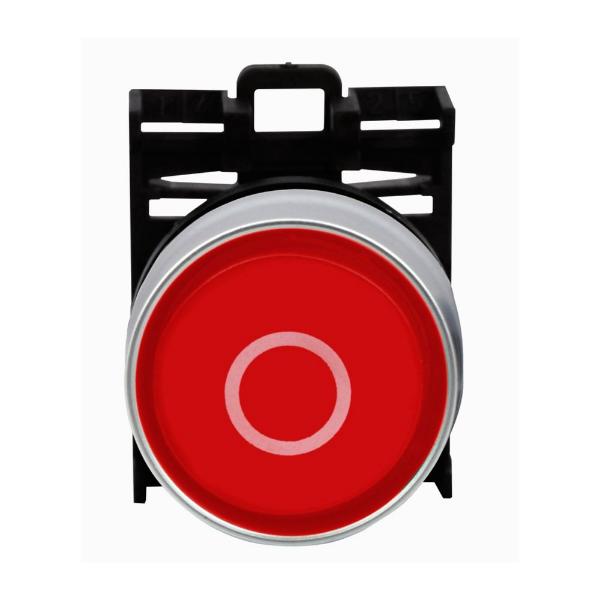

EATON M22-DGH-R-X0 Pushbutton Operator, 22.5 mm, Red Actuator, Silver Bezel, X0 Etching Code, Non-Illuminated
Item: BH4REU
Model: M22-DGH-R-X0
25 In Stock
Ships within 2 days via
5.00% off
£42.73/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Action | Momentary |
|---|---|
| Actuator Function | Momentary |
| Actuator Type | Extended with guard, button |
| Bezel | Silver Guarded |
| Bezel Material | Silver |
| Button Color | Red |
| Etching Code | X0 |
| Features | Field Convertible From Momentary To Maintained, Includes Contact Block Mounting Adapter |
| Head Material | Plastic |
| Head/lens Color | Red |
| Height | 1 1/2" |
| Illumination | Non-illuminated |
| Inscription | O |
| Ip Rating | IP67, IP69K |
| Legend | O |
| Length | 7" |
| Manufacturer Warranty Length | 1 yr. |
| Notes | Includes Contact Block Mounting Adapter. |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Cycles | 5 million |
|---|---|
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Polycarbonate |
| Overall Depth | 2.26" |
| Overall Height | 1" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Resistance Properties | Corrosion Resistant |
| Series | M22 Series |
| Standard Logo | gost.png,ce.png |
| Terminal Connection | Screw Clamp |
| Type | Pushbutton |
| Warranty | Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first. |
| Width | 5" |
| standard | BUREAU VERITAS, CCC, CE, CSA, GOST-R, LLOYD'S REGISTER, UL LISTED |
Product Details
Push Button Operator
Shipping Information
| height | 3.81 |
|---|---|
| length | 17.78 |
| width | 12.7 |
| country of origin | US |
|---|---|
| weight | 0.013500 |
Related Products
| Style | Model | Height | Illumination | Ip Rating | Terminal Connection | Mounting Type | Contact Form | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | M22-D4-S-X7 | 2" | Non-illuminated | IP67, IP69K | Screw Clamp | - | - | 289.20 | |
| B | M22-D4-S | 1 1/2" | Non-illuminated | IP67, IP69K | Screw Clamp | - | - | 278.60 | |
| B | M22-D4-S-ETCH | 1 1/2" | Non-illuminated | - | - | - | - | 247.38 | |
| C | M22-D-G-B100 | 14" | - | - | - | - | - | 1,285.60 | |
| D | M22-D-G-GB1 | 4" | Non-illuminated | - | Screw Clamp | Flush | - | 24.28 | |
| E | M22-DG-G | 4" | Non-illuminated | - | Screw Clamp | - | - | 38.62 | |
| F | M22-DGH-R | 1 1/2" | Non-illuminated | IP67, IP69K | Screw Clamp | - | - | 37.58 |
