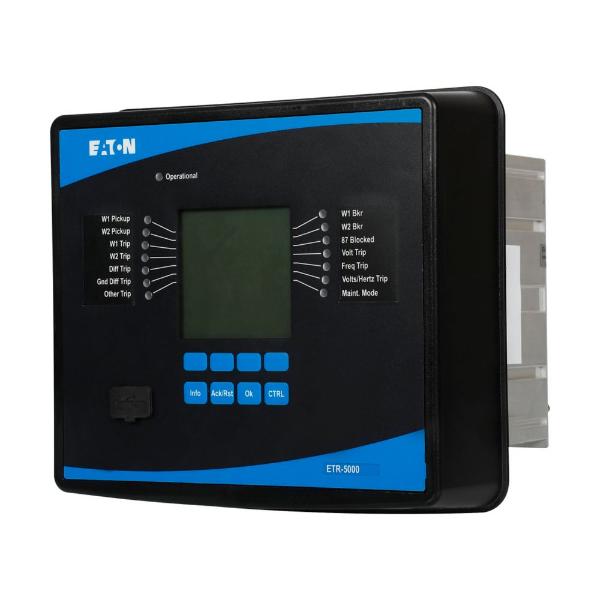

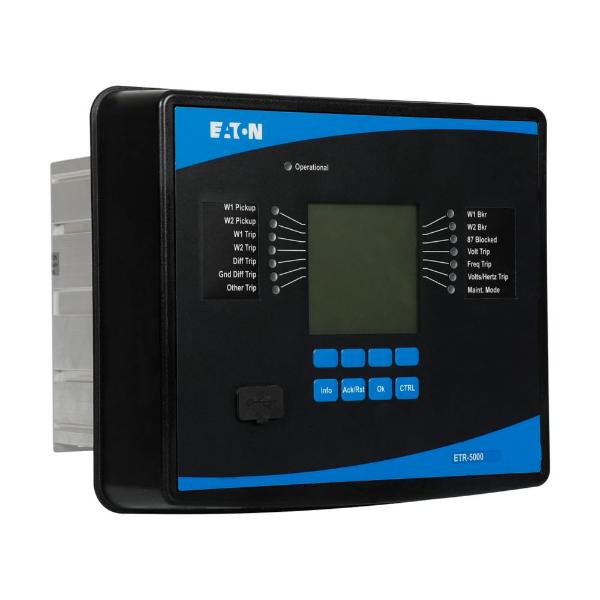

EATON ETR-5000-2B0HA1 Transformer Relay, 40 to 250 VAC, 19 to 300 VDC Supply, Digital Input
Item: BH9GNZ
Model: ETR-5000-2B0HA1
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
£29185.20/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Analog Inputs | 2 |
|---|---|
| Analog Outputs | 2 |
| Application | Transformer |
| Base Relay | ETR-4000 |
| Communication | 61850 Or Mbus TCP Or DNP3 TCP/UDP Over Enet RJ45 |
| Current Sensing Inputs | 2 |
| Digital Inputs | 8 |
| Digital Outputs | 9 |
| Frequency Rating | 50/60 Hz |
| Height | 8.7" |
| I/o Options | Trip Coil Monitor URTD Interface IRIG-B |
| Length | 8.06" |
| Modbus / Dnp3 Tcp | Over Ethernet RJ-45 |
| Mounting Type | Projection |
|---|---|
| Number Of Inputs | 8 |
| Number Of Outputs | 9 |
| Phase Current | 5A, 1A |
| Power Consumption | 40-250V AC/19-300V DC |
| Power Supply Range | 19-300V DC/40-250V AC |
| Sensing Inputs | Voltage Protection And Metering Current Protection And Metering Differential Protection Power Protection And Metering |
| Terminals | Removable |
| Type | Transformer Relay |
| Voltage Sensing Inputs | 1 |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 9 18/25" |
| Zone Selective Interlocking | 2 |
Product Details
Transformer Relay
Shipping Information
| height | 22.1 |
|---|---|
| length | 20.47 |
| width | 24.69 |
| country of origin | US |
|---|---|
| weight | 4.185000 |
Related Products
| Style | Model | Mounting Type | Height | Frequency Rating | Phase Current | Power Consumption | Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|
| A | ETR-4000-2A0LB1 | Projection | - | 50/60 Hz | 5A, 1A | 40-250V AC/19-300V DC | Transformer Relay | - |
RFQ
|
| B | ETR-5000-2A0BB0 | Semi-Flush | 8.7" | 50/60 Hz | 5A, 1A | 40-250V AC/19-300V DC | Transformer Relay | 27,177.44 | |
| B | ETR-5000-2A0BA0 | Semi-Flush | 8.7" | 50/60 Hz | 5A, 1A | 40-250V AC/19-300V DC | Transformer Relay | 25,051.68 | |
| B | ETR-5000-2A0BA1 | Projection | 8.7" | 50/60 Hz | 5A, 1A | 40-250V AC/19-300V DC | Transformer Relay | 25,199.29 | |
| B | ETR-5000-2A0BB1 | Projection | 8.7" | 50/60 Hz | 5A, 1A | 40-250V AC/19-300V DC | Transformer Relay | 27,339.84 | |
| B | ETR-5000-2A0CB1 | - | 8.7" | - | - | - | - | 27,767.95 | |
| B | ETR-5000-2A0DA0 | Semi-Flush | 8.7" | 50/60 Hz | 5A, 1A | 40-250V AC/19-300V DC | Transformer Relay | 26,646.04 |
