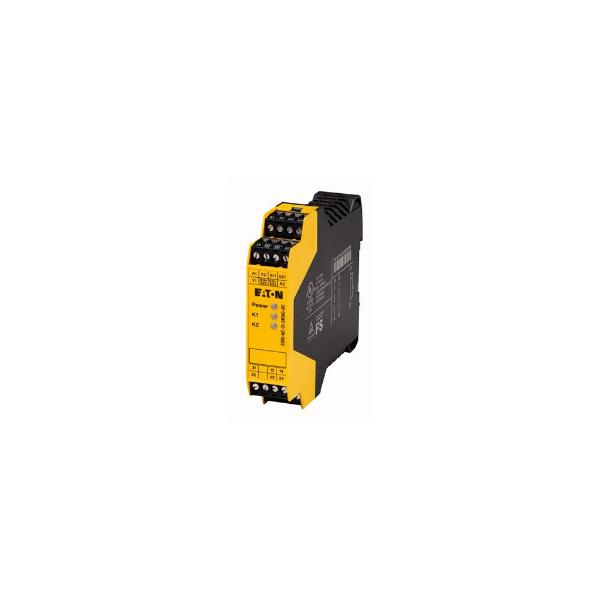

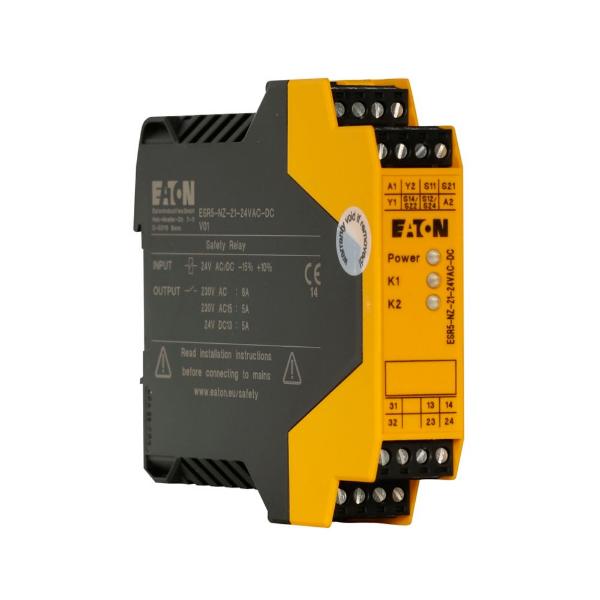

EATON ESR5-NZ-21-24VAC-DC Safety Two-Hand Relay, 24VDC/AC, 2-Channel, 2 Enabling Path

Item: BH9FXF
Model: ESR5-NZ-21-24VAC-DC
29 In Stock

Ships within 2 days via

£783.12
5.00% off
£743.95/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Application Emergency Stops, Gate Enable Device, Light Curtain (Ossd), Rope Pulls, Safety Switches, Two-Hand Control Stations
Body Depth 5"
Body Height 2"
Body Width 4.5"
Contact Rating (ac) 4A @ 24V
Contact Rating (dc) 4A @ 24V
Electrical Connection Type Screw
Environmental Protection Finger Safe
For Use With Coded Magnetic Safety Interlock Switch, Emergency Stop, Light Curtain (Ossd) All Easy Series Relays, Limit Switch, Rope Pulls, Two Hand Control
Frequency 50/60 Hz
Input Voltage 24V AC/DC
Ip Rating IP20
Length 5"
Maximum Operating Temperature 131°F
Minimum Operating Temperature -4°F
Number Of Inputs 2
Number Of Terminals 16
Output Switch Configuration 1 Nc, 2 No
Power Consumption 0.05 W
Product Height 2"
Product Name Eaton ESR5 Safety Relay
Product Width 4 1/2"
Relay Mounting Style Din-Rail
Response Time 50 ms
Voltage 24V AC/DC
standard CE CERTIFIED, CSA CERTIFIED, IEC RATED, UL LISTED

Product Details

Shipping Information

Height 5.08
Length 12.7
Width 11.43
Country Of Origin US
Weight 0.270000
