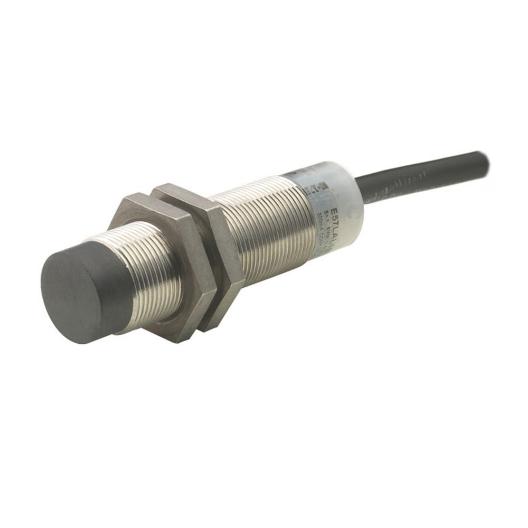

EATON E57LAL18T111SD Inductive Proximity Sensor, Straight, 18 Mm, Shielded, M12, 4 Pin
Item: BJ3CQM
Model: E57LAL18T111SD
In Stock
£0/unit
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Accuracy | Less Than 1% Sensing Range |
|---|---|
| Actuator Function | Shielded |
| Connection | M12 |
| Contact Configuration | NO PNP Open Collector |
| Contact Rating | 500 mA at 6-30V DC |
| Enclosure Material | Stainless Steel |
| Input Voltage | 6-48V DC |
| Ip Rating | IP67, IP69K |
| Length | 2.73" |
| Max. Operating Temp. | 158°F |
| Maximum Dc Current | 500 mA |
|---|---|
| Min. Operating Temp. | -13°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6, NEMA 6P |
| Number Of Pins | 4 |
| Product Height | 0.71" |
| Product Name | Eaton E57 Inductive Proximity Sensor |
| Product Width | 0.71" |
| Protection Type | Auto Reset |
| Type | Premium+ Inductive Proximity Sensor |
| Warranty | 1 yr. |
Product Details
Proximity Sensor
Shipping Information
| height | 1.8 |
|---|---|
| length | 6.93 |
| width | 1.8 |
| country of origin | US |
|---|---|
| weight | 0.045000 |
Related Products
| Style | Model | Ip Rating | Cable Length | Contact Rating | Max. Operating Temp. | Number Of Pins | Diameter | Height | Number Of Wires | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | E57LAL12A2EP | IP67 | 8" | 250 mA at 250V AC | 158°F | - | - | - | - | 786.20 | |
| A | E57LAL12A2E4 | IP67 | 157.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 357.97 | |
| B | E57LAL12A2EA | IP67, IP69K | - | 250 mA at 250V AC | 158°F | 3 | - | - | - | 472.67 | |
| B | E57LAL12A2E5 | IP67, IP69K | - | 250 mA at 250V AC | 158°F | - | - | - | - | 384.61 | |
| C | E57LAL12A2E | IP67, IP69K | 79.2 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 416.73 | |
| A | E57LAL12A2E3 | IP67 | 120 ft. | 250 mA at 250V AC | 158°F | - | - | - | - | 351.14 | |
| A | E57LAL12A2 | - | - | 250 mA @ 250V | - | - | 0.472 mm | 0.47" | - | 395.64 |
