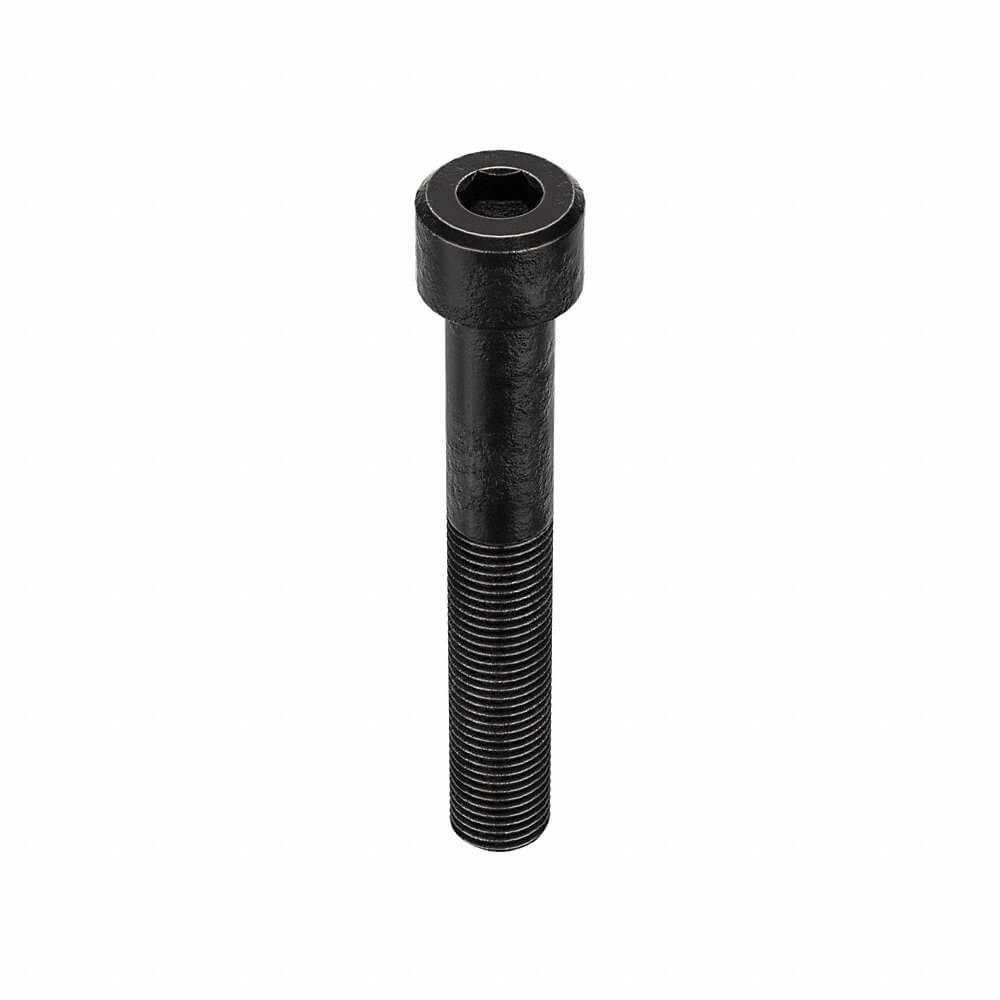

APPROVED VENDOR U07000.150.1000 Socket Head Cap Screw, 1 1/2 In - 6 Thread Size, Cylindrical, 10 In Lg., 1 1/2 In Head Ht.
Item: AB8LQB
Model: U07000.150.1000
In Stock
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Combined Material & Grade | Grade Steel |
|---|---|
| Dimensional Standards | ASME B18.3 |
| Display Qty | 1 |
| Drive Size | 1" |
| Drive Type | Socket |
| Finish | Black Oxide |
| Hardness | Rockwell C37-C45 |
| Head Dia. | 2 1/4" |
| Head Height | 1 1/2" |
| Head Type | Standard |
| Length | 10" |
| Material | Steel |
| Material Type | Steel |
| Maximum Temperature | 302°F |
|---|---|
| Min. Tensile Strength | 170000 psi |
| Minimum Temperature | -58°F |
| Minimum Thread Length | 3 3/4" |
| Screw Length | 10" |
| System Of Measurement | Imperial |
| Temp. Range | -58°F to +302°F |
| Tensile Strength | 170000 psi |
| Thread Direction | Right Hand |
| Thread Length | 3 3/4" |
| Thread Style | Partially Threaded |
| Thread Type | Coarse |
Product Details
Socket Head Cap Screw
Shipping Information
| height | 2.54 |
|---|---|
| length | 21.01 |
| width | 16.69 |
| hs code | 7318158045 |
|---|---|
| country of origin | TW |
| weight | 3.806600 |
