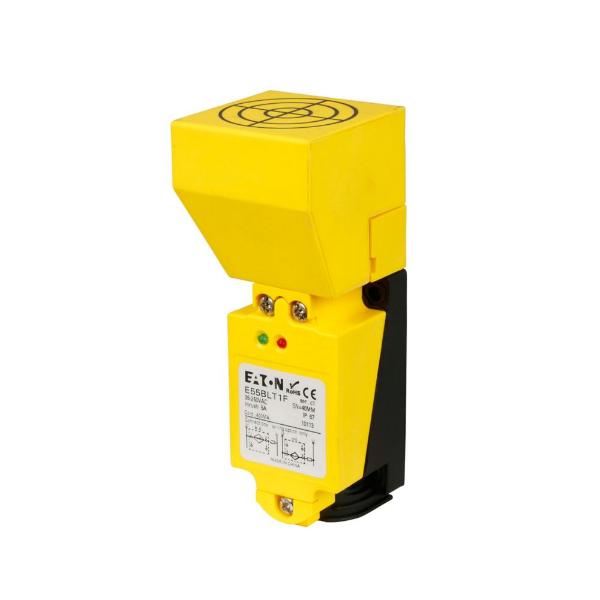

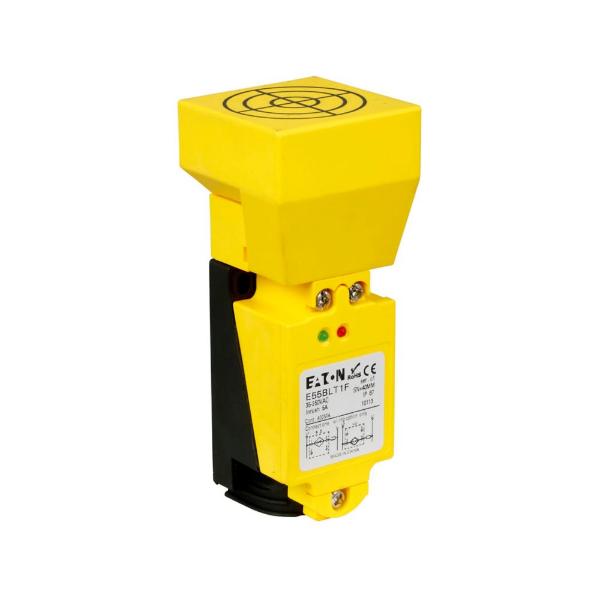

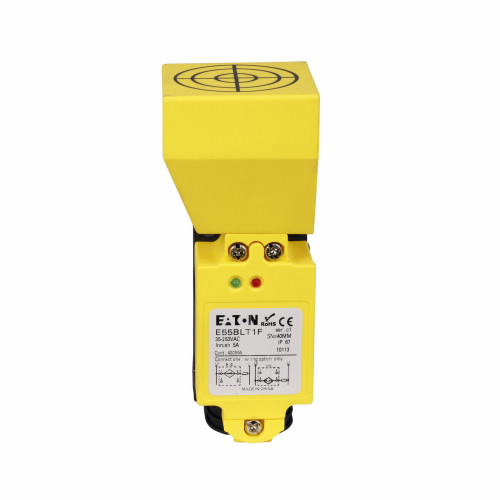

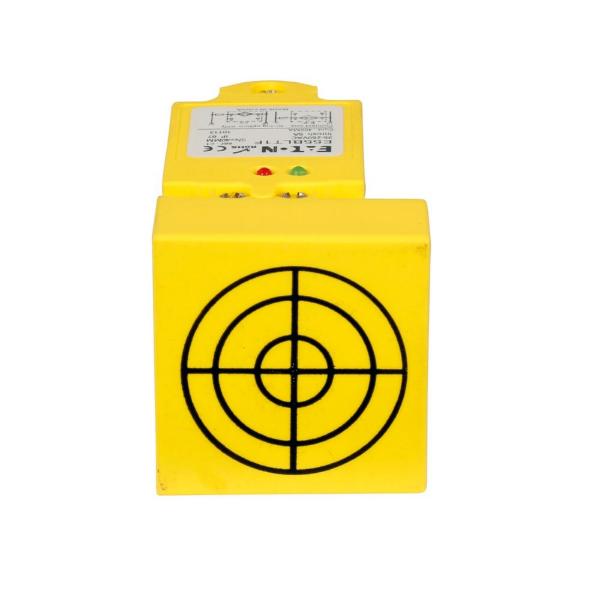

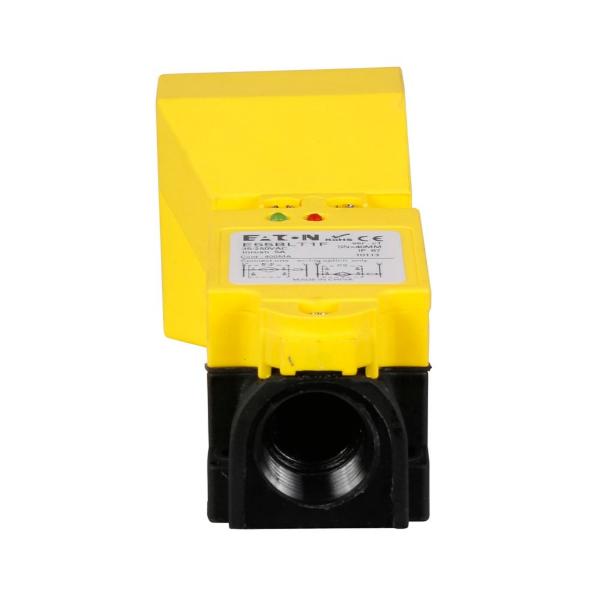

EATON E55BLT1F Inductive Proximity Limit Switch Sensor, 41 Mm Range, 400 mA At 250V, 2-Wire Ac, 35-250V
Item: BJ3BHZ
Model: E55BLT1F
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actuator Function | Unshielded |
|---|---|
| Connection | Screw Terminal |
| Contact Configuration | 2-wire AC, NO/NC |
| Contact Rating | 400 MA at 250V AC |
| Enclosure Material | PBT Resin |
| Height | 1.97" |
| Input Voltage | 35-250V |
| Ip Rating | IP67 |
| Led Indicator | Power On Output On |
| Length | 4 16/25" |
| Max. Ac Amps | 400 mA |
|---|---|
| Max. Operating Temp. | 158°F |
| Nema Enclosure Rating | NEMA 12, NEMA 13, NEMA 4, NEMA 4X, NEMA 6 |
| Operating Temperature - Min | -13°F |
| Product Name | Eaton 55 Series Photoelectric Sensor |
| Series | E55 |
| Standard Logo | rohs.png,ce.png |
| Type | Inductive Proximity Limit Switch Sensor |
| Warranty | 1 yr. |
| Width | 1.97" |
Product Details
Photoelectric Sensor
Shipping Information
| height | 5 |
|---|---|
| length | 11.79 |
| width | 5 |
| country of origin | US |
|---|---|
| weight | 0.225000 |
