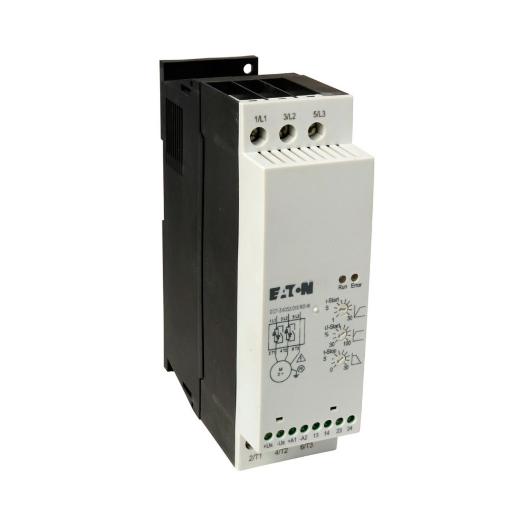

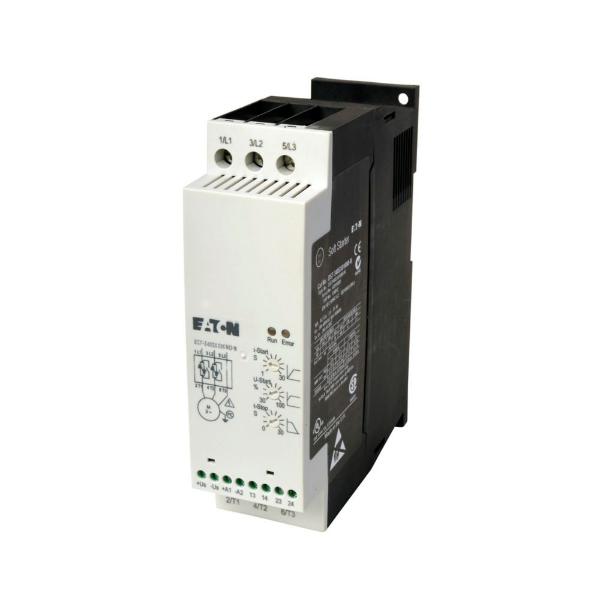

EATON DS7-340SX016N0-N Soft Start, 480 VAC, 15.2 A Output Current, No Bypass, NEMA 1, 3HP, 3 Phase, 208 VAC
Item: BJ2MRV
Model: DS7-340SX016N0-N
14 In Stock
Ships within 2 days via
5.00% off
£556.91/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Amperage Rating | 15.2A |
|---|---|
| Circuit Breaker Type | HFD3035 |
| Class | 25 A Class RK5 Max |
| Depth | 6 3/4" |
| Height | 2 1/4" |
| Rating | 3 Hp at 200V, 5 Hp at 230V, 10 Hp at 480V |
|---|---|
| Type | 14 Second Ramp, One Start Per Hour, 300% Current Limit at 40A |
| Warranty | Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First. |
| Width | 5 1/2" |
Product Details
Shipping Information
| height | 5.72 |
|---|---|
| length | 17.14 |
| width | 13.97 |
| country of origin | US |
|---|---|
| weight | 0.526500 |
Related Products
| Style | Model | Control Voltage | Height | Depth | Input Voltage | Enclosure Rating | Output Voltage | Application | Ramp Time | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DS7-340SX004N0-N | 24V DC | 2 1/2" | 7" | 480V AC | NEMA 1 | 480V AC | Constant And Variable Torque | 1 sec. to 30 sec. | 324.07 | |
| B | DS7-340SX009N0-N | 24V DC | 2 1/2" | 7" | 480V AC | NEMA 1 | 480V AC | Constant And Variable Torque | 1 sec. to 30 sec. | 434.27 | |
| C | DS7-340SX024N0-N | 24V DC | 2 1/2" | 7" | 480V AC | NEMA 1 | 480V AC | Constant And Variable Torque | 1 sec. to 30 sec. | 454.83 | |
| D | DS7-340SX007N0-N | - | 1" | 6" | - | - | - | - | - | 482.66 | |
| E | DS7-340SX012N0-N | 24V DC | 2 1/2" | 7" | 480V AC | NEMA 1 | 480V AC | Constant And Variable Torque | 1 sec. to 30 sec. | 383.15 | |
| C | DS7-340SX032N0-N | 24V DC | 5 1/2" | 6 1/2" | 480V AC | NEMA 1 | 480V AC | Constant And Variable Torque | 1 sec. to 30 sec. | 624.74 | |
| C | DS7-342SX009N0-N | 110-230V AC | 2 1/2" | 7" | 480V AC | NEMA 1 | 480V AC | Constant And Variable Torque | 1 sec. to 30 sec. | 412.51 |
