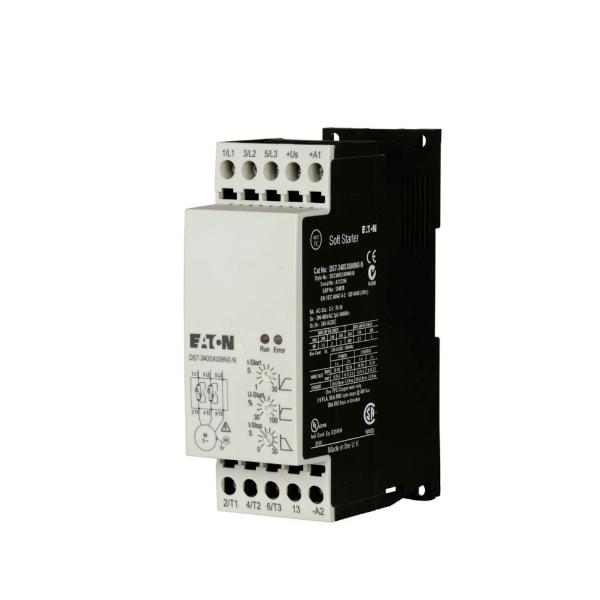

EATON DS7-340SX009N0-N Soft Start Controller With Internal Bypass, 24 VAC/VDC V Coil, Start/Stop Action

Item: BJ2MRR
Model: DS7-340SX009N0-N
27 In Stock

Ships within 2 days via

£521.12
5.00% off
£495.07/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Amperage Rating 7.8A
Application Constant And Variable Torque
Circuit Breaker Type HFD3020
Class 20 A Class RK5 Max
Control Voltage 24V DC
Depth 7"
Enclosure Rating NEMA 1
Frequency 50/60 Hz
Function Type Start Or Stop
Height 2 1/2"
Hp @ 3 Phase - 208v Ac 2 hp
Hp @ 3 Phase - 230v Ac 2 hp
Hp @ 3 Phase - 240v Ac 2 hp
Hp @ 3 Phase - 460v Ac 5 hp
Hp @ 3 Phase - 480v Ac 5 hp
Input And Output Types 2 Relay Output
Input Voltage 480V AC
Output Current 7.8A
Output Power 2 Hp @ 3 Phase, 200V Ac, 2 Hp @ 3 Phase, 240V Ac, 5 Hp @ 3 Phase, 480V Ac
Output Voltage 480V AC
Overall Depth 3.74"
Overall Height 5 1/8"
Overall Width 1.77"
Phase Three
Protects Motors And Critical Loads
Ramp Time 1 sec. to 30 sec.
Rating 2 Hp at 200V, 2 Hp at 230V, 5 Hp at 480V
Start Type Reduced Voltage Starting, Torque Limiting On Start Up
Starting Torque 30% to 80%
Stop Time 0 sec. to 30 sec.
Type 12 Second Ramp, One Start Per Hour, 300% Current Limit at 40A
Warranty Eaton Selling Policy 25-000, One (1) Year From The Date Of Installation Of The Product Or Eighteen (18) Months From The Date Of Shipment Of The Product, Whichever Occurs First.
Width 5 1/2"
With Bypass/no Bypass No Bypass
Display None
standard CSA22.2-14, IEC/EN 60947-4-2, UL 508

Product Details

Starter Control

Shipping Information

height 6.35
length 17.78
width 13.97
country of origin US
weight 0.405000
