EATON CN55AN3EB Freedom Nema Motor Control Contactor, Nema Freedom Reversing Contactor | BH9ZLR 6VMH9

EATON CN55AN3EB Freedom Nema Motor Control Contactor, Nema Freedom Reversing Contactor | BH9ZLR 6VMH9

EATON Datasheet

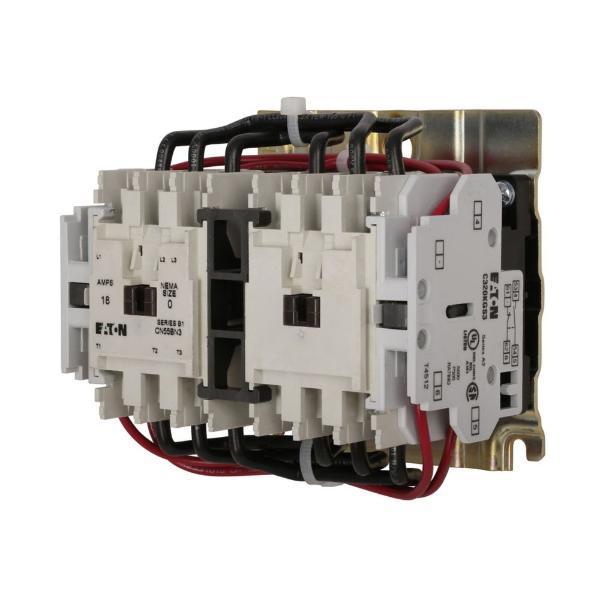

EATON CN55AN3EB 2

EATON CN55AN3EB NEMA Magnetic Contactor, Reversing, 3 Poles, NEMA Size 00, 9 A, 208 to 240 VAC

Item: BH9ZLR

Model: CN55AN3EB

25 In Stock

Ships within 2 days via

~~£2548.31~~

5.00% off

£2420.89/unit (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Specifications
Product Details
Shipping Information
See Variants

Specifications

Amps Rating	9A
Auxiliary Contacts Included	1NO/1NC
Coil Voltage	208V AC
Contactor Style	NEMA
Electrical Operating Durability	3000000
Embedded Surge Suppressor - New	No
Frame Size	A
Frequency	60 Hz
Full Load Current - Inductive	9A
Height	3 22/25"
Horsepower @ Single Phase - 240v Ac	1 hp
Horsepower @ Three Phase - 480v Ac	2 hp
Horsepower @ Three Phase - 600v Ac	2 hp
Hp @ Single Phase - 120v Ac	1/3 hp
Hp @ Three Phase - 208v Ac	1 1/2 hp
Hp @ Three Phase - 240v Ac	1 1/2 hp
Includes Auxiliary Contacts	Yes
Length	3.49"
Main Power Pole Contact Form	3NO

Max. Hp Rating	1/3 hp @ 115V, 1 hp @ 230V, 1-1/2 hp @ 208, 240V, 2 hp @ 480, 600V
Mounting Hole Diameter	1/4"
Mounting Postion	Horizontal, Vertical
Mounting Style	Panel
Nema Enclosure Rating	No Enclosure
Nema Size	00
Nominal Coil Voltage @ 60hz	208V AC
Notes	Common Control
Number Of Poles	3
Overall Depth	3.49"
Overall Height	3 22/25"
Overall Width	1 3/4"
Phase	3
Reversing Capability	Reversing
Series	Freedom Series
Standards	Csa, Ul Listed
Warranty	Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width	1 3/4"
Wire Termination Type	Screw

Product Details

Shipping Information

Height	9.86
Length	8.86
Width	4.44

Country Of Origin	US
Weight	1.395000

Related Products

A

Style	Model	Nema Size	Coil Voltage	Height	Hp @ 3 Phase - 240v	Hp @ 3 Phase - 480v	Hp @ 3 Phase - 575v	Hp @ 3 Phase - 208v	Depth	Price (ex. VAT)	Cart
A	CN55AN3AB	00	110-120V AC	3 22/25"	-	-	-	-	-	804.16
A	CN55BN3CB	-	440/480V AC	3 22/25"	-	-	-	-	-	2,157.36
A	CN55BN3AB	-	110/120V AC	3 22/25"	-	-	-	-	-	879.50
A	CN55AN3TB	00	24V AC	3 22/25"	-	-	-	-	-	2,031.92
A	CN55AN3CB	00	440-480V AC	3 22/25"	-	-	-	-	-	1,967.74
A	CN55BN3TB	-	24V AC	3 22/25"	-	-	-	-	-	2,157.36
A	CN55BN3BB	-	220/240V AC	3 22/25"	-	-	-	-	-	2,465.56
