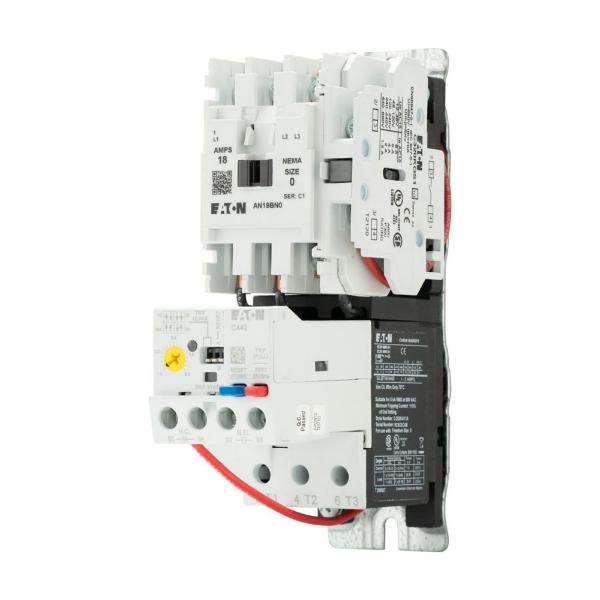

EATON AN19AN0T5E005 NEMA Magnetic Motor Starter, Non-Reversing, 3 Poles, NEMA Size 0, 9 A, 24 VAC Coil

Item: BJ7HZP
Model: AN19AN0T5E005
28 In Stock

Ships within 2 days via

£925.07
5.00% off
£878.81/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Accessory Type Freedom NEMA
Amps Rating 9A
Auxiliary Contacts Included 1NO
Coil Voltage 24V AC
Configuration Non Reversing
Frame Size S00
Frequency 50/60 Hz
Full Load Current Range 1-5A
Height 6 3/5"
Horsepower @ Single Phase - 240v Ac 1 hp
Horsepower @ Three Phase - 480v Ac 2 hp
Horsepower @ Three Phase - 600v Ac 2 hp
Hp @ Single Phase - 120v Ac 1/3 hp
Hp @ Three Phase - 208v Ac 1 1/2 hp
Hp @ Three Phase - 240v Ac 1 1/2 hp
Includes Auxiliary Contacts Yes
Length 4.9"
Max Current (ac) 9A
Maximum Overload Relay Current Setting 5A
Maximum Voltage Rating 600V AC
Minimum Overload Relay Current Setting 1A
Mounting Horizontal
Mounting Postion Horizontal
Mounting Style Surface
Nema Enclosure Rating No Enclosure
Nema Size 00
Nominal Coil Voltage @ 60hz 24V AC
Number Of Poles 3
Operator Not Available
Overall Depth 4.9"
Overall Height 6 3/5"
Overall Width 1.97"
Overload Protection Type Electronic
Phase Three
Relay C440 Electronic
Reversing Capability Non-reversing
Series Freedom Series
Special Features With C440 Eolr Standard Feature Set, Sel Reset, Sel Class (10A, 10, 20, 30)
Standards Ce, Csa, Ul Listed
Starter Style NEMA
Thermal Units Required None (Not Applicable to Electronic Overloads)
Trip Class Class 10A, Class 10, Class 20, Class 30
Type Starter
Warranty 1 yr.
Width 1.97"

Product Details

Motor Starter

Shipping Information

height 16.76
length 12.45
width 5
country of origin US
weight 0.945000
