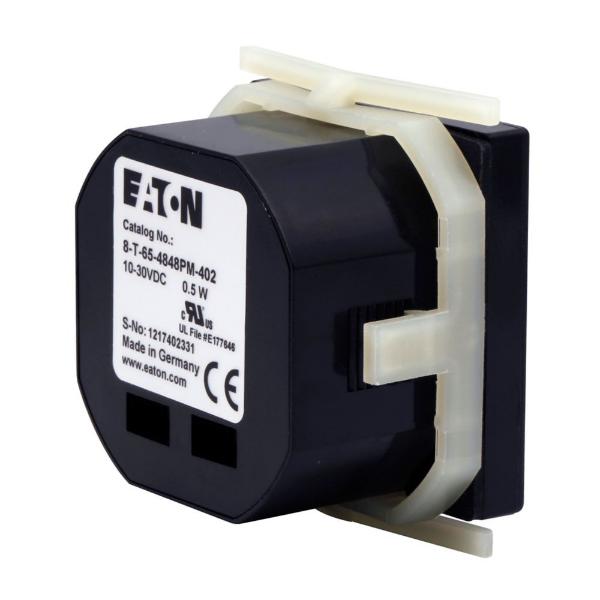

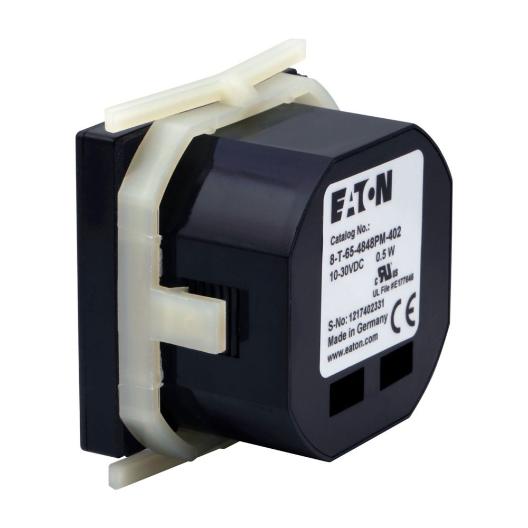

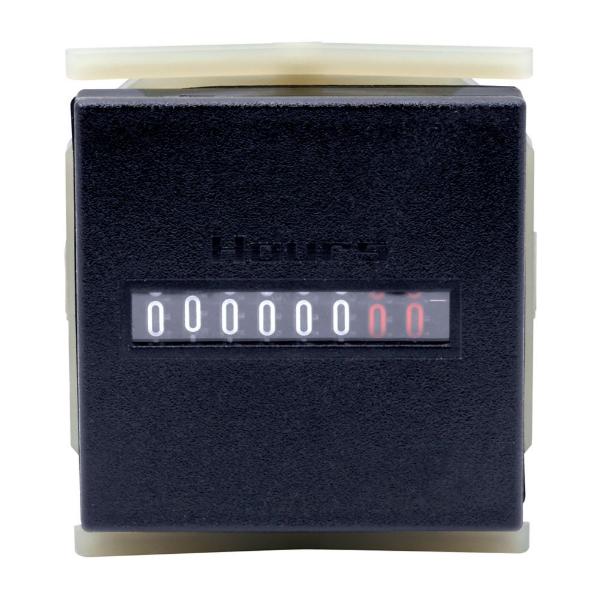

EATON 8-T-65-4848PM-402 Electric Round Hour Meter, 8 Digits

Item: BJ7ATJ
Model: 8-T-65-4848PM-402
29 In Stock

Ships within 2 days via

£134.02
5.00% off
£127.32/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Application UV Lamps, Display Panels In Cars, Respiratory Ventilators
Bezel Face Height 1 7/8"
Bezel Face Shape Square
Bezel Face Width 1 7/8"
Cutout Din Size 1/8"
Cutout Height 1 3/4"
Cutout Width 1 3/4"
Dim. 1 3/8" x 1 7/8"
Display Span 999999.99
Display Type Analog
Height 1.39"
Hour Unit Increment Hundreth
Input Voltage 10-30V DC
Input Voltage - Maximum 30V DC
Input Voltage - Minimum 10V DC
Length 1.38"
Mount Securing Method DIN Rail
Mounting Method 1/16 DIN Rail
Mounting Style Panel
Nema Enclosure Rating 4
No. Of Digits 8
Operating Temperature - Maximum 122°F
Operating Temperature - Minimum 5°F
Overall Depth 1 3/8"
Overall Height 1 3/8"
Overall Width 1 7/8"
Reset Type No Reset
Size 1.89" x 1.89"
Voltage Rating 10-30V DC
Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Width 1.89"

Product Details

Shipping Information

Height 3.53
Length 3.51
Width 4.8
Country Of Origin US
Weight 0.054000
