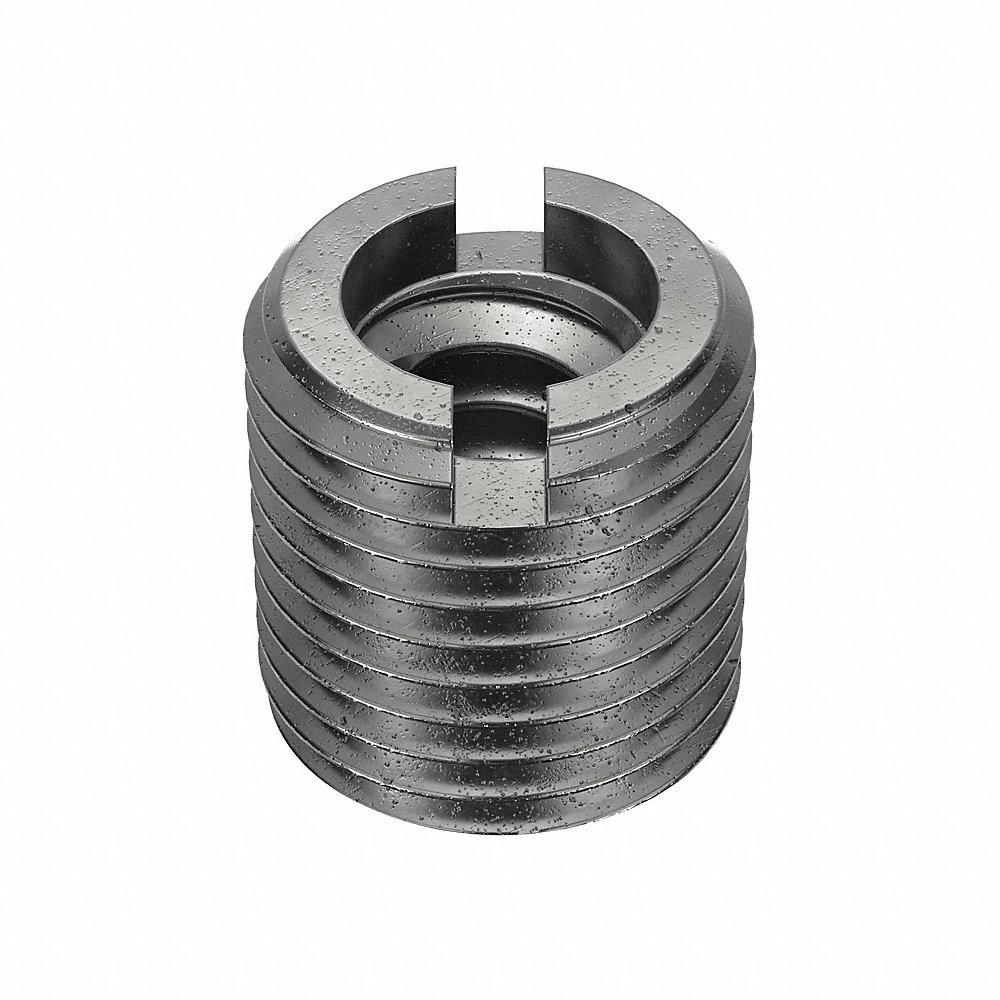

E-Z LOK 450-6 Self Locking Thread Insert, 10.5mm Length, Carbon Steel, 8.6mm Drill Size | CG6NAG 4ZE41

E-Z LOK 450-6-PK5 Thread Insert, M6x1 Int. Thread Size, M10x1.5 Ext. Thread Size, 10.5 mm Lg., CS, 5PK

Item: CG6NAG

Model: 450-6-PK5

17 In Stock

Ships within 2 days via

~~£25.61~~

5.00% off

£24.32/pkg. of 5 (Inc. VAT)

Trade Prices Available

Request Quote

Payment

Specifications
Product Details
Shipping Information
See Variants

Specifications

Item	Thread Insert
Brinell Hardness	163
Compatible Material	Metal
Compatible Tap Size	M10 X 1.5
Compatible With Grainger Part Number	4ZE54
Display Qty	5
Drill Size	8.6 mm
External Class	Class 6G
External Thread Fit	6G
External Thread Size	M10 x 1.5
Features	Pre Applied Adhesive Activates On Installation, Vibration Resistant
Finish	Black Phosphate
Full Cure Time	72 hrs.
Hardness	Rockwell Brinell 163
Insert Diameter	10.5 mm
Installation Method	Bolt And Jam Nut, Drive Tool, Screwdriver

Internal Class	Class 6H
Internal Thread Fit	6H
Internal Thread Size	M6 x 1
Length	10.5 mm
Material	Steel
Material Grade/class	Grade 12L14
Maximum Hole Diameter	8.6 mm
Min. Full Thread Depth	31/64"
Minimum Installation Depth	12.296875 mm
Overall Length	10 mm
Power Driver	4ZE54
System Of Measurement	Metric
Tensile Strength	78300 psi
Thread Type	Metric
Wall Type	Heavy Wall

Product Details

Shipping Information

Height	2.54
Length	2.54
Width	2.54

Country Of Origin	US
Weight	0.031500

Related Products

A

B

C

D

E

F

G

Style	Model	Internal Thread Size	External Thread Size	Wall Type	Min. Full Thread Depth	External Class	Internal Class	Thread Type	Power Driver	Price (ex. VAT)	Cart
A	319-3	#10-24	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	Coarse	4ZE53	21.08
B	319-332-PK10	#10-32	5/16"-18	Thin Wall	3/8"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE53	20.83
C	319-4	1/4"-20	3/8"-16	Thin Wall	7/16"	Class 2A	Class 2B	Coarse	4ZE54	24.66
D	319-428-PK10	1/4"-28	3/8"-16	Thin Wall	7/16"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE54	23.32
E	319-5	5/16"-18	7/16"-14	Thin Wall	1/2"	Class 2A	Class 2B	Coarse	4ZE55	24.28
F	319524PK10	5/16"-24	7/16"-14	Thin Wall	1/2"	Class 2A	Class 2B	UNF Internal, UNC External	4ZE55	28.89
G	319-6	3/8"-16	1/2"-13	Thin Wall	9/16"	Class 2A	Class 2B	Coarse	4ZE56	27.29
