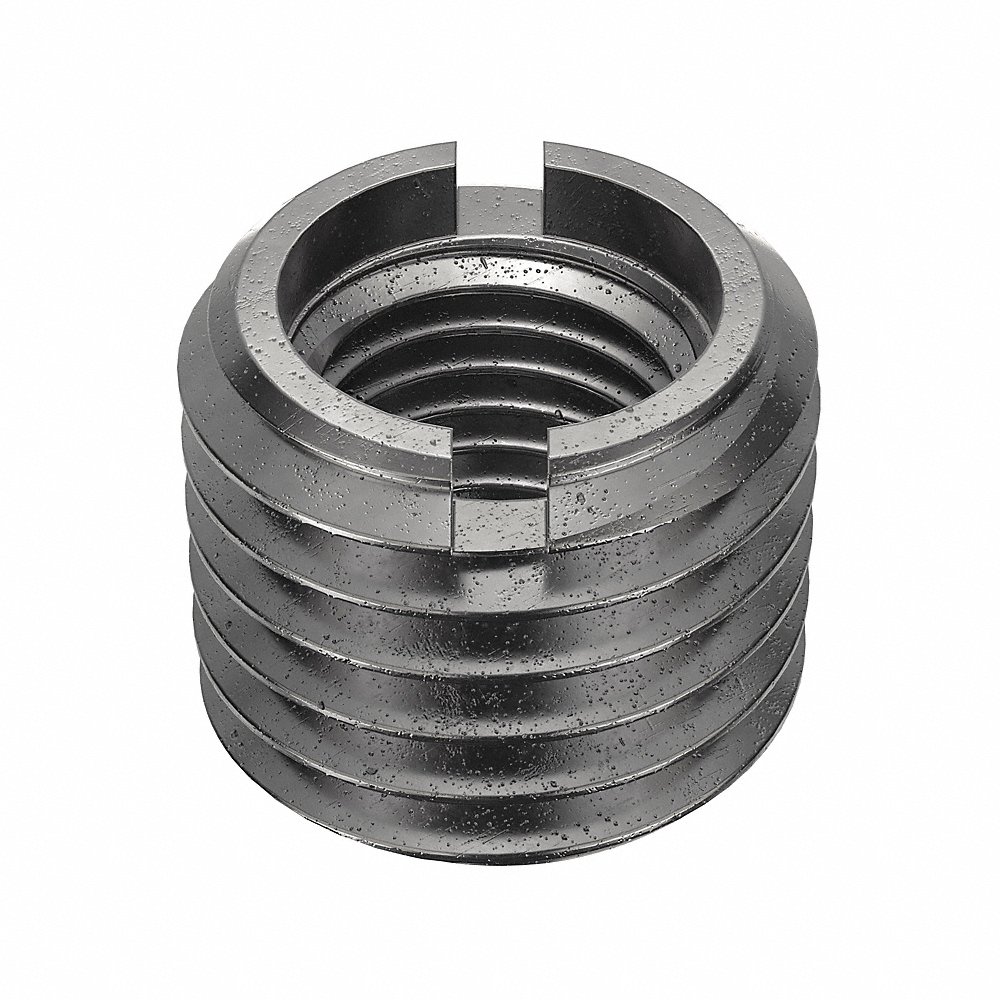

E-Z LOK 450-16-PK5 Thread Insert, M16x2 Int. Thread Size, M24x3 Ext. Thread Size, 20 mm Lg., Carbon Steel, 5PK
Item: CG6NAB
Model: 450-16-PK5
22 In Stock
Ships within 2 days via
5.00% off
£47.39/pkg. of 5
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Item | Thread Insert |
|---|---|
| Brinell Hardness | 163 |
| Compatible Material | Metal |
| Compatible Tap Size | M24 x 3 |
| Compatible With Grainger Part Number | 4ZE59 |
| Display Qty | 5 |
| Drill Size | 21 mm |
| External Class | Class 6G |
| External Thread Fit | 6G |
| Features | Pre Applied Adhesive Activates On Installation, Vibration Resistant |
| Finish | Black Phosphate |
| Full Cure Time | 72 hrs. |
| Hardness | Rockwell Brinell 163 |
| Insert Diameter | 24 mm |
| Installation Method | Bolt And Jam Nut, Drive Tool, Screwdriver |
| Internal Class | Class 6H |
|---|---|
| Internal Thread Fit | 6H |
| Length | 20 mm |
| Material | Steel |
| Material Grade/class | Grade 12L14 |
| Maximum Hole Diameter | 21 mm |
| Min. Full Thread Depth | 61/64" |
| Minimum Installation Depth | 24.203125 mm |
| Overall Length | 20 mm |
| Power Driver | 4ZE59 |
| System Of Measurement | Metric |
| Tensile Strength | 78300 psi |
| Thread Type | Metric |
| Wall Type | Heavy Wall |
Product Details
- For Use on Metal
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.139500 |
Related Products
| Style | Model | Internal Thread Size | External Thread Size | Wall Type | Min. Full Thread Depth | External Class | Internal Class | Thread Type | Power Driver | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 319-3 | #10-24 | 5/16"-18 | Thin Wall | 3/8" | Class 2A | Class 2B | Coarse | 4ZE53 | 21.08 | |
| B | 319-332-PK10 | #10-32 | 5/16"-18 | Thin Wall | 3/8" | Class 2A | Class 2B | UNF Internal, UNC External | 4ZE53 | 20.83 | |
| C | 319-4 | 1/4"-20 | 3/8"-16 | Thin Wall | 7/16" | Class 2A | Class 2B | Coarse | 4ZE54 | 24.66 | |
| D | 319-428-PK10 | 1/4"-28 | 3/8"-16 | Thin Wall | 7/16" | Class 2A | Class 2B | UNF Internal, UNC External | 4ZE54 | 23.32 | |
| E | 319-5 | 5/16"-18 | 7/16"-14 | Thin Wall | 1/2" | Class 2A | Class 2B | Coarse | 4ZE55 | 24.28 | |
| F | 319524PK10 | 5/16"-24 | 7/16"-14 | Thin Wall | 1/2" | Class 2A | Class 2B | UNF Internal, UNC External | 4ZE55 | 28.89 | |
| G | 319-6 | 3/8"-16 | 1/2"-13 | Thin Wall | 9/16" | Class 2A | Class 2B | Coarse | 4ZE56 | 27.29 |
