| Application | Speed Reducer |
|---|---|
| Bearing Type | Ball, Tapered Roller |
| Bore Dia. | 5/8" |
| Dimension U | 7/8" |
| Duty | Standard |
| Finish | Epoxy Paint |
| Frame | 56C |
| Gear Material | Hardened Steel, Manganese Bronze |
| Gear Ratio | 501 |
| Gear Type | Worm |
| Housing Material | Cast Iron |
| Housing Material Finish | Powdered Epoxy Paint |
| Input Connection Type | C-Face |
| Input Rpm | 1750 RPM |
| Input Shaft Diameter | 5/8" |
| Lubrication | Klubersynth UH1 6-460 |
| Max. Input Hp | 1/2 hp |
| Maximum Input Horsepower | 0.5 hp |
| Maximum Input Speed | 1750 RPM |
| Maximum Output Speed | 35 RPM |
| Maximum Output Torque | 449 lbs.-in. |
| Motor Frame Designation | 56C |
| Mounting Orientation | Any Position Except Input Motor Shaft Up |
|---|---|
| Mounting Position | All Except Shaft Up |
| Mounting Type | All Position Except Input Motor Shaft Up |
| Nominal Output Rpm | 35 RPM |
| Number Of Stages | 1 |
| Output Shaft Dia. | 7/8" |
| Output Shaft Type | Keyed |
| Output Torque @ 1/40 Hp | 3600 lbs.-in. |
| Overhung Load | 700 lbs. |
| Overhung Load Capacity | 700 lbs.-ft. |
| Pinion Material | Hardened Steel |
| Reducer Model No. | 83954 |
| Rotation | CW/CCW |
| Seal Type | Double Lip |
| Shaft Orientation | Right Angle |
| Single/double Output | Left Single Output |
| Solid/hollow Output Shaft | Solid |
| Speed Reducer Type | C Face |
| Standards | Agma |
| Worm Center Distance | 1 3/4" |
| Worm Gear Material | Bronze |

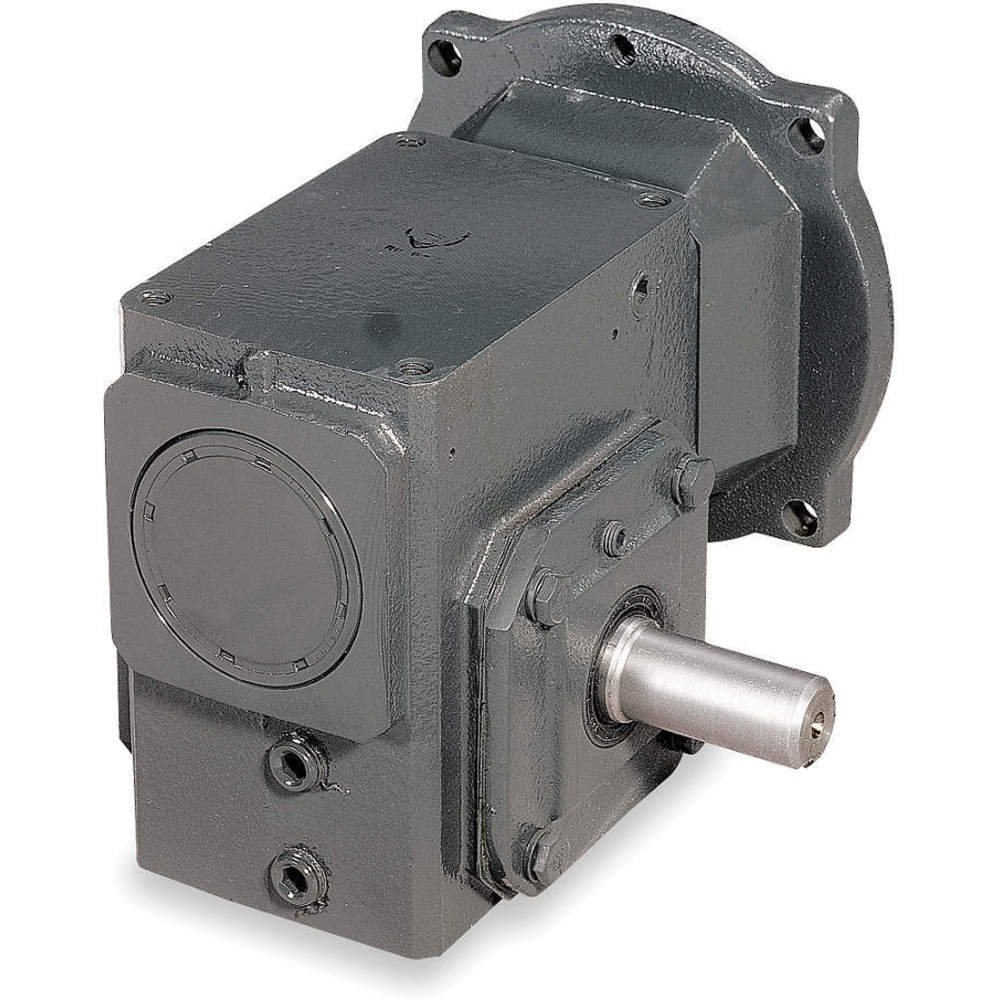

Speed Reducer
| height | 24.89 |
|---|---|
| length | 30.48 |
| width | 26.42 |
| hs code | 8483405050 |
|---|---|
| country of origin | US |
| weight | 9.000000 |
| Style | Model | gear ratio | rotation | max. input hp | gear type | shaft dia. | housing material | finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 2Z151 | 501 | CW/CCW | 1/2 hp | Worm | - | Cast Iron | Epoxy Paint | 967.21 | |
| A | 2Z152 | 251 | CW/CCW | 3/4 hp | Worm | - | Cast Iron | Epoxy Paint | 817.69 | |
| A | 2Z153 | 201 | CW/CCW | 3/4 hp | Worm | - | Cast Iron | Epoxy Paint | 746.11 | |
| B | 2Z154 | 12.5:1 | CW/CCW | 3/4 hp | Worm | - | Cast Iron | Epoxy Paint | 852.37 | |
| A | 2Z936 | 101 | CW/CCW | 3/4 hp | Worm | - | Cast Iron | Epoxy Paint | 817.69 | |
| C | 3GD39 | 601 | CW/CCW | 3/10 hp | Worm | - | Cast Iron | Epoxy Paint | 909.80 | |
| D | 3GD40 | 501 | CW/CCW | 1/2 hp | Worm | - | Cast Iron | Epoxy Paint | 843.75 |
