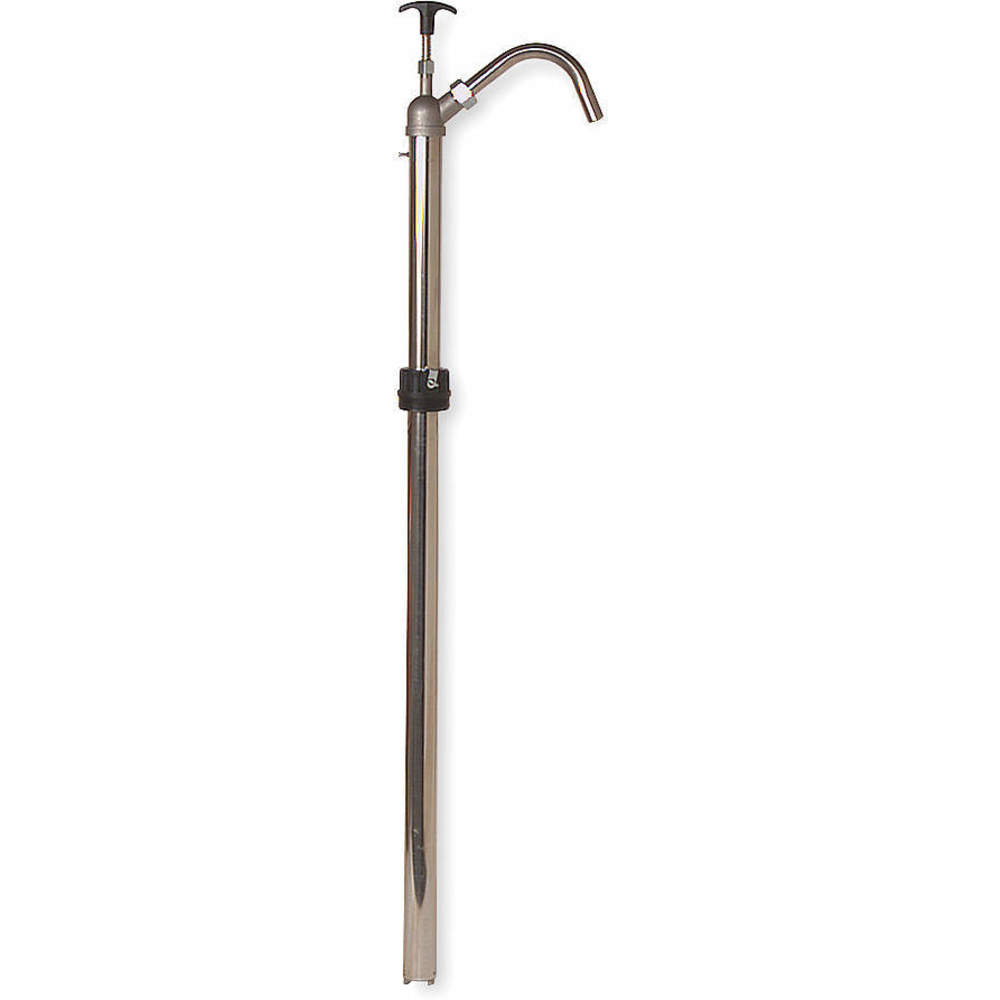

DAYTON 3BY48 Piston Drum Pump 22 Ounce Fits 55 Gallon Drum
Item: AC8LHQ
Model: 3BY48
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Action Type | Piston |
|---|---|
| Adapter Material | Polypropylene |
| Adapter Size | 2" |
| Adapter Type | Drum |
| Bung Connection Dia. | 2" |
| Compatible Chemicals | Antifreeze (Coolant), Automatic Transmission Fluid, Brake Fluid, DEF, Deionized Water, Diesel Fuel, Ethyl (Ethanol), Fresh Water, Gasoline, Isopropyl(Isopropanol), Kerosene, Methyl Ethyl Ketone (MEK), Salt Water, Sodium Hypochlorite/Bleach (to 20%) |
| Discharge Tube Inside Dia. | 5/8" |
| Discharge Tube Length | 7 1/2" |
| Discharge Tube Outlet I.d. | 5/8" |
| Discharge Tube Outlet O.d. | 3/4" |
| Discharge Tubing Material | Stainless Steel |
| Features | Good Chemical Resistance |
| Fits Container Size | 15 gal., 30 gal., 55 gal. |
| For Container Size | 15 gal., 30 gal., 55 gal. |
| For Container Type | Bucket, Drum, Pail |
| For Media Type | Antifreeze, Automatic Transmission Fluid, Bleach, Brake Fluid, Def, Diesel Fuel, Ethanol, Gasoline, Isopropanol, Kerosene, Ketones, Water |
| For Use On | 15, 30 And 55 Gal. Drums |
| For Use With | Solvents And Photographic Chemicals |
| Hose Inside Dia. | 5/8" |
| Hose Outside Dia. | 3/4" |
| Housing Material | Stainless Steel |
| Housing Material - Pumps | Stainless Steel |
| Includes | Bung Adapter |
| Includes Bung Adapter | Yes |
| Includes Discharge Hose | No |
| Includes Nozzle | No |
|---|---|
| Includes Spout | Yes |
| Includes Suction Tube | Yes |
| Inlet Size | 1" |
| Length | 43" |
| Max. Flow Rate | 20 oz./stroke |
| Max. Temp. | 140°F |
| Max. Viscosity | 2000 SUS |
| Metered | No |
| Ounces Per Stroke | 4 oz. to 22 oz. |
| Outlet Material | Stainless Steel |
| Overall Length | 43" |
| Piston Material | PTFE |
| Power Source | Hand Operated |
| Pump Body Material | Stainless Steel |
| Pump Package Type | Basic Pump With Spout |
| Seal Material | Packing Gland, Repairable |
| Self Priming | Yes |
| Self-priming | Yes |
| Suction Tube Length | 37" |
| Suction Tube O.d. | 1 1/2" |
| Suction Tube Outside Dia. | 1 1/2" |
| Wetted Material | Stainless Steel, PTFE |
| Wetted Materials | PTFE, Stainless Steel |
Product Details
Hand Operated Drum Pump
Shipping Information
| height | 7.62 |
|---|---|
| length | 109.22 |
| width | 7.62 |
| hs code | 8413200000 |
|---|---|
| country of origin | TW |
| weight | 2.065500 |
