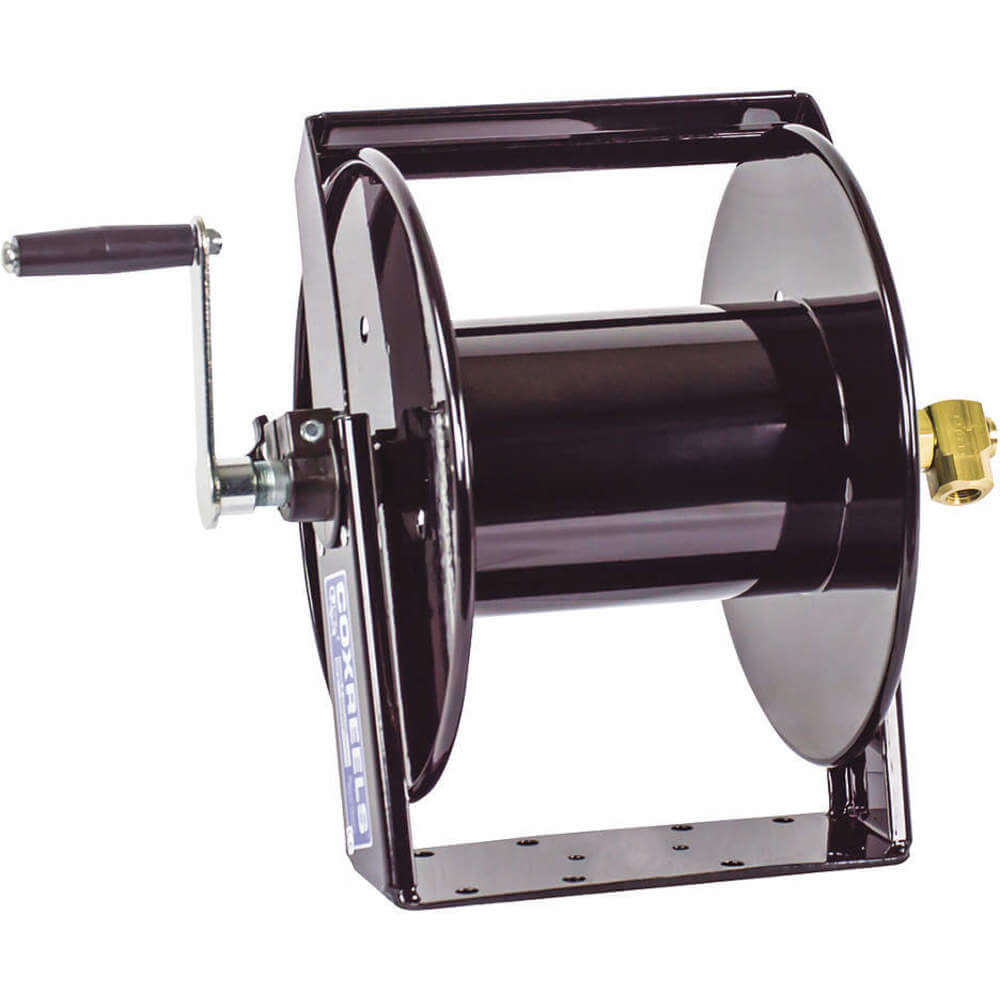

| Item | Hand Crank Hose Reel |
| Application | Air, Water, Oil, Washdown, Pressure Washing, Agricultural Spraying, Chemical Fluid Transfer |
| Base Motion Type | Stationary |
| Base Size | 10.25" x 4" |
| Color | Black |
| Drive Type | Hand Crank |
| Duty Rating | Medium Duty |
| Fasteners Included | No |
| Finish | Powder Coated |
| For Dual Hose | No |
| Hose Included | No |
| Hose Length | 125 ft. |
| Hose Reel Primary Application | Air, Chemical Fluid Transfer, Pest Control, Pressure Washer, Spraying Operation, Washdown, Water |
| Housing Material | Steel |
| Includes Gooseneck | No |
| Includes Leader Hose | No |
| Material | Steel |
| Mounting | Wall |
| Mounting Size | 7" x 3" |
| Not Included | Hose, Mounting Bracket |
| Number Of Mounting Holes | 8 |
| Overall Height | 18 1/2" |
| Overall Length | 17" |
| Reel Material | Steel |
| Swivel Inlet Gender | Female |
| Swivel Material | Brass |
| Swivel Outlet Gender | Female |
| Width | 19" |
| Bearing Construction | EPDM |
| Bearing Type | EPDM Bearings |
| Enclosed Reel | No |
| Features | Adjustable Tension Brake, CNC Spun Discs, Control Bar, Designed For Swivel Mount (Sold Separately) Heavy Duty Steel Construction |
| Handle Length | 3 1/2" |
| Hose Inside Dia. | 1/2" |
| Hose Outside Dia. | 7/8" |
| Hose Reel Type | Wall Mount Hose Reel |
| Max. Pressure | 4000 psi |
| Max. Temp. | 225°F |
| Mount Base Height | 4" |
| Mount Base Width | 10 1/4" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 3" |
| Overall Dimensions | 17" L x 19" W x 18 1/2" H |
| Reel Diameter | 5 1/2" |
| Reel Width | 8" |
| Seal Material | Viton |
| Seal Material | FKM |
| Standards | CE |
| Swivel Inlet Thread Size | 1/2" |
| Swivel Inlet Type | NPT |
| Swivel Outlet Type | NPT |
| Weight | 19 lbs. |
| Ship weight (kg) | 8.55 |
| Ship height (cm) | 46.99 |
| Ship length (cm) | 43.18 |
| Ship width (cm) | 48.26 |
| HS code | 0674255821873 |
| Country of Origin | US |
| Product | Model | Hose Length | Inside Dia. | Outside Dia. | Price | |
|---|---|---|---|---|---|---|
 |
SM17-3-250 | 250 ft. | 3/8" | 5/8" | £271.32 |
