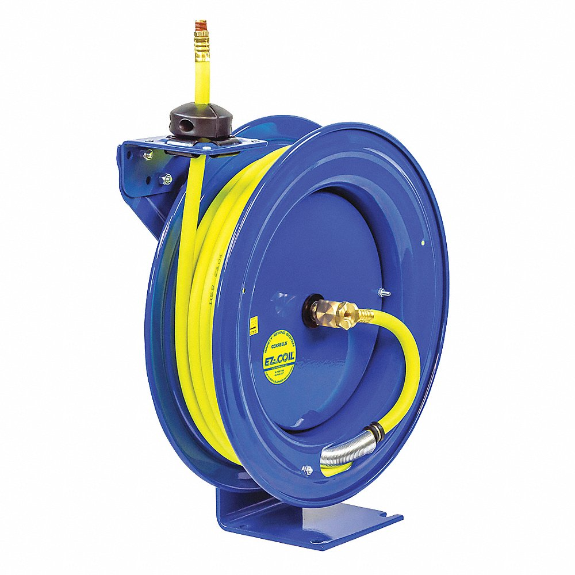

COXREELS EZ-P-LP-350-HV Spring Return Hose Reel, 50 ft. Length, 3/8 Inch I.D., 3/8 Inch MNPT, Brass, Blue
Item: CF3KVQ
Model: EZ-P-LP-350-HV
In Stock
Get it by Thursday, Apr 16
5.00% off
£741.61/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Hose Reel |
|---|---|
| Base Motion Type | Stationary |
| Base Size | 6" x 6" |
| Bearing Type | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | 1" Solid Steel Axle, External Fluid Path, Heavy Gauge 1/4" Steel Base & Support Post For Maximum Stability, Long Lasting & Chip Resistant Rust Inhibiting Cpc Powder Coat Finish, Multi-Position Lock Ratchet Mechanism Secures Hose At Desired Length, Non Corrosive Stainless Steel Pawl Spring, Pawl & Zinc Plated Ratchet, Rolled Edges And Ribbed Discs Provide Strength And Safety, Solid One Piece |
| Finish | Powder Coated |
| Fitting Gender | Male x Male |
| Fitting Size | 3/8" x 3/8" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 18 1/4" |
| Hose Capacity | 50 ft. |
| Hose Color | Yellow |
| Hose Cover Material | Hybrid Rubber, PVC |
| Hose End Configuration | 3/8" MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/8" |
| Hose Fitting A Type | NPT |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/8" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inside Dia. | 3/8" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 5/8" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Wall Mount Hose Reel |
| Includes | Hose, Hose Guard, Hose Stop |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
|---|---|
| Length | 17 1/4" |
| Max. Pressure | 300 psi |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 150°F |
| Minimum Operating Temperature | -40°F |
| Mount Base Height | 6" |
| Mount Base Width | 6" |
| Mount Hole Diameter | 1/2" |
| Mounting Hole Center To Center Height | 5" |
| Mounting Hole Center To Center Width | 4" |
| Mounting Size | 4" x 5" |
| Number Of Guide Arms | 1 |
| Number Of Mounting Holes | 4 |
| Overall Height | 18 1/4" |
| Overall Length | 17 1/4" |
| Overall Width | 6 1/8" |
| Pedestal Type | Single Pedestal |
| Reel Color | Blue |
| Reel Diameter | 17 1/8" |
| Reel Finish | Powder Coated |
| Reel Material | Steel |
| Reel Width | 6 3/4" |
| Speed Limited Retraction | Yes |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/8" |
| Swivel Outlet Thread Size | 3/8"-18 |
| Swivel Outlet Type | NPT |
| Twin Hose Compatible | No |
| Width | 6 1/8" |
Product Details
Shipping Information
| Height | 47.32 |
|---|---|
| Length | 44.02 |
| Width | 17.14 |
| Country Of Origin | US |
|---|---|
| Weight | 19.350000 |
Related Products
| Style | Model | Hose Capacity | Fitting Size | Speed Limited Retraction | Number Of Guide Arms | Overall Length | Overall Width | Hose Outside Dia. | Hose Inside Dia. | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | P-LP-325-HV | 25 ft. | 3/8" x 3/8" | No | 1 | 13 3/4" | 6 1/4" | 5/8" | 3/8" | 399.64 | |
| A | P-LP-350-HV | 50 ft. | 3/8" x 3/8" | No | 1 | 17 1/8" | 6 3/4" | 5/8" | 3/8" | 564.44 | |
| A | P-LP-425-HV | 25 ft. | 1/2" x 1/2" | No | 1 | 17 1/8" | 7" | 13/16" | 1/2" | 486.96 | |
| A | P-LP-450-HV | - | - | - | - | 17.33" | - | - | - | 696.14 | |
| B | SH-N-3100-HV | 100 ft. | 3/8" x 3/8" | No | 1 | 24" | 8 1/4" | 5/8" | 3/8" | 955.36 | |
| B | SH-N-350-HV | - | - | - | - | 19 1/2" | 8 1/4" | - | - | 719.69 | |
| B | SH-N-375-HV | 75 ft. | 3/8" x 3/8" | No | 1 | 24" | 8 1/4" | 5/8" | 3/8" | 786.76 |
