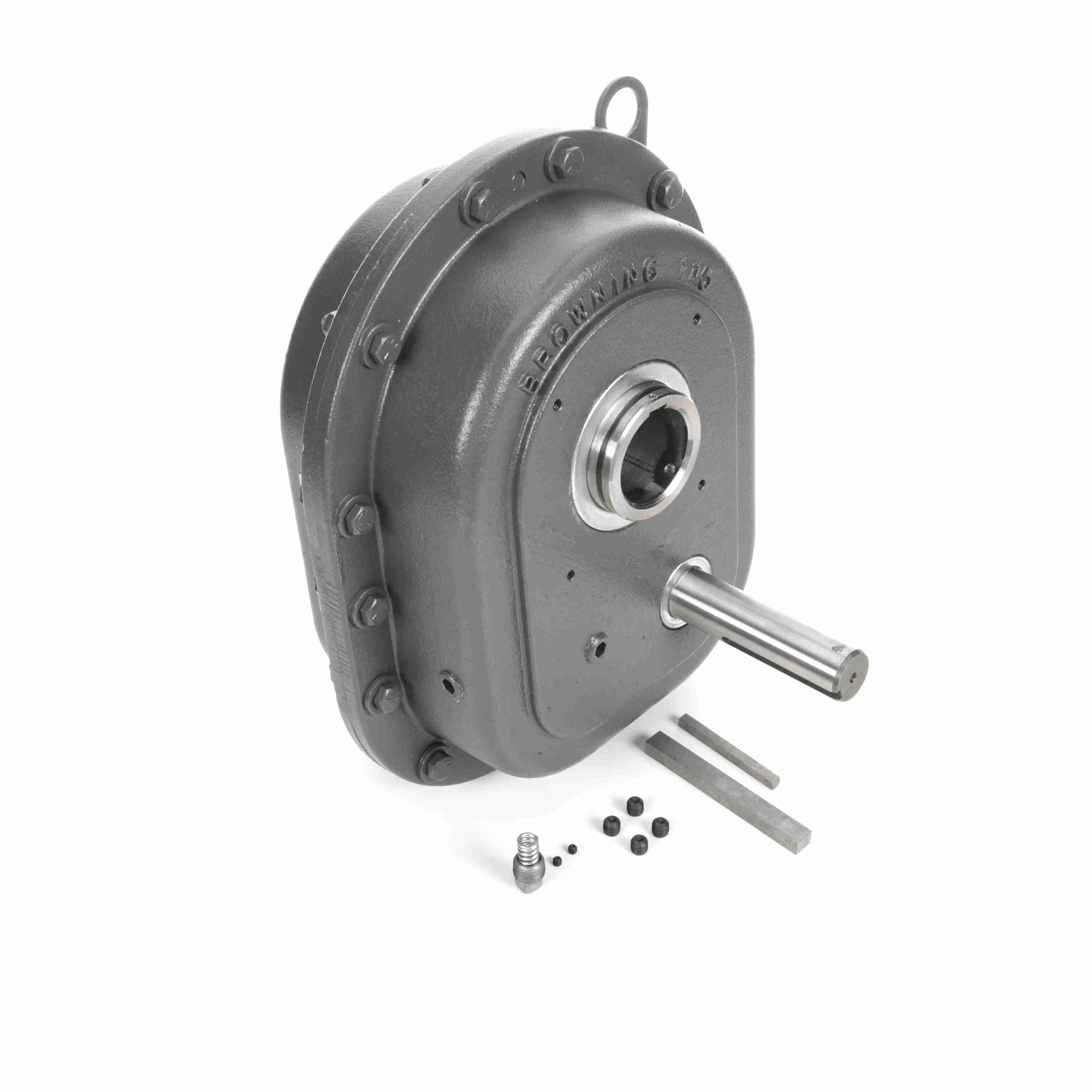

| Item | Speed Reducer |
| Base Included | No |
| Bolt Hole Dia. | 3/8" |
| Bore Dia. | 1.938" |
| Bore Type | Finished |
| Center Distance | 4 9/25" |
| Efficiency | 80% |
| Fan Cooled | No |
| Gear Ratio | 25:1 |
| Gear Type | Helical |
| Height | 14 2/25" |
| Housing Material | Cast Iron |
| Hp | 1 hp |
| Input Dia. | 1.13" |
| Input Rating Value Plus Um | 1 hp |
| Input Rpm | 1750 RPM |
| Input Shaft Dia. | 1.13" |
| Input Shaft Length | 4 6/25" |
| Input Style | Shaft |
| Length | 11" |
| Lubrication | Synthetic/Mineral Oil |
| Max. Overhung Load Value And Um | 2910 lbs. |
| Motor Included | No |
| Mounting Method | Direct Mounted |
| Nominal Ratio | 25:1 |
| Output Bore Range | 15/16" to 1 15/16" |
| Output Bushing Part Number | 115BU |
| Output Dia. | 1 15/16" |
| Output Keyway Size | 1/2" x 1/8" |
| Output Rpm | 70 RPM |
| Output Type | Bushed |
| Overall Length | 10 4/5" |
| Overall Width | 11" |
| Product Series | SMFP Series |
| Reducer Type | Parallel |
| Reduction Type | Double |
| System Of Measurement | Imperial |
| Torque Rating | 36.013 lbs.-in., 720.27 lbs.-in. |
| Type | Type SMFP |
| Weight | 33.596 Kg |
| Width | 10 4/5" |
| Ship weight (kg) | 33.3 |
