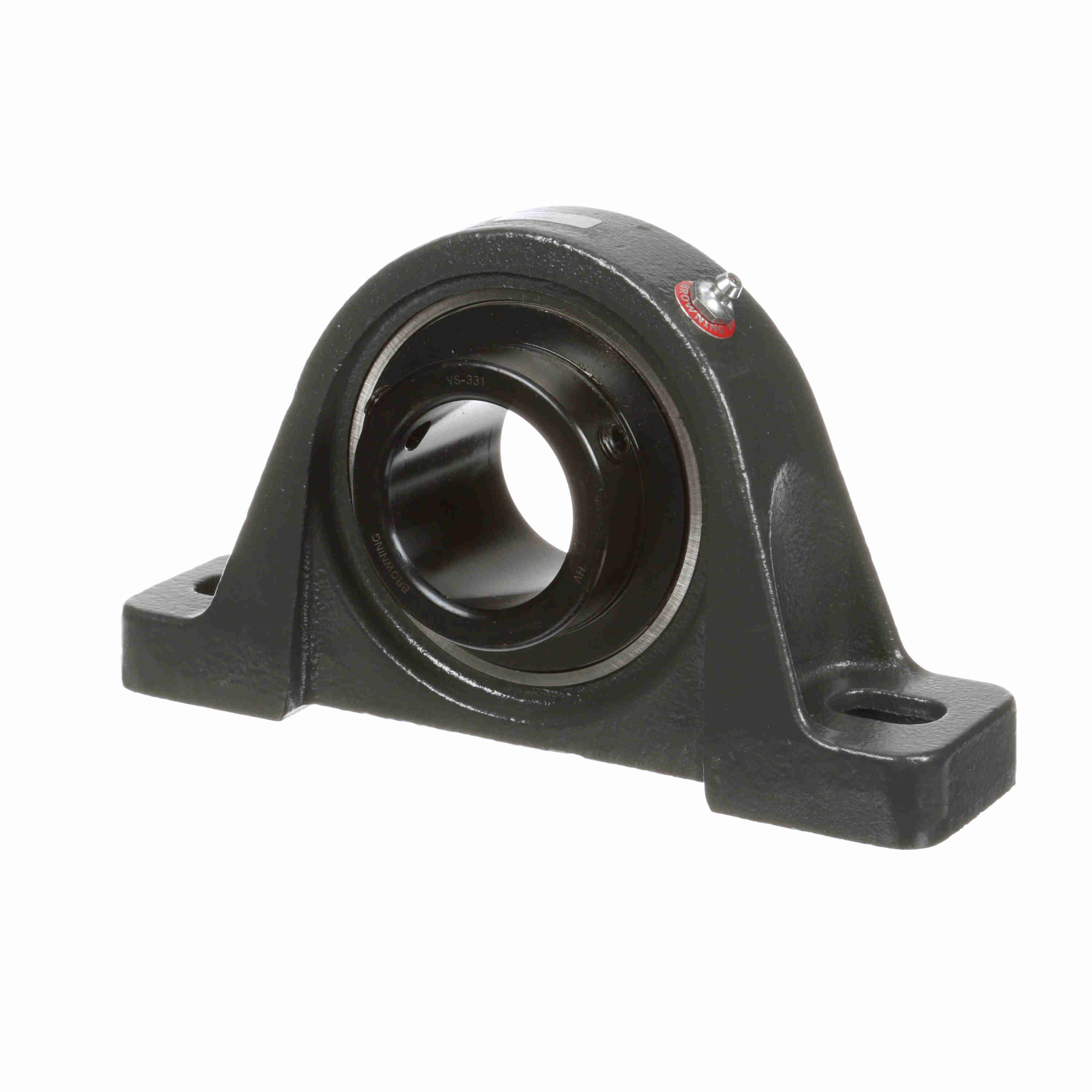

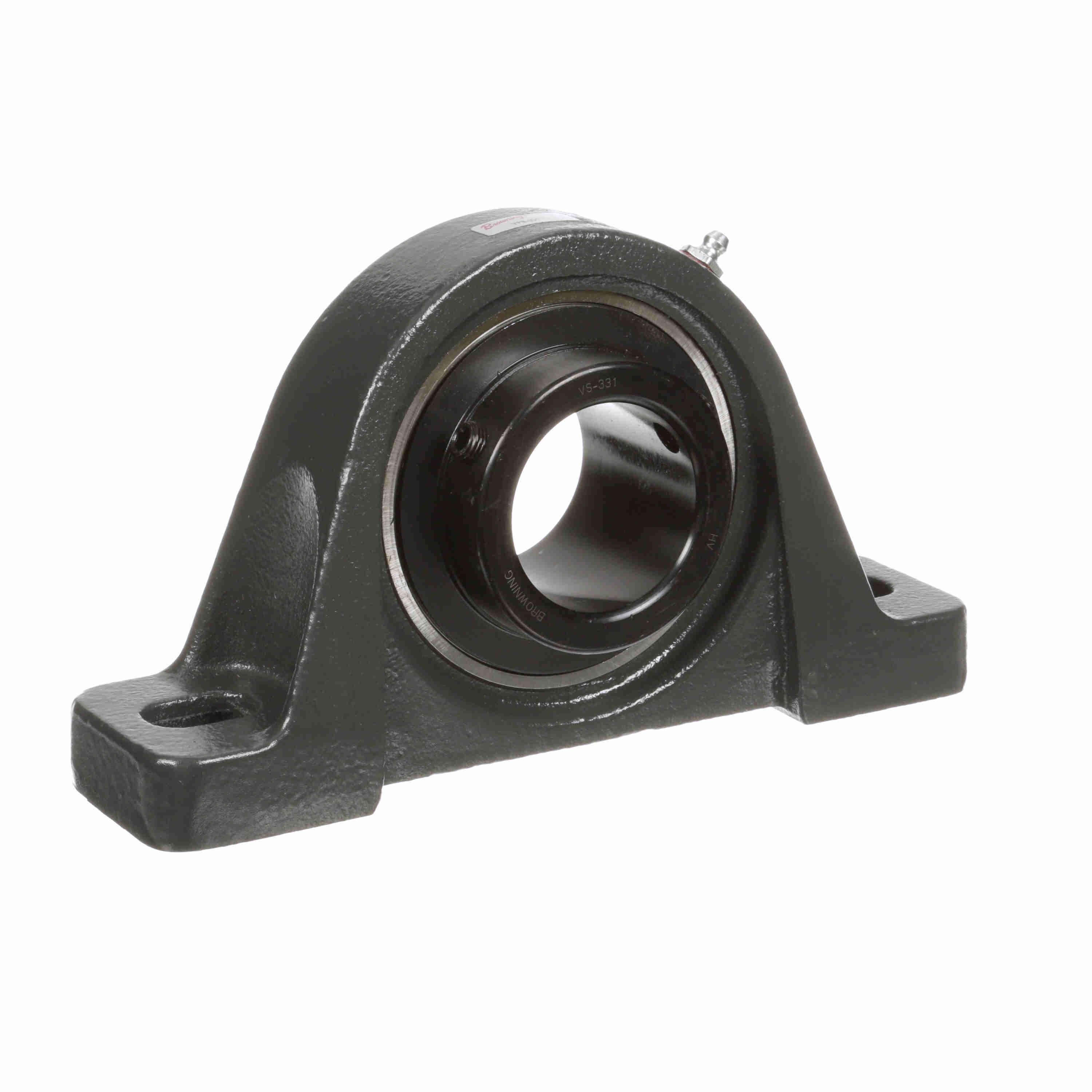

BROWNING 767507 VPS-331 Ball Bearing, 1-15/16 in Bore Dia, Gray Painted, Cast Iron, Setscrew, Medium Duty
Item: BD6RRP
Model: 767507
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
1 15/16"
2500 RPM
£346.87/unit
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Actual Bolt Center To Center | 8 4/5" |
|---|---|
| Base To Bore Centerline | 2 1/2" |
| Base To Center Height | 2 1/2" |
| Base Width | 2 5/16" |
| Bolt Center To Center Length | 6 7/16" to 7 7/16" |
| Bore Dia. | 1 15/16" |
| Bore Type | Round |
| Color | Gray |
| Dynamic Load Capacity | 7889 lbs. |
| Expansion Type | Non-Expansion |
| Finish | Painted |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Housing Style | 2 Bolt Pillow Block |
| Insert Part Number | VS-331 |
| Inside Dia. | 1 15/16" |
| Length Through Bore | 2.188" |
| Locking Device | Set Screw |
| Material | Cast Iron |
| Max. Speed | 2500 RPM |
|---|---|
| Mounting | Yes |
| Mounting Bolts | 5/8" |
| Mounting Type | 2 Bolt Base |
| No. Of Mounting Holes | 2 |
| Nominal Bolt Center To Center | 8 4/5" |
| Number Of Rows | 1 |
| Other Features | Medium Duty |
| Overall Height | 4 31/32" |
| Overall Length | 8 13/16" |
| Product Type | Medium Duty |
| Relubricatable | Yes |
| Rolling Element | Ball Bearing |
| Seal Type | Single Lip Contact With Flinger |
| Series | VPS 300 Series |
| Static Load Capacity | 5216 lbs. |
| System Of Measurement | Imperial |
| Temp. Rating | -20°F to +200°F |
Product Details
Mounted Ball Bearing
Shipping Information
| height | 7.11 |
|---|---|
| length | 26.16 |
| width | 13.97 |
| country of origin | MX |
|---|---|
| weight | 4.023000 |
Related Products
| Style | Model | Bore Dia. | Overall Length | Overall Height | Housing Material | Max. Speed | Base Width | Mounting Type | Bolt Center To Center Length | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 765811 | 1 7/16" | 6 3/4" | 3 11/16" | Cast Iron | 4000 RPM | 1 3/4" | 2 Bolt Base | 4 9/16" to 5 7/16" | 169.47 | |
| B | 765813 | 1 15/16" | 8" | 4 9/16" | Cast Iron | 3000 RPM | 2 3/16" | 2 Bolt Base | 5 23/32" to 6 21/32" | 249.18 | |
| C | 765476 | 1" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt Base | 3 23/32" to 4 17/32" | 121.62 | |
| D | 767625 | 1" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt Base | 3 23/32" to 4 17/32" | 121.62 | |
| E | 765899 | 2 3/16" | 8 13/16" | 4 31/32" | Cast Iron | 2500 RPM | 2 5/16" | 2 Bolt Base | 6 7/16" to 7 7/16" | 227.50 | |
| F | 765829 | 1 11/16" | 7 3/8" | 4 1/4" | Cast Iron | 3000 RPM | 2" | 2 Bolt Base | 5 13/64" to 6 7/64" | 223.22 | |
| G | 766038 | 7/8" | 5 1/2" | 2 13/16" | Cast Iron | 5500 RPM | 1 13/32" | 2 Bolt High Base | 3 23/32" to 4 17/32" | 149.58 |
